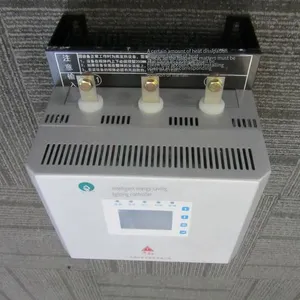

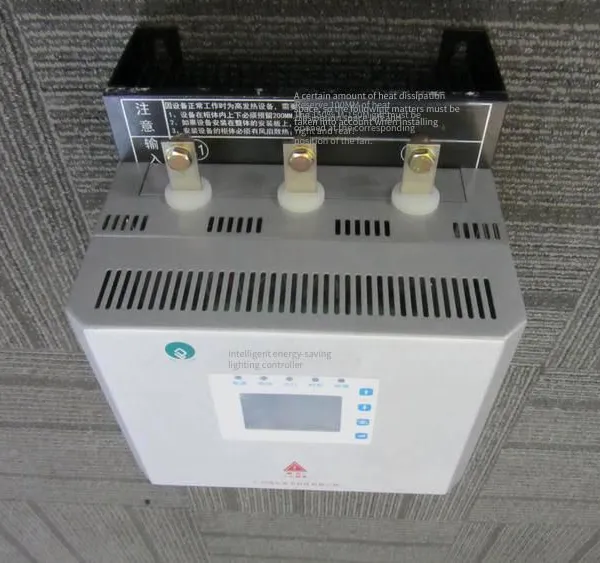

Help CenterRemote Control Device for Factory Street Lights in Jinzhou, Energy-saving, Voltage-reducing and Flow-throttling, Aix-2c-100, Aix-2c-60
Related Products
-
Thlxd-zm-50a, Thlxd-zm-120a Tunnel Lighting Energy Saver, Intelligent Street Lamp Voltage Regulation and Energy Saving DeviceUS$ 153.54 - 153.69MOQ: 1 Unit -
Street Lamp Energy-saving Voltage Regulation Device, Remote Monitoring and Control Terminal System Shdy-bz-60, Shdy-bz-50US$ 152.31 - 153.69MOQ: 1 Piece
-
Voltage-stabilizing, Energy-saving, Regulation and Monitoring System Sl-3-80 Sl-3-150 National Road Street Light Energy Saver, Light Control With Longitude and LatitudeUS$ 1538.46 - 1596.92MOQ: 1 Piece
-
Intelligent Lighting Control Scheme for Sewage Treatment Plant Sjdz-0.38-100a/3, Sjdz-zm-0.38-60US$ 153.54 - 153.69MOQ: 1 Piece
-
Hospital Street Light Energy Saver, Voltage Reduction, Voltage Stabilization and Dimming, Aix - 2c - 30, Aix - 2c - 50 Remote Time ControlUS$ 146.15 - 153.69MOQ: 1 Unit
The energy-saving, voltage-reducing and throttling remote control device for street lights in Jinzhou Factory, AIX-2C-100 and AIX-2C-60, uses power electronics technology to achieve high-frequency chopper voltage regulation. It can intelligently provide a dynamically adjustable voltage within the range of 0V - input voltage for the lighting system. At the same time, it has the advantages of stepless adjustment, no flash interruption during the adjustment process, and a pure sine output voltage. It is suitable for both new and old light sources, extends the service life of light sources, optimizes the use of the power grid, and achieves the purpose of energy conservation. Judging from the actual usage situation, the energy-saving, voltage-reducing and throttling remote control device for street lights, AIX-2C-100 and AIX-2C-60, can save more than 30% of electricity for public lighting fixtures such as HID, fluorescent lamps, and incandescent lamps.
Rated working current of the street light remote control device: (Ampere): AIX-2C-20, AIX-2C-30, AIX-2C-35, AIX-2C-40, AIX-2C-45, AIX-2C-50, AIX-2C-55, AIX-2C-60, AIX-2C-80, AIX-2C-100, AIX-2C-120, AIX-2C-150, AIX-2C-160, AIX-2C-180, AIX-2C-200, AIX-2C-250
Instructions for the manual setting operation steps of the LCD screen of the street light remote control device
Press and hold the confirmation button. The screen will display "----". Release the button, and then press the confirmation button again. The screen will display "F1". Press the plus or minus buttons until the screen displays "F2". Press the confirmation button to enter the function setting.
The screen displays "CH". Press the confirmation button once. The screen will display "oFF" or "on". You can select to turn on this function "on" or turn off this function "oFF" by using the plus or minus buttons or the confirmation button.
Press the back button. The screen displays "-CH-", indicating that the function is turned on. At this time, you can select the setting by pressing the plus or minus buttons. For example, if it shows 1, the screen displays "C-01". Press the confirmation button to enter the setting. The screen displays "L01-" or "L01". A "-" behind indicates that the channel is open, and the channel indicator light will also light up accordingly. Press the confirmation button to set the channel to turn on or off. Press the plus or minus buttons to select the channel to be set. Among them, "C-41" corresponds to all channels off, "C-42" corresponds to all channels on, "C-43" corresponds to pause, and "C-44" corresponds to mute.
This function can be selected through the global settings of the computer, and the relay channel parameters set in the machine can be directly called.
Technical features of the street lamp remote control device:
The low current value of the device is pre - set in the program before leaving the factory. For devices of 100A and above, the starting current is 10A, and the automatic low current is 5A; for devices below 100A, the starting current is 10%, and the automatic low current is half of the starting current.
Fully automatic voltage limiting and power saving, voltage stabilizing characteristics;
Easy to install, basically maintenance - free. There is no need to change the power distribution line. Just connect it in series to the original circuit, and the power saver will automatically save power after being put into operation.
Bypass start: Supply full voltage for a certain period of time during startup, and automatically enter the power - saving operation state after ensuring the normal use of the lamps; Soft start: Under the condition of ensuring the normal use of the lamps, reach the starting current through the starting voltage, thereby extending the service life of the lamps. Automatically enter the power - saving state after startup, and the startup time is adjustable.
The device has an automatic memory function, which can store the device fault code and the operation data 10 minutes before the fault occurs.
Energy - saving, voltage - reducing and throttling of the street lamp remote control device in Jinzhou Factory, product parameters of AIX - 2C - 100 and AIX - 2C - 60
Serial number Item Parameter
1 Input rated voltage ~380V＋10%, －5%
2 Harmonic pollution None
3 Temperature -20℃～45℃
4 Storage temperature -40℃～60℃
5 Relative humidity
6 Altitude
7 Insulation class Class E
8 Heat dissipation Fan cooling
9 Fan voltage 220V
10 Protection class IP30 (Indoor)/IP54 (Outdoor)
Knowledge about the illumination intensity of street lamp remote control devices for street lighting
Considering comprehensively the recommended average illumination value in the industry's "Urban Road Lighting Design" (CJJ45 - 201*) should not be lower than 20Lx, and the illumination uniformity should not be lower than 0.4.
Level Road type Ⅰ Expressways and arterial roads Road surface brightness Average brightness Total uniformity L (cd/degree Uo) Minimum value 1.5/2.0 0.4 Longitudinal uniformity Ul Road surface illumination Average illumination E Uniformity Ue Minimum value 0.4 Glare limit ratio Threshold SRT1 (%) Minimum value Maximum initial value 10 0.5 Minimum value (Lx) Maintenance value 0.7 20/30 Ⅱ Ⅲ Secondary arterial roads and branch roads 0.75 0.5/0.75 0.4 0.4 0.5 - 10/15 8/10 0.35 0.3 10 15 0.5 - 3. "Urban Road Lighting Design" (CJJ45 - 201*) on the classification of road lighting power density and the values in Liaoyuan City.
Road level: Expressways, arterial roads. Number of lanes (pieces): ≥6,
