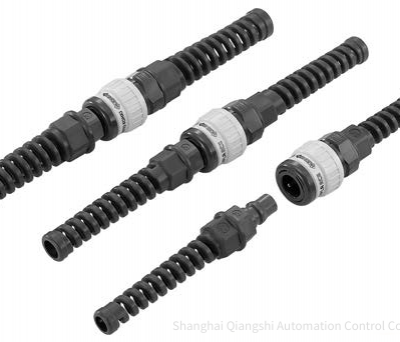

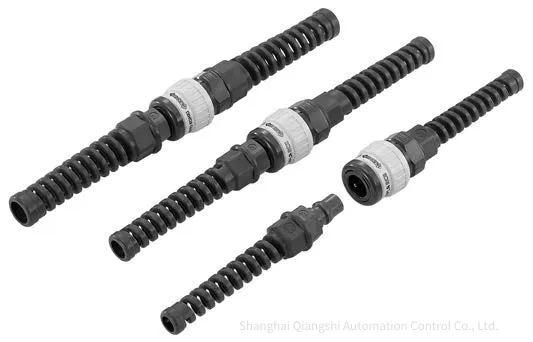

Help CenterJapanese Nitto Quick Connector Female Connector, Polyurethane Air Pipe Connector With Kink Protection Ring ha - 65sng
Related Products
-
Domestic Numax Pneumatic Brake, Air Pressure Normally Open Linear Rail Locking Device Mcp35s, Rail Clamping DeviceUS$ 244.62 - 260MOQ: 1 Piece -
Domestic Numax Pneumatic Normally Open no Type Clamp Mcp15s Rail Locking Mechanism, Linear Rail Clamping ClampUS$ 187.69 - 203.08MOQ: 1 Piece
-
35 Normally Closed Rail Lock With Mounting Plate, Domestic Numax Ventilated Clamping Type Brake Mcps35anUS$ 261.54 - 276.92MOQ: 1 Piece
-
Japan Toyox Braided Tube, Steel Conduit Connector Tc3 - S15 R3/4, Connector for Semiconductor Manufacturing EquipmentUS$ 81.54 - 84.62MOQ: 1 Piece
-
Toyox Polyester Threaded Pipe, Imported Knurled Pipe, Air Hose Ry-19x27US$ 6 - 7.54MOQ: 10 Meters

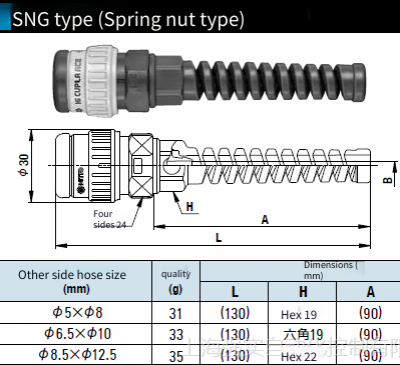

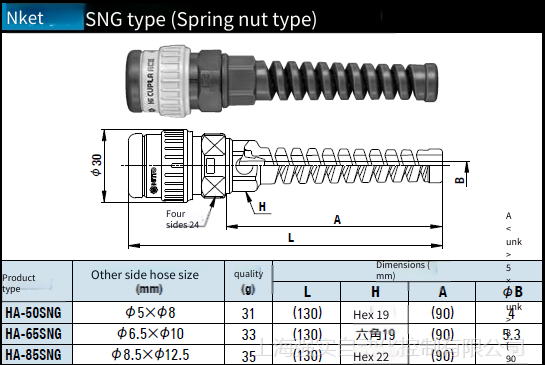

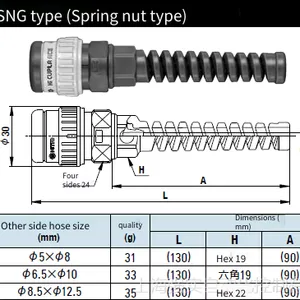

Japanese nitto female quick connector, polyurethane air pipe connector, with kink protection ring HA-65SNG, and installation dimensions:
HA-50SNG (connects φ5*φ8 air pipes)
HA-65SNG (connects φ6.5*φ10 air pipes)
HA-85SNG (connects φ8.5*φ12.5 air pipes)
Japanese nitto female quick connector, polyurethane air pipe connector, with kink protection ring HA-65SNG, specification description:
Main body material: engineering plastics (PBT, POM);
Suitable specifications: R1/4, R3/8, G1/4, G3/8 threads; 1/4, 3/8 hoses; φ5*8; φ6*9; φ6.5*10; φ8*12; φ8.5*12.5 hoses;
Permissible working pressure: 1.5MPa;
Working temperature range: -20 to +60 degrees;
Japanese nitto female quick connector, polyurethane air pipe connector, with kink protection ring HA-65SNG, product features:
It weighs only 1/4 of metal products. One-touch connection ensures smooth piping.
The automatic locking of the collar highlights safety.
1. It has the same pressure resistance as metal products.
2. It has a built-in "automatic locking function". The collar locks when connecting to prevent accidental disconnection.
3. The plug and socket can be connected with a one-touch press.
4. It weighs only 1/4 of metal materials, so it is easy to operate.
5. It is suitable not only for air flow but also for water flow.
6. The fluid can flow in both directions from the plug side and the socket side.
7. There are also types with hoses available.
Nitto quick connector socket with kink ring HA-50SNG, imported NITTO KOHKI female quick connector, supplier introduction:
Shanghai Qiangshi Automation Control Co., Ltd. is the Chinese general agent of NUMAX pneumatic pipe connectors. The main products include: NUMAX air source connectors, PU pipes, PA12 nylon pipes, Teflon high-temperature resistant air pipes, double-layer flame-retardant pipes, polyurethane spring pipes; nylon compression fittings, stainless steel double compression fittings, copper quick-connect fittings, etc. In 2007, it signed an agreement with Kate HTPM in Jiangmen, Guangdong, and is responsible for the sales, service, and channel management of HTPM guide rails and sliders in East China.
In 2014, to meet the different needs of customers, our company reached a cooperation intention with Japanese SMC, NITTO KOHKI, NITTA MOORE, and Swedish CEJN to help customers purchase related products of the above brands.
Welcome friends to follow Shanghai Qiangshi Automation Control Co., Ltd. We will serve you wholeheartedly!
