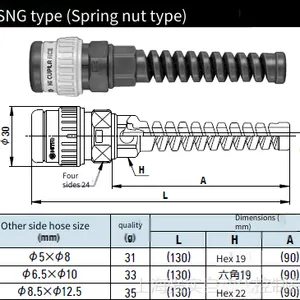

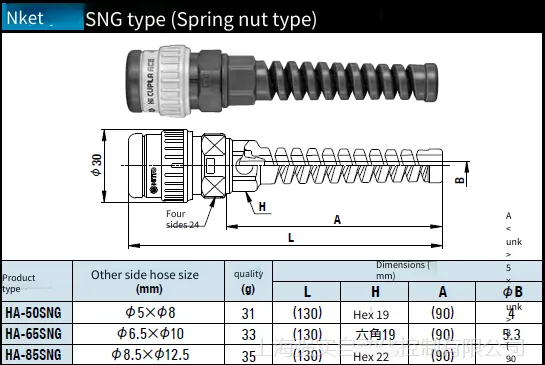

Spring-loaded nut joint HA-85SNG, imported Japanese NITTO quick connector, and installation dimensions:
HA-50SNG (connects φ5*φ8 air tubes)
HA-65SNG (connects φ6.5*φ10 air tubes)
HA-85SNG (connects φ8.5*φ12.5 air tubes)
Spring-loaded nut joint HA-85SNG, imported Japanese NITTO quick connector, specification description:
Main body material: Engineering plastics (PBT, POM);
Suitable specifications: R1/4, R3/8, G1/4, G3/8 threads; 1/4, 3/8 hoses; φ5*8; φ6*9; φ6.5*10; φ8*12; φ8.5*12.5 hoses;
Allowable working pressure: 1.5MPa;
Working temperature range: -20 to +60 degrees;
Spring-loaded nut joint HA-85SNG, imported Japanese NITTO quick connector, product features:
It weighs only 1/4 of metal products and has One-touch connection, so the piping is smooth.
The automatic locking of the collar highlights safety.
1. It has the same pressure resistance as metal products.
2. It has a built-in "automatic locking function". The collar locks when connected to prevent accidental disconnection.
3. The plug and sleeve can be connected with One-Touch by simply pressing them in.
4. It weighs only 1/4 of metal materials, so it is easy to operate.
5. It is suitable not only for air flow but also for water flow.
6. The fluid can flow in both directions from the plug side and the sleeve side.
7. There are also types with hoses.
Spring-loaded nut joint HA-85SNG, imported Japanese NITTO quick connector, supplier introduction:
Shanghai Qiangshi Automation Control Co., Ltd. is the Chinese general agent of NUMAX pneumatic pipe joints. The main products include: NUMAX air source joints, PU pipes, PA12 nylon pipes, Teflon high-temperature resistant air tubes, double-layer flame-retardant pipes, polyurethane spring pipes; nylon ferrule joints, stainless steel double ferrule joints, copper quick-connect joints, etc. In 2007, it signed an agreement with Kate HTPM in Jiangmen, Guangdong, and is responsible for the sales, service and channel management of HTPM guide rail sliders in the East China region.
In 2014, in order to meet the different needs of customers, our company reached a cooperation intention with Japanese SMC, NITTO KOHKI, NITTA MOORE, and Swedish CEJN to help customers purchase relevant products of the above brands.
Welcome friends to pay attention to Shanghai Qiangshi Automation Control Co., Ltd. We will serve you wholeheartedly!
