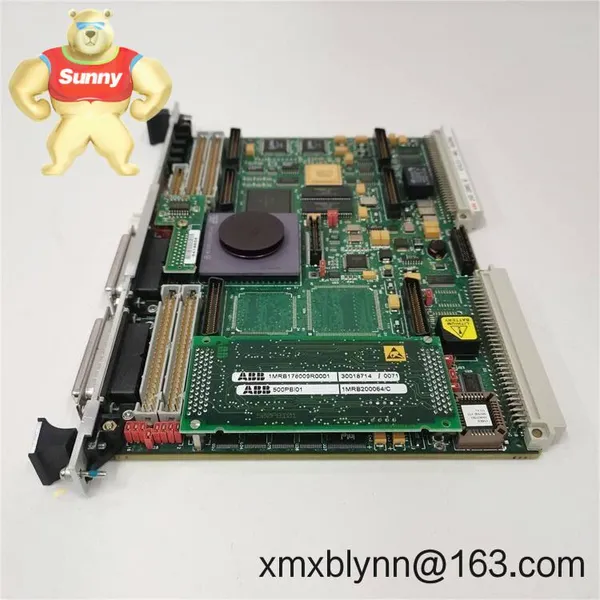

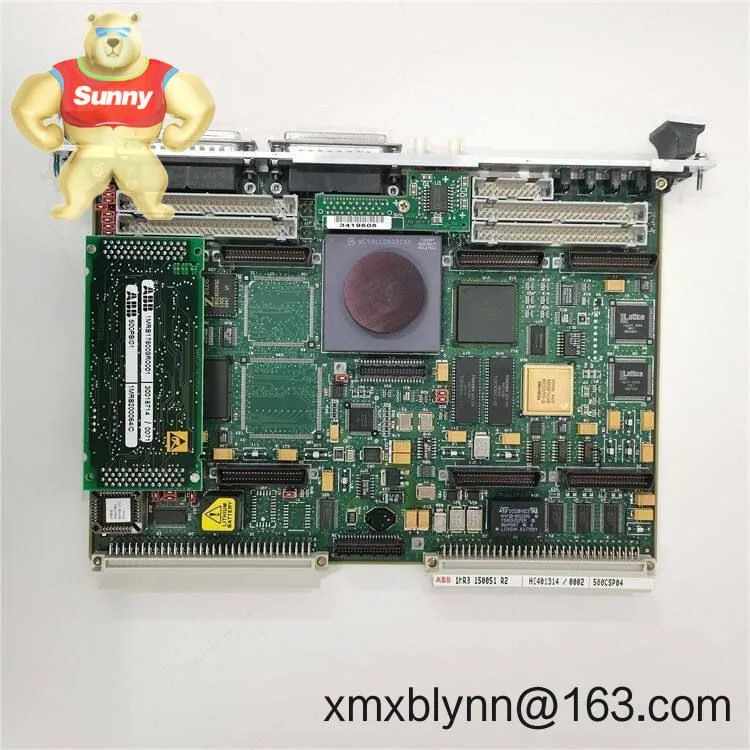

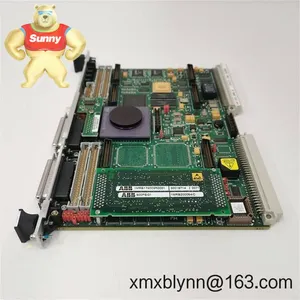

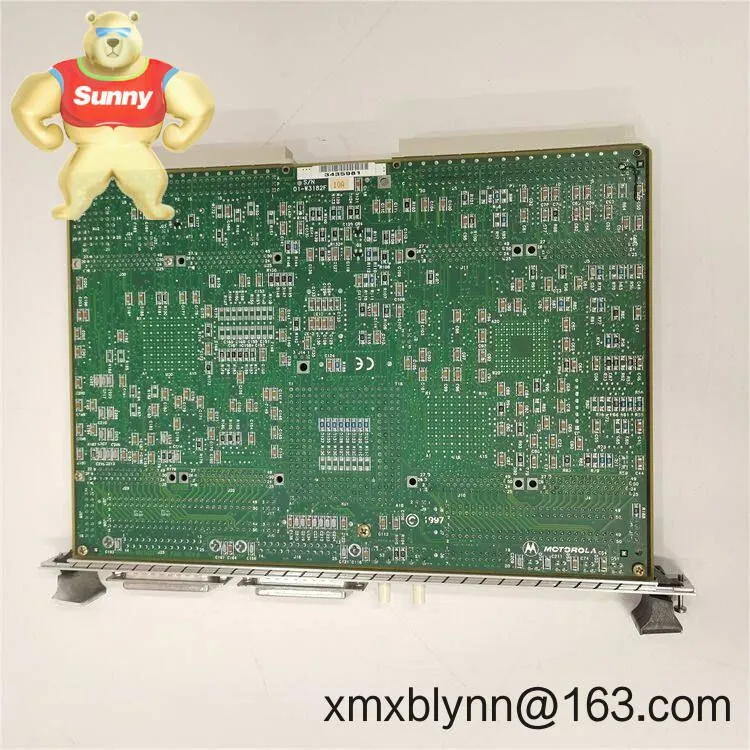

The ABB 500CSP04 HE401314/0002 is commonly deployed as a communication/serial processor module within ABB 500‑series DCS/PLC architectures, extending serial connectivity to legacy and smart devices on the plant floor. From my experience, it slots in as a reliable bridge for RS‑232/RS‑485 links, typically used to connect drives, analyzers, panel meters, or third‑party skids without a major controls rework. If you’re maintaining installed ABB 500‑series assets, this unit seems to be a practical drop‑in spare that helps keep brownfield systems talking.
Key FeaturesSerial integration, simplified – CSP modules are typically used to add RS‑232/RS‑485 channels for linking drives, instruments, or remote subsystems to the main controller.
Drop‑in form factor – Designed for ABB 500‑series racks/backplanes, making replacement fast and keeping panel rework to a minimum.
Stable firmware behavior – In many cases, field teams prefer the CSP04 family because it behaves predictably with existing configuration files and serial protocols.

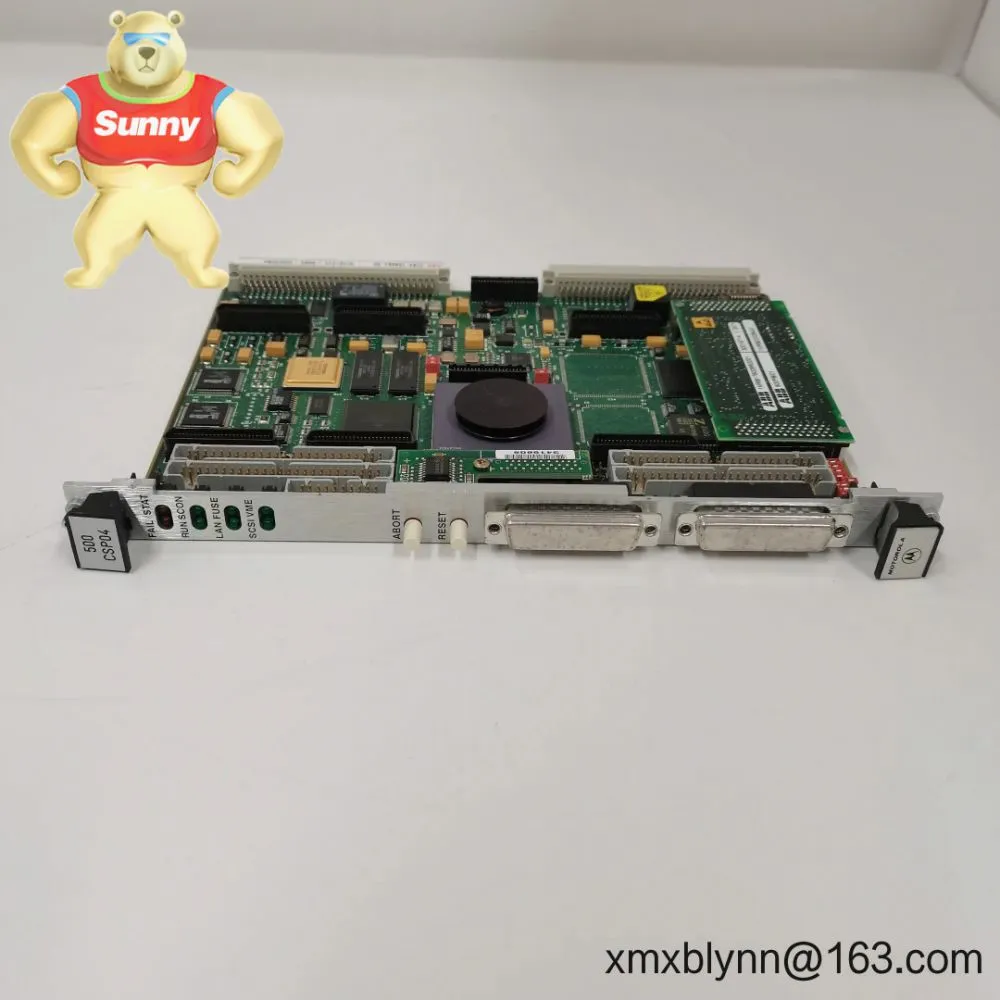

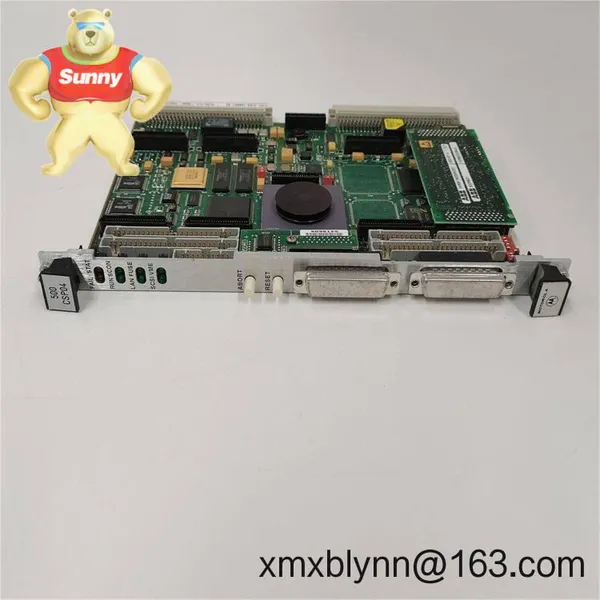

Diagnostics that help – Front‑panel status LEDs and basic port health indicators typically support quicker fault isolation when a line goes quiet.
Industrial temperature range – Built for continuous operation in cabinet environments commonly seen in utilities, water, and process plants.
Long lifecycle support – Suitable as a maintenance spare to reduce downtime risk on mature ABB 500‑series installations.
| Brand / Model | ABB 500CSP04 HE401314/0002 |
| Primary Function | Communication/serial processor module for ABB 500‑series control systems |
| Power Requirements | Supplied via 500‑series backplane (24 VDC nominal typical in these racks) |
| Operating Temperature | Typically 0 to +55 °C (cabinet‑mounted environment) |
| Signal I/O Types | Serial ports for device communications (e.g., RS‑232/RS‑485, protocol per configuration) |
| Communication Interfaces | Serial links to field devices; controller integration via ABB 500‑series backplane |
| Installation Method | Plug‑in module for 500‑series rack/backplane, front‑accessible for service |
You’ll typically see the 500CSP04 used wherever a plant needs robust serial links into a 500‑series controller:
Power generation – turbine auxiliaries, genset controls, and legacy exciters over RS‑485.
Water & wastewater – integrating blowers, VFDs, and standalone analyzers into SCADA.
Oil & gas / chemicals – skid packages, tank gauging, and utility systems with serial instrumentation.
Metals, cement, and mining – drive panels and material handling systems that still rely on serial protocols.
Compatibility – Works within ABB 500‑series infrastructures, reducing integration time and risk.
Downtime reduction – As a ready spare, it helps maintenance teams restore comms quickly after a fault.
Lifecycle protection – Keeps legacy serial devices viable without forcing an immediate controls upgrade.
Total cost control – Extending existing assets is, in many cases, cheaper and faster than replacing entire subsystems.
Serviceability – Clear front‑panel indicators and modular rack installation streamline troubleshooting.
A maintenance lead from a power plant summed it up well: “We swapped the CSP04 in under a shift and had our serial links back without touching the rest of the rack.” That kind of field result is fairly typical when the cabinet wiring and configuration are in good shape.
Installation & MaintenanceCabinet & environment – Install in an enclosed control cabinet with adequate ventilation; avoid high vibration and corrosive atmospheres.
Backplane & seating – Power down the rack (unless your system supports hot‑swap and procedures allow it), align guides, and fully seat the module to ensure reliable backplane contact.
Wiring practices – Use shielded twisted pair for RS‑485, maintain correct polarity and termination (120 Ω at bus ends), and ground shields at one point to minimize noise.
Safety – Follow lockout/tagout, ESD precautions, and verify no live circuits before handling connectors.
Routine upkeep – Periodically check connector tightness, clean dust with dry air, review error logs/LED status, and keep firmware/config backups aligned with site change control.
From my experience, a tidy serial network (proper termination and shield strategy) solves most intermittent comms issues before they start.
Recommended Accessories & Supporting Components24 VDC industrial PSU (ABB CP-E series) – Stable supply for control cabinets; choose capacity based on rack loading.
Shielded RS‑485/RS‑232 cable – Low‑capacitance, twisted pair cabling to improve noise immunity on longer runs.
DIN‑rail surge protection – Protects serial ports from transients in electrically noisy environments.
Labeling and ferrules – Keeps channel assignments traceable; small detail, but it typically speeds up fault finding.
CE compliance; RoHS alignment is common across ABB control modules.
UL/CSA listings may apply depending on market and exact revision.
Typically backed by ABB’s standard manufacturer warranty when sourced through authorized channels.
Note: Specifics (port counts, exact protocol support, and environmental ratings) can vary by hardware revision and system configuration. If you share your installed rack type and firmware baseline, I can align the module variant to match your site standard.
