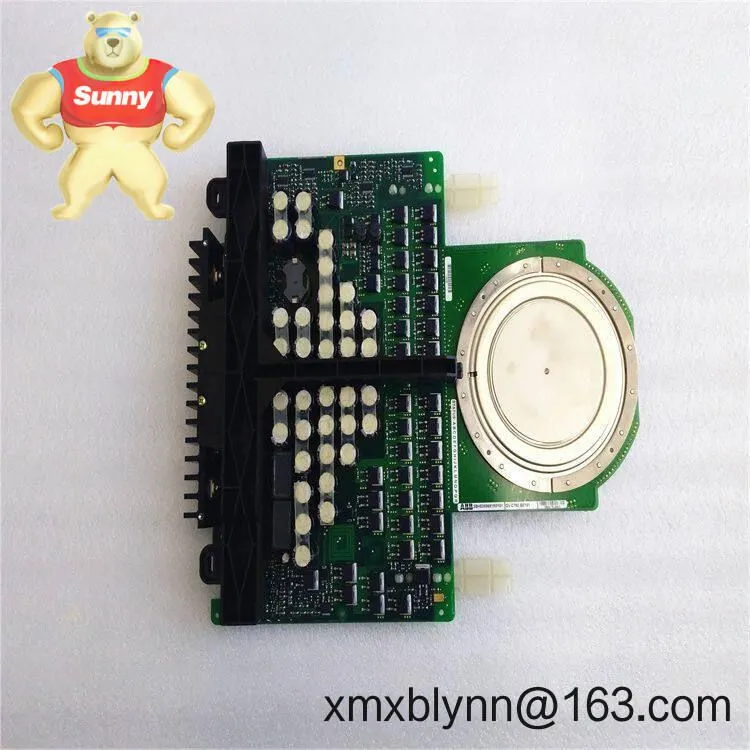

The ABB 5SGY3545L0009 is an OEM gate drive unit board used to trigger and protect high‑power semiconductor stacks—typically IGCT or thyristor assemblies—in ABB drive and converter cabinets. From my experience, this module sits at the heart of reliable firing and fast fault handling, making it a common replacement part in heavy-duty applications where uptime really matters.
It’s most often seen in medium-voltage or high-current systems: rolling mills, marine propulsion, large compressors, and static excitation systems. You might notice that plants keep at least one on the shelf; swapping a tired gate board can bring a converter back online without touching the power stack.
OEM compatibility with ABB converter stacks – Designed as a like‑for‑like replacement for the designated cabinet position, minimizing integration risk.
Reliable gate pulse generation – Provides controlled triggering for high‑power semiconductors; in many cases includes built‑in protection paths and status feedback.
Isolation and noise immunity – The layout and isolation strategy are tuned for high dV/dt environments found in MV drives and rectifier cabinets.
Service‑friendly connectors – Pluggable headers simplify rapid board exchange during a maintenance window.
Diagnostics hooks – Typically offers status/fault indicators or feedback lines to help pinpoint gate circuit issues quickly.
| Brand / Model | ABB 5SGY3545L0009 |
| Product Type | Gate drive unit board (IGCT/thyristor stack firing) |
| Power Requirements | 24 VDC control power (typical for ABB gate units; verify against cabinet label) |
| Signal I/O Types | Gate pulse outputs to power devices; status/fault feedback lines; isolated interfaces as per board revision |
| Communication Interfaces | Dedicated gate/feedback connectors (no fieldbus on board) |
| Installation Method | Panel/cabinet mounting on standoffs or plate; direct replacement in designated slot |
| Operating Environment | Control cabinet environment; typical 0…+55 °C, non‑condensing (follow cabinet specs) |
The 5SGY3545L0009 is suited for high‑demand power conversion where precise triggering and fast protection are critical:
Medium‑voltage variable speed drives and cycloconverters
Large rectifier bridges and DC traction supplies
Static excitation systems for generators
High‑power industrial processes: metals, mining, cement, marine
Lower downtime – A direct replacement board lets maintenance teams restore gating performance without disturbing the power stack, which saves hours.
Proven reliability – These boards are engineered for high dV/dt noise and thermal drift, which in many cases is what prevents nuisance trips under heavy load.
Lifecycle support – Staying with the OEM part keeps firmware/board revisions aligned with your cabinet’s documentation and test procedures.
Compatibility – Connector layouts and mounting match the original slot, so no rework on harnesses.
Installation environment – Mount in a closed control cabinet with adequate ventilation; maintain clearance to busbars and high‑voltage terminals to avoid coupling.
Wiring – De‑energize and lock out control power; observe ESD precautions. Route gate and feedback cables away from high‑current conductors. Reseat all pluggable connectors firmly.
Commissioning – After replacement, perform gate test routines recommended for your drive/converter. Verify fault feedback and interlocks before enabling power.
Routine care – Inspect connectors annually, check for discoloration or swollen capacitors, and clean dust with dry air. Firmware/config items (if applicable) should match cabinet records.
Manufactured under ISO 9001 quality system
CE conformity for EMC and LVD when installed in compliant cabinets
RoHS compliant design in most regions
Supplied with standard ABB warranty terms for spare parts
One thing I appreciate is how swapping a worn gate board often clears intermittent firing faults that look like device failures. In many cases, we’ve seen a simple board change resolve phase imbalance alarms under heavy load.
“We replaced 5SGY3545L0009 during a planned stop; the converter’s nuisance trips vanished, and we avoided opening the power stack.” — Maintenance Lead, hot strip mill
Common Supporting Components24 VDC control power supply module (regulated, low ripple)
Gate/feedback harnesses specific to the cabinet slot
Noise‑suppression ferrites and earth bonding hardware
Spare semiconductor stack snubber components if inspection suggests wear
