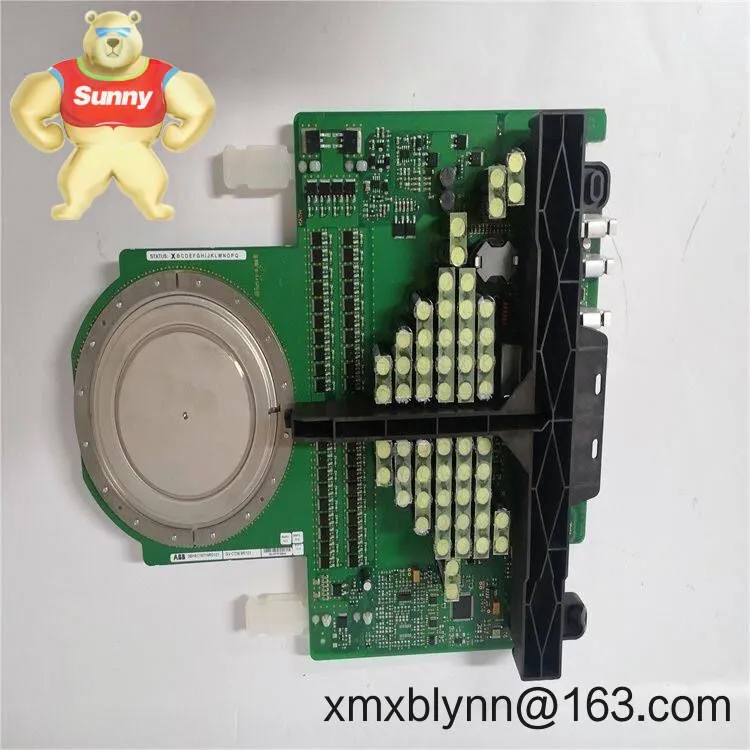

The ABB 5SGY3545L0017 is an IGCT (Integrated Gate‑Commutated Thyristor) designed for demanding, high-current, medium‑voltage power conversion. It combines the low conduction loss of a thyristor with fast, hard‑driven turn‑off via a dedicated gate unit, which in many cases translates to cooler heat sinks and higher efficiency at the system level. From my experience, it’s a go‑to device for traction, large drives, and FACTS equipment where uptime and predictable switching behavior matter.
Press‑pack reliability – Metal-ceramic, pressure‑contact package for uniform current sharing and robust thermal cycling.
Hard‑driven gate control – Low switching losses and tight turn‑off behavior when paired with the correct ABB gate unit.
Low on‑state losses – Typically helps reduce converter conduction losses compared with IGBT stacks at similar power levels.
High SOA and ruggedness – Suited to medium‑voltage, high‑current duty with demanding di/dt; often used where fault tolerance is critical.
Serviceable, clamp‑mount design – Facilitates fast replacement and consistent thermal contact when the right clamping force is applied.
Gate unit ecosystem – Works with ABB’s matched IGCT gate units, easing integration and lifecycle support.
System‑level flexibility – Compatible with air or liquid‑cooled heat sinks and common MV cabinet layouts.
| Brand / Model | ABB 5SGY3545L0017 IGCT |
| Device Type | Press‑pack IGCT (Integrated Gate‑Commutated Thyristor) |
| Power Requirements | Driven by dedicated gate unit; low‑voltage supply is provided to the gate unit (device itself has no standalone supply) |
| Signal I/O Types | Main anode/cathode power terminals; integrated gate ring connection to the matched gate unit |
| Communication Interfaces | None on the device; in many systems the gate unit is fiber‑optic triggered |
| Installation Method | Press‑pack clamping between heat sinks; maintain specified clamping force and planarity |
| Cooling | Air or liquid‑cooled heat sink, depending on converter design |
| Dimensions & Weight | Press‑pack form factor (consult ABB datasheet for exact outline and mass) |
| Operating Temperature | Device ratings are application‑dependent; check the specific datasheet for permitted junction and case temperatures |
| Typical Use Voltage Class | Medium‑voltage converters (3.3 kV–6.6 kV systems are common; confirm exact blocking rating for this variant) |
You might notice that the 5SGY3545L0017 appears most often in heavy‑duty, continuous‑operation gear. Typical deployments include:
Medium‑voltage drives for mining, cement, metals rolling, and oil & gas compressors.
Traction converters for locomotives and metro rolling stock where thermal cycling is severe.
FACTS equipment (e.g., SVC/STATCOM) and reactive power systems needing high reliability.
Wind turbine and large test‑bench converters where efficiency and serviceability matter.
HV grid converters and industrial UPS front‑ends using MV topologies.
Predictable lifecycle – Press‑pack devices typically fail short, enabling straightforward redundancy strategies in MV stacks.
Lower system losses – The IGCT’s low on‑state and controlled turn‑off can reduce heat sink size or fan speed, saving OPEX.
Integration continuity – Pairs with ABB gate units, which reduces engineering time and compatibility risks.
Supply assurance – Stable, long‑running product family with documented application notes and tools.
Feedback from a traction OEM we support: swapping to an ABB IGCT in this class cut snubber stress and brought heat‑sink temps down a few degrees at the same duty cycle. Not a lab miracle, just steady, practical gains.
Installation & MaintenanceCabinet & mounting – Use a rigid, planarity‑checked heat‑sink stack. Apply the clamping force specified in the ABB datasheet using a calibrated tool; uneven pressure hurts lifetime.
Thermal interface – Clean contact surfaces; apply a thin, even layer of approved thermal compound. Re‑inspect after initial thermal cycles.
Wiring & layout – Keep gate loop inductance extremely low. Route power and gate paths to minimize stray inductance and common‑mode noise.
Gate unit pairing – Use the matched ABB IGCT gate unit for 5SGY3545L0017. Drive conditions (current, dv/dt management) are set by the gate unit.
Cooling – Ensure adequate airflow or coolant flow; avoid fouling by dust or oil mist. Periodically clean fins/plates to maintain thermal margins.
Safety – Observe MV creepage/clearance, lockout/tagout, and discharge snubbers before handling. The device is clamped under load—release force carefully.
Routine checks – Re‑torque clamps at scheduled outages, perform thermal imaging under load, verify gate signals and gate unit health, and keep gate unit firmware/configuration up to date where applicable.
Manufactured under ISO 9001 quality systems; environmental management typically ISO 14001 at ABB sites.
RoHS‑compliant component. CE/UL marking generally not applicable to discrete semiconductors by themselves.
Warranty: typically covered by manufacturer’s limited warranty (terms can vary by region and application).
If you’re qualifying 5SGY3545L0017 against an installed base, share your gate unit type and converter topology. We can check pairing, suggest snubber values, and confirm clamping hardware that usually works best for this IGCT size.
