Help CenterABB 500PSM02 AD-272.100.20-01 AZ:C – Backplane Power Supply Module for Process Automation Racks
Related Products
-
ABB 500SCM01 (1MRB150004R0001) – Serial Communication Module for SattCon 500 PLC SystemsNegotiableMOQ: 1 Combo -
ABB 560PSU02 (1KGT011900R0001) – Industrial Rack Power Supply for ABB Control SystemsNegotiableMOQ: 1 Combo
-
ABB 5SGX1060H0003 IGCT – High‑Power Integrated Gate-Commutated Thyristor for Medium-Voltage Drives and Power ConvertersNegotiableMOQ: 1 Combo
-
ABB 5SGX10H6004 – High‑power GTO Press-pack for Medium‑voltage Drives, Traction and Grid ConvertersNegotiableMOQ: 1 Combo
-
ABB 5SGY3545L0017 IGCT – High‑power Press‑pack Switch for Medium‑voltage Drives and ConvertersNegotiableMOQ: 1 Combo

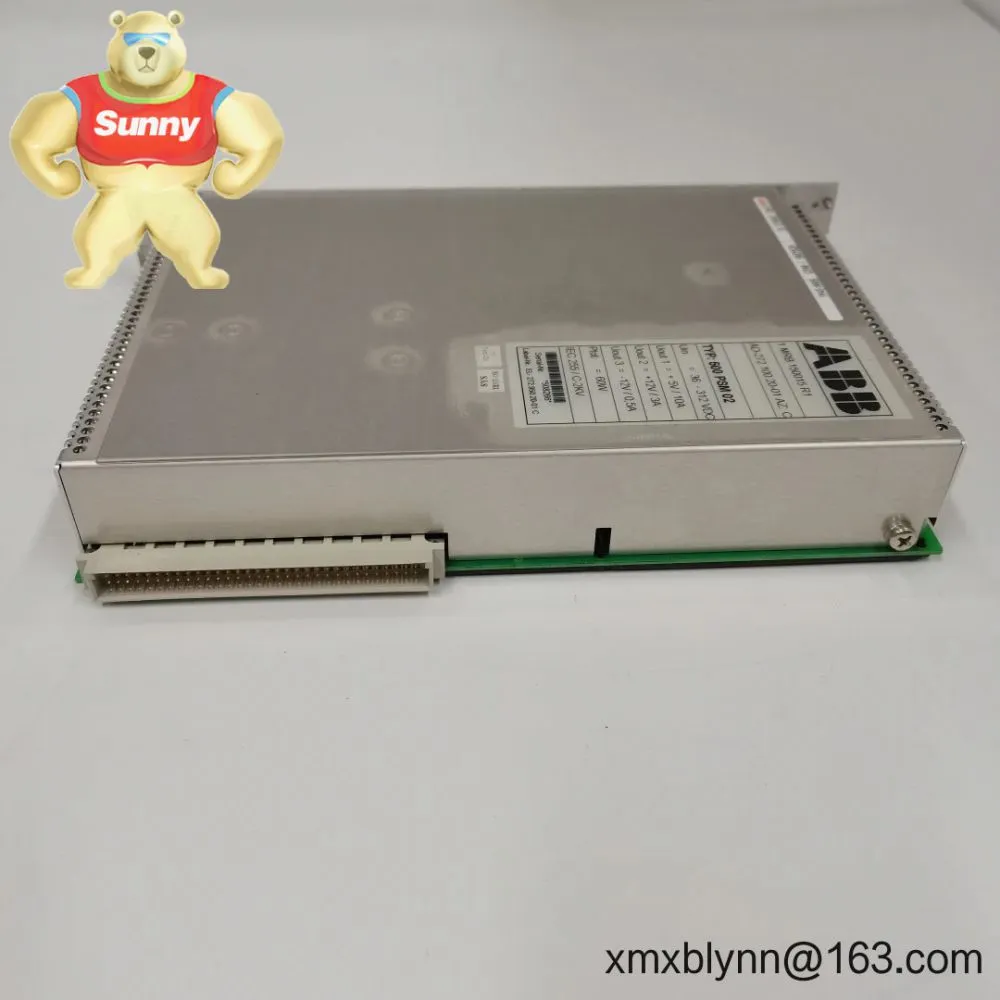

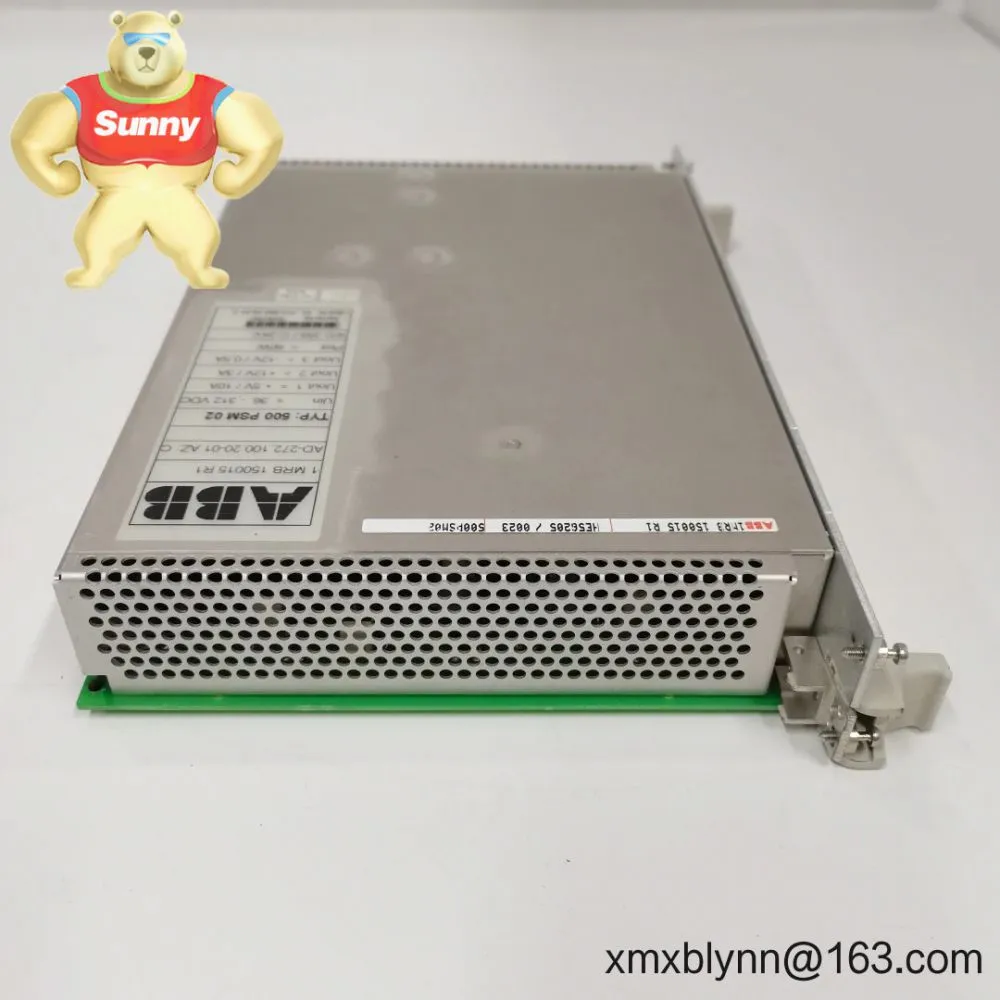

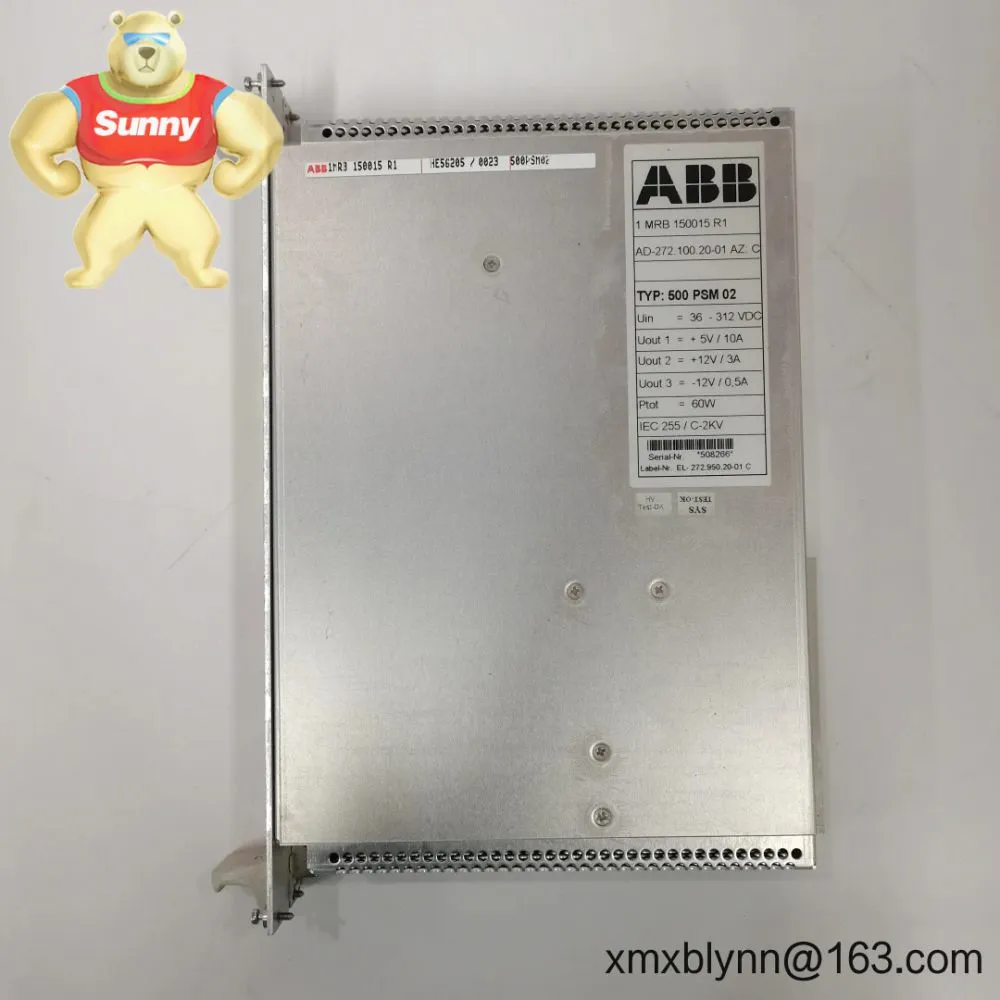

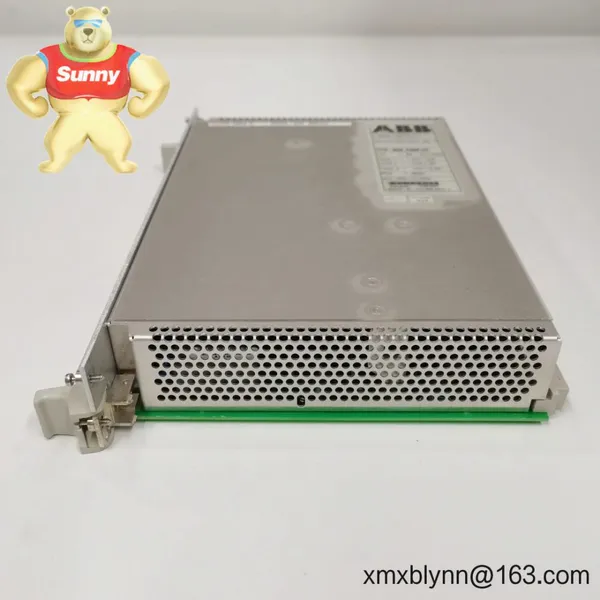

The ABB 500PSM02 (AD-272.100.20-01, revision AZ:C) is a rack-mounted power supply module designed to feed stable DC rails to ABB controller and I/O backplanes. It’s typically used as a direct replacement part in installed ABB DCS/PLC systems to extend lifecycle, stabilize backplane power, and reduce nuisance resets.
From my experience, this module is a safe choice for plants standardizing on ABB hardware where uptime matters—cement, chemicals, paper, and power generation in particular often keep these as spares. You might notice that it’s engineered for straightforward swap-outs with minimal rework inside the cabinet.
Backplane power stabilization – Supplies regulated DC rails to the rack, supporting controllers and mixed I/O loads without voltage sag during transients.
AC mains compatibility – Typically supports 100–240 VAC, 50/60 Hz input ranges common in global plants; reduces the need for external converters.
Redundancy-ready architecture – In many cases, systems can run dual supplies for load sharing or failover to boost availability.

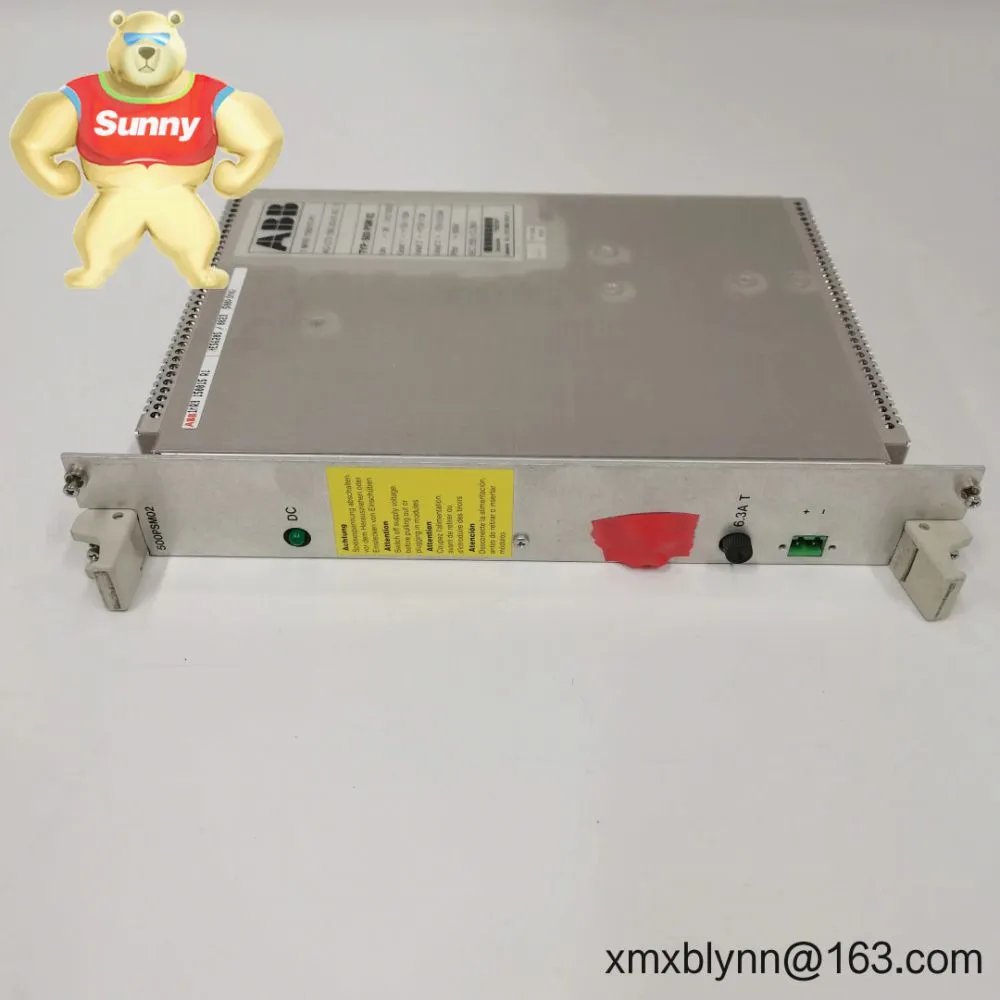

Clear status indication – Front-panel LEDs for quick health checks; helps techs pinpoint issues faster during shift rounds.
Field-replaceable module – Designed as a plug-in unit for compatible ABB racks, so changeovers are quick and low-risk.
Revision matched – Build code AD-272.100.20-01 with AZ:C hardware revision for proper fit and function in matching systems.
| Brand / Model | ABB 500PSM02 (AD-272.100.20-01, Rev AZ:C) |
| Function | Rack-mounted power supply for ABB controller/I-O backplanes |
| Power Requirements | AC mains input, typically 100–240 VAC, 50/60 Hz |
| Backplane Outputs | Regulated DC rails for logic and analog loads (commonly +5 V and ±15 V in this series) |
| Operating Temperature | Typically 0 to +55 °C (cabinet dependent) |
| Signal I/O | Power rails to backplane; front LEDs; fault/alarm contact in some builds |
| Communication Interfaces | None (power module) |
| Installation Method | Plug-in module for compatible ABB 500‑series rack/backplane |
Plants running ABB-based DCS/PLC platforms where stable backplane power is non‑negotiable. Typical environments include:
Power generation and utilities – to support controller racks in turbine, boiler, and BOP areas.
Pulp & paper – long runs with high I/O count where rail stability matters.
Cement & mining – harsh conditions, frequent voltage dips; redundancy is often used.
Chemicals & petrochem – continuous process units where any rack reset is costly.
One maintenance lead at a sugar mill told us it slotted straight in and cleaned up intermittent rack resets that were plaguing batch changeovers. That seems to be a common story when older supplies start drifting.
Advantages & ValueDrop‑in replacement – Keeps wiring and mechanical layout intact; fewer surprises during turnaround windows.
Uptime oriented – Supports redundancy in many cabinets, reducing single‑point failures.
Lifecycle extension – Practical path to maintain legacy ABB systems without a costly rip‑and‑replace.
Serviceability – Front-panel indicators and accessible fusing simplify troubleshooting.
Procurement clarity – Exact build code (AD-272.100.20-01 AZ:C) helps match installed base and avoid compatibility issues.
Cabinet environment – Install in a clean, ventilated enclosure (typically IEC/NEMA cabinet). Keep ambient within spec and allow airflow around the module.
Wiring & protection – Use dedicated AC feed with proper overcurrent protection and earth bonding. Verify polarity and backplane connectors are fully seated.
Redundancy setup – If using dual supplies, confirm load sharing or OR-ing arrangements per the rack manual; test switchover under load.
ESD & safety – De-energize before insertion/removal unless your specific rack supports live replacement; follow lockout/tagout for mains.
Routine checks – Quarterly dust removal, visual inspection of connectors, and verification of backplane rails under load. No user firmware in most cases, so focus on electrical health.
Typically shipped with CE compliance for industrial use; UL/CSA recognition is common on ABB rack power modules.
RoHS conformity where applicable for the production year and region.
Standard manufacturer warranty often 12 months from shipment; extended coverage may be available on request.
Note: Exact ratings can vary by system rack and revision. If you share your installed rack type and nearby module part numbers, I can confirm power input, rail outputs, and redundancy options specific to your setup.
