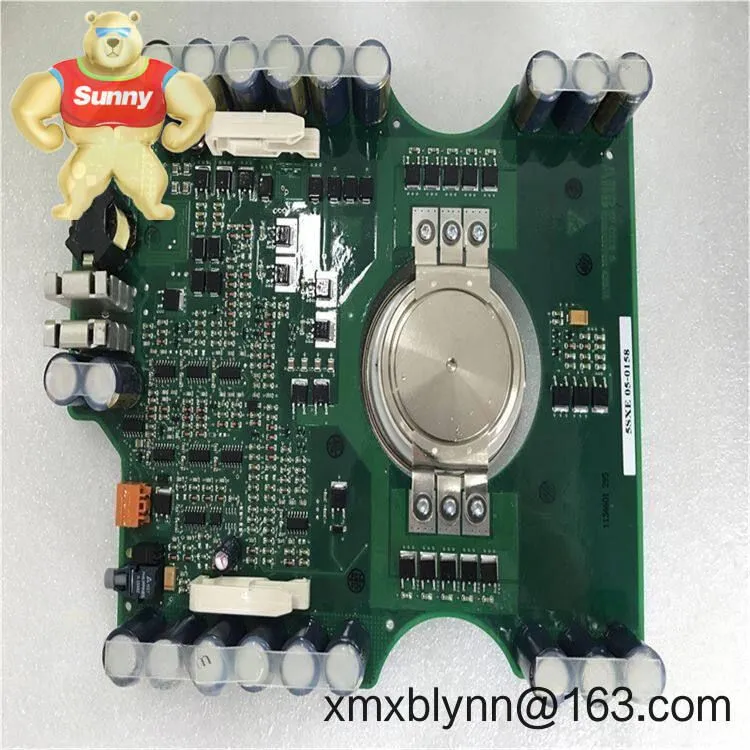

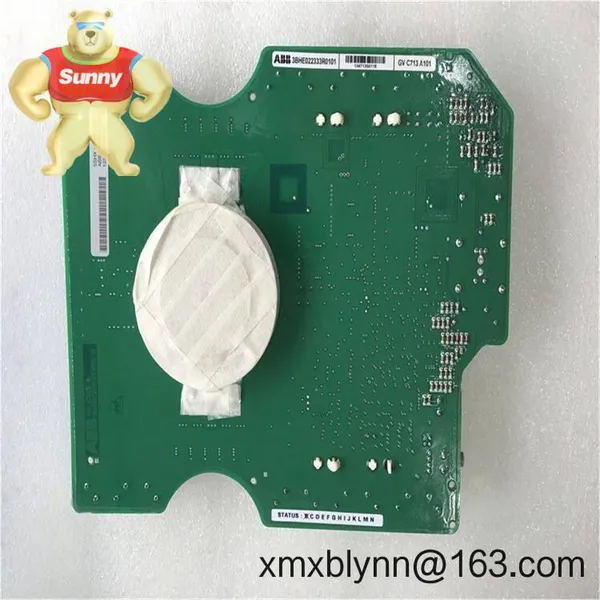

The ABB 5SGX10H6004 is a gate turn-off (GTO) thyristor in a press‑pack (disc) package, engineered for reliable switching in demanding high‑power applications. It’s typically selected for legacy system life‑extension and robust new builds where proven press‑pack behavior and predictable short‑circuit response matter. From my experience, it fits well in traction propulsion converters, cycloconverters, and utility reactive power equipment where 4.5–6 kV class devices are standard.
One thing I appreciate is how ABB’s 5SGX series balances ruggedness with consistent gate characteristics, which reduces tuning time on the gate unit. You might notice that installation is straightforward if you already manage press‑pack stacks—proper clamping, clean contact surfaces, and you’re on track.
- High-power GTO thyristor, press‑pack construction
- Disc device designed for clamp mounting; excellent thermal cycling and mechanical robustness in stacked assemblies.
- Medium-voltage blocking capability (typically 4.5–6 kV class)
- Suitable for MV drives, traction inverters, and static VAr compensators where higher blocking ratings are required.
- Gate turn-on/turn-off with high-current pulses
- Requires a compatible GTO driver delivering positive turn‑on and strong negative turn‑off pulses for reliable commutation.
- Proven ABB wafer and processing control
- In many cases, tighter parameter spread helps reduce per‑stack matching effort and simplifies service stocking.
- Predictable press-pack failure mode
- Press‑pack devices tend to fail short, which can simplify protection coordination compared to some module types.
- Drop‑in retrofit potential for existing 5SGX‑based stacks
- Common footprint concepts and gate behavior typically ease replacement in mature fleets with minimal redesign.
| Parameter | Details |
|---|---|
| Brand / Model | ABB 5SGX10H6004 |
| Device Type | Gate Turn-Off (GTO) Thyristor, press‑pack disc |
| Blocking Voltage Class | Typically 4.5–6 kV class (verify exact rating per ABB datasheet) |
| Power Requirements | N/A (semiconductor device); requires compatible GTO gate driver with high-current turn‑on/turn‑off pulses |
| Signal Input / Output | Main terminals: Anode–Cathode; Control: Gate–Cathode |
| Communication Interfaces | None (power semiconductor component) |
| Operating Temperature | Junction: typically −40 to +125 °C (application dependent) |
| Dimensions & Weight | Press‑pack disc form factor; commonly 100–125 mm class. Refer to ABB outline for exact size/weight. |
| Installation Method | Clamp‑mount between heat sinks with specified force; integrate snubber/protection network as per design |
- Traction propulsion converters (DC link and cycloconverter topologies)
- Medium‑voltage AC drives for mining, cement, steel, and marine propulsion
- Static VAr Compensators (SVC) and legacy STATCOM infrastructures
- High‑power DC choppers and crowbar circuits
- Heavy‑duty UPS/industrial power conditioning where press‑pack reliability is valued
“We swapped 5SGX10H6004 devices into a service trainset converter. Only minor gate driver tweaks were needed and thermal margins actually improved,” — Maintenance manager at a metro depot. It seems to be a common outcome when replacing within the same 5SGX family.
Advantages & Value- Reliability under thermal and mechanical stress
- Press‑pack construction and ABB’s process control help maintain stable on‑state and switching behavior over long duty cycles.
- Retrofit‑friendly for fleets still on GTO technology
- Reduces redesign risk and downtime versus migrating to a new semiconductor platform.
- Predictable spares strategy
- Consistent parametric windows typically simplify stocking and stack matching.
- Cost control
- When lifetime‑extending existing assets, component swap and minor gate unit tuning is usually more economical than a full converter upgrade.
- Mounting and clamping
- Use a calibrated press or clamping frame to achieve the specified force; clean and flat contact surfaces are critical to avoid hot spots.
- Thermal interface
- Apply an approved thermal compound in a thin, uniform layer; verify heat‑sink flatness and roughness per ABB guidance.
- Gate driver setup
- Provide adequate positive turn‑on and negative turn‑off current; check dv/dt and di/dt limits; confirm snubber values during commissioning.
- Panel environment
- Install in a ventilated cabinet with controlled dust and humidity; maintain clearance/creepage suitable for MV potentials.
- Routine checks
- Periodically re‑check clamping force, inspect thermal paths, review gate driver waveforms, and log device temperatures under peak load.
- Service tips
- When replacing single devices in a stack, match key parameters (e.g., on‑state drop, gate characteristics) to maintain current sharing.
- Manufactured under ISO 9001 and ISO 14001 quality systems (typical for ABB semiconductor plants)
- RoHS compliance for restricted substances (component level)
- CE/UL marking is generally not applicable to discrete semiconductors; full outgoing test data is provided by the manufacturer
- Warranty: typically 12 months from shipment when installed and operated within specification
If you’re evaluating the ABB 5SGX10H6004 against other GTO options, I can help cross‑check gate unit compatibility, clamping forces, and snubber tuning so commissioning is smooth on day one.
