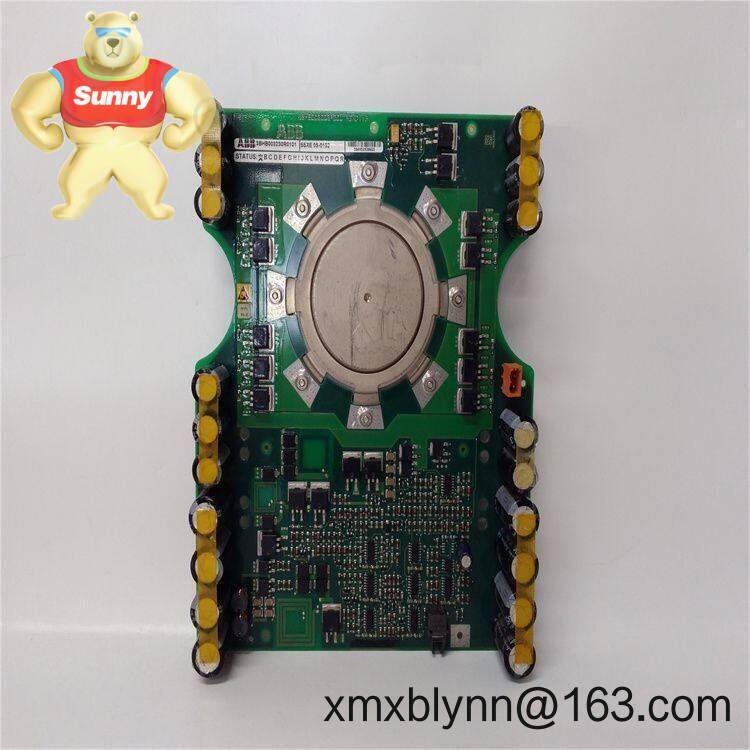

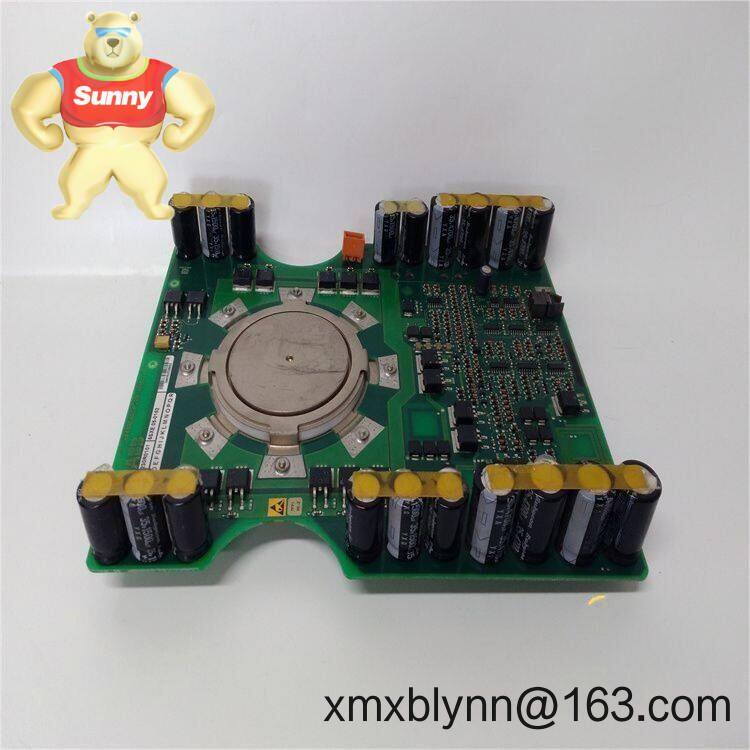

ABB 5SHX04D4502 IGCT Module – High-Power Switching for Demanding Drives

The ABB 5SHX04D4502 is a high-performance Asymmetric IGCT (Integrated Gate-Commutated Thyristor) designed for medium-voltage power conversion systems. It effectively combines the low on-state voltage of a thyristor with the fast, reliable switching capabilities of a transistor. This makes it a fantastic choice for applications like large industrial motor drives and grid-connected converters where efficiency and absolute reliability are non-negotiable. From my experience, these press-pack devices are the real workhorses in heavy industrial settings.

• »            Integrated Gate Unit: One thing I appreciate is that the built-in driver electronics significantly simplify the overall system design. This ensures not only optimized performance but also provides a highly reliable turn-off sequence under all conditions.

• »            Robust Press-Pack Construction: This design eliminates internal wire bonds, which are a common failure point in other module types. The result is superior thermal cycling capability and outstanding mechanical robustness, perfect for harsh environments.


             Low Conduction Losses: You might notice that it operates more efficiently than many comparable solutions. This directly translates to less heat generation, which can reduce the burden on your cooling systems and lower long-term energy costs.


             Hermetic Ceramic Housing: The core semiconductor element is sealed inside a durable ceramic package, protecting it from moisture and contaminants. This seems to be a key factor in its long operational life.



• Technical Specifications

This IGCT is not for your everyday variable frequency drive. It’s specifically engineered for high-power, medium-voltage applications where performance can't be compromised. In many cases, it's the core component in:

• Medium Voltage Drives (MVDs): The primary application, controlling massive AC motors for mills, pumps, and compressors in industries like mining, cement, and oil & gas.

• Renewable Energy Converters: It's well-suited for multi-megawatt wind turbine converters and large-scale solar inverters that interface with the power grid.

• Grid Infrastructure: You'll find these in STATCOMs and other FACTS devices used for improving power quality and stabilizing the electrical grid.

• Industrial Power Supplies: For building high-capacity, reliable rectifiers and uninterruptible power supplies (UPS) for data centers or critical manufacturing processes.



• Advantages & Value

From a procurement and system integration perspective, the value is quite clear. The exceptional reliability of the press-pack design directly leads to less system downtime and fewer unexpected, costly failures. Its high efficiency reduces both direct energy consumption and the secondary costs associated with cooling infrastructure. While the component itself is sophisticated, the integrated gate unit actually helps simplify the surrounding gate drive circuitry compared to older technologies, which can shorten the design cycle for your engineering team.

Proper installation is absolutely critical for these devices. They must be mounted in a stack using a calibrated clamp to apply a very specific mechanical force—typically between 18 and 22 kilonewtons. Both contact surfaces must be perfectly clean and coated with a thin, even layer of thermal compound. It's almost always installed between two large, flat heatsinks, which are often liquid-cooled in these power ranges.

In terms of safety, remember this is a high-voltage component. All power must be fully disconnected and residual energy discharged before any handling. Routine maintenance usually involves visual inspections of the cooling system and periodically verifying that the clamping mechanism maintains the correct pressure. The IGCT itself is a sealed unit and requires no internal servicing.

ABB components are manufactured under stringent quality control systems, often compliant with ISO 9001. This specific device is generally compliant with major international standards like CE and RoHS. While UL recognition is typically sought for the final assembled drive system, the components are built to meet those requirements. It also comes with a standard manufacturer's warranty that covers any defects in materials and workmanship.
