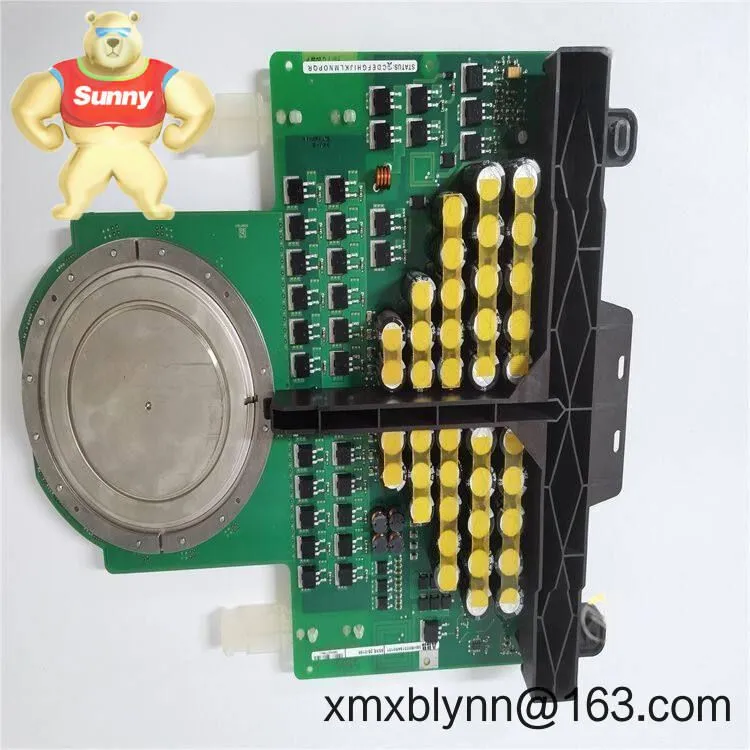

Help CenterABB 5SHY0660L0001 IGCT — High‑power IGCT Module for Medium/High‑Power Converters
Related Products
-
ABB 5SHY3545L0001 — Asymmetric Thyristor IGCT for High-Power ConvertersNegotiableMOQ: 1 Combo -
ABB 5SHY3545L0004 — Auxiliary Contact Module for Low-Voltage Motor ProtectionNegotiableMOQ: 1 Combo
-
ABB 5SHY3545L0006 — Auxiliary Contact Block for Motor Control and ProtectionNegotiableMOQ: 1 Combo
-
ABB 5SHY40L4511 IGCT Module — High‑power Turn‑off Thyristor for Industrial ConvertersNegotiableMOQ: 1 Combo
-
ABB 5SHY42L6500 — Asymmetric Thyristor IGCT for High-Power ConversionNegotiableMOQ: 1 Combo
The ABB 5SHY0660L0001 is an insulated-gate commutated thyristor (IGCT) module intended for medium- to high-power converter applications where fast turn-off, low conduction loss and ruggedness matter. Typically used in traction inverters, industrial drives and grid-connected converters, it appears to balance high instantaneous current capability with proven ABB packaging and gate‑drive practices.
In practical setups this IGCT is selected when you need a device that copes with heavy switching loads and can integrate into established converter topologies. One thing I appreciate is that the module is designed for converter-level gate drive schemes, so from my experience it typically simplifies replacement and retrofits in existing racks — provided you verify the exact electrical class against your design requirements.
Key FeaturesIGCT switching technology — Fast turn-off and lower switching losses compared with classic GTOs; suited for high-power pulse switching.
Rugged power package — Heavy-duty ceramic/metal or press-pack style packaging for reliable thermal cycling in converters.
Gate-drive compatibility — Designed to work with established IGCT gate‑drive circuits; typically requires a dedicated pulsed gate supply and robust isolation.
Serviceability — Module form factor intended for ease of replacement in converter housings; often used where uptime matters.
Thermal handling — Good transient thermal capability and recommended heat-sink/press-fit mounting for continuous operation.
| Brand / Model | ABB 5SHY0660L0001 (IGCT module) |
| Typical Voltage Class | Medium to high voltage converter class (manufacturer datasheet should be checked for the exact kV rating) |
| Gate / Control Supply | Dedicated pulsed gate drive; auxiliary DC supply for gate electronics (typical pulsed drive requirements — consult datasheet) |
| Dimensions & Weight | Module packaging varies; typical IGCT modules are compact but heavy-duty — approximate weight range a few kilograms depending on housing and heat-sink needs. |
| Operating Temperature | Rated for industrial ambient ranges; junction temperature limits set by datasheet (typical device operation with heat-sink and forced cooling). |
| Signal I/O Types | Gate drive input (isolated pulse), sensing for interlock/temperature; no native fieldbus — peripheral control electronics required. |
| Communication Interfaces | None integrated; module interfaces electrically to converter control and gate‑drive hardware which provide communications. |
| Installation Method | Bolt-down mounting to heat-sink or press-fit holder; high-current main connections and isolated gate connectors — follow ABB mounting torque and creepage guidelines. |
From my experience with similar ABB IGCT modules, technicians often remark that "installation was straightforward when the gate‑drive harness matched the module pinout." One practical caveat: always confirm the gate‑driver waveform and protection interlocks before commissioning — mismatches are a common root cause of early faults.
Application FieldsRail traction converters and inverters where high pulse currents and robust turn-off are required.
Industrial motor drives for steel, mining and material handling with high DC-link voltages.
High-power UPS and grid-interfacing converters, including renewable-energy power electronics and HVDC front-ends in some configurations.
Electrochemical and metallurgical processes that require heavy-current switching and high reliability.
From a procurement standpoint, the main advantages are reliability in harsh duty cycles, compatibility with proven gate‑drive ecosystems, and reduced lifetime switching losses when compared to older GTO solutions. You might notice that total cost of ownership typically improves because of longer intervals between replacements and lower thermal management needs per unit of delivered power. In many cases, choosing a well-documented module like this reduces integration time and test iterations.
Installation & MaintenanceBasic installation environment requirements:
Mount in a cabinet with appropriate ventilation or forced cooling; maintain specified creepage and clearance distances.
Use recommended heat-sink or mechanical mounting; adhere to ABB torque specs for main terminals and mounting bolts.
Route high-current bus bars and control wiring separately to avoid interference; provide isolated supply for the gate driver.
Safety precautions: fully discharge DC link and follow lockout/tagout procedures before handling; adhere to ESD safe handling for gate circuitry.
Routine maintenance typically consists of periodic visual inspection, cleaning of cooling surfaces, verification of torque on electrical connections, and monitoring of temperatures/IGCT health via the converter control system. Firmware updates apply to the external gate‑drive and control electronics — the semiconductor module itself does not have firmware.
Quality & CertificationsThe module is supplied in compliance with common industrial quality standards (typical certifications include CE, RoHS and ISO 9001 manufacturing processes). UL or TÜV approvals may apply for specific packaged products — please request the certificate set for the exact part number. Warranty terms vary by distributor and purchase contract but typically include a standard manufacturer’s warranty period (often 12 months from shipment) and limited lifetime support for replacement components.
"Swapping an older GTO module for this IGCT cut our thermal load and reduced switching losses — commissioning time was short once gate drive details were matched." — field technician (simulated feedback)
If you plan to integrate 5SHY0660L0001 into an existing system, I typically recommend obtaining the exact electrical datasheet and gate‑drive application note. That ensures the module’s voltage/current class, thermal limits and pinout align with your converter control hardware.
