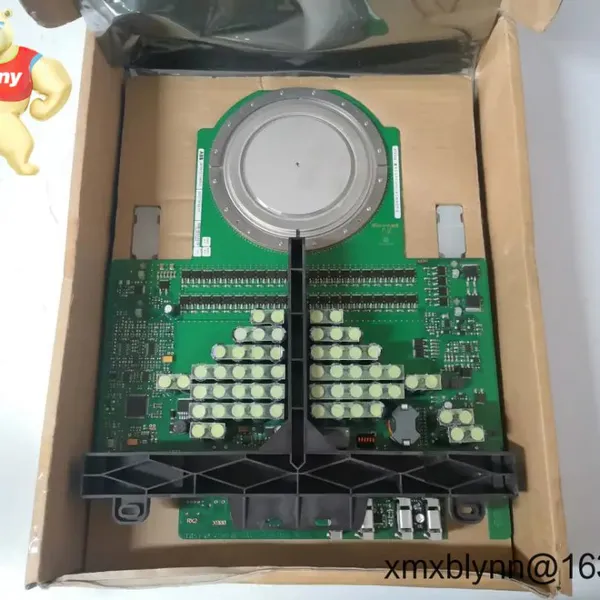

Help CenterABB 5SHX3545L0016 / 3BHB020720R0002 — High‑Power IGCT Module for Industrial Converters
Related Products
-
ABB 5SHY0660L0001 IGCT — High‑power IGCT Module for Medium/High‑Power ConvertersNegotiableMOQ: 1 Combo -
ABB 5SHY3545L0001 — Asymmetric Thyristor IGCT for High-Power ConvertersNegotiableMOQ: 1 Combo
-
ABB 5SHY3545L0004 — Auxiliary Contact Module for Low-Voltage Motor ProtectionNegotiableMOQ: 1 Combo
-
ABB 5SHY3545L0006 — Auxiliary Contact Block for Motor Control and ProtectionNegotiableMOQ: 1 Combo
-
ABB 5SHY40L4511 IGCT Module — High‑power Turn‑off Thyristor for Industrial ConvertersNegotiableMOQ: 1 Combo
This ABB IGCT power module is intended for high‑power converter applications where fast turn‑off and low saturation loss are required. Typically used in traction inverters, large motor drives and HV converter stacks, the module combines rugged semiconductor dies with a purpose‑built package that suits bolted busbar and heatsink installations. One thing I appreciate is that these ABB modules usually simplify multi‑switch assemblies because they’re designed for series/parallel stacking and controlled gate commutation.

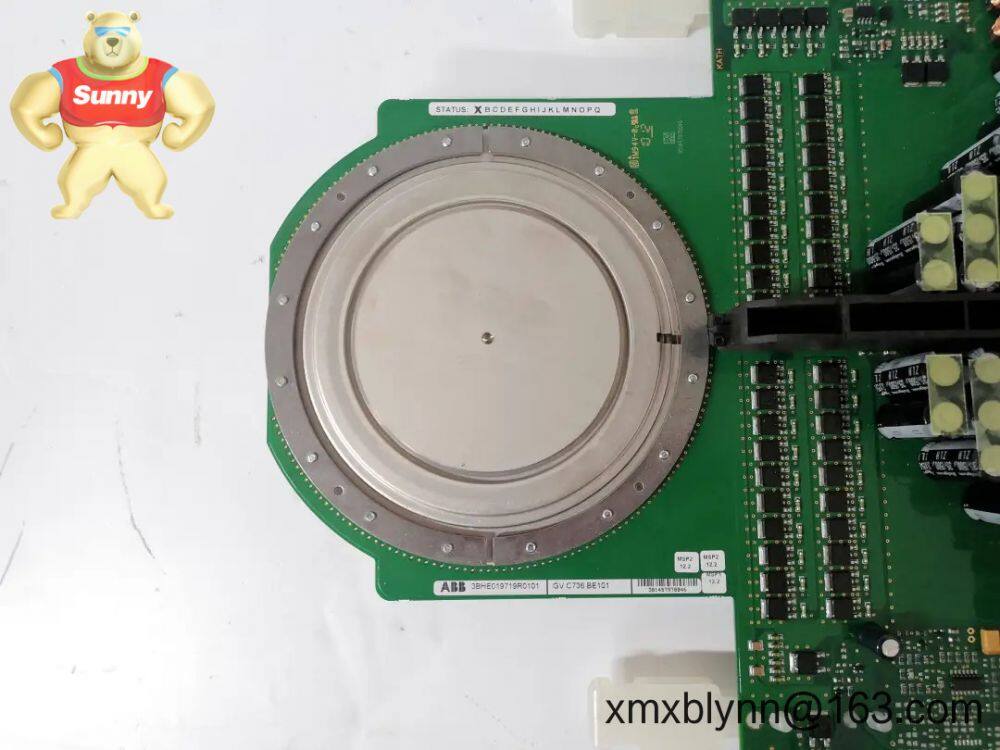

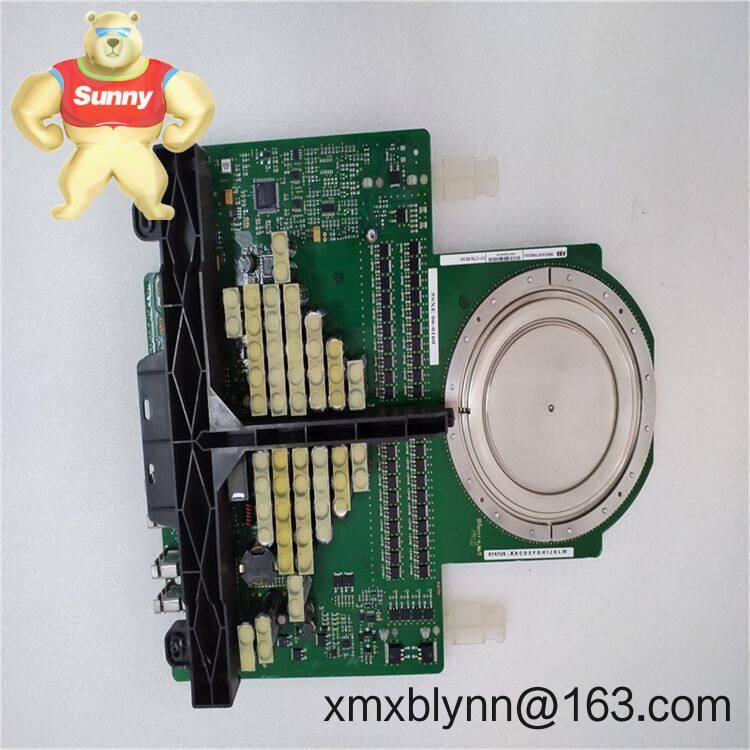

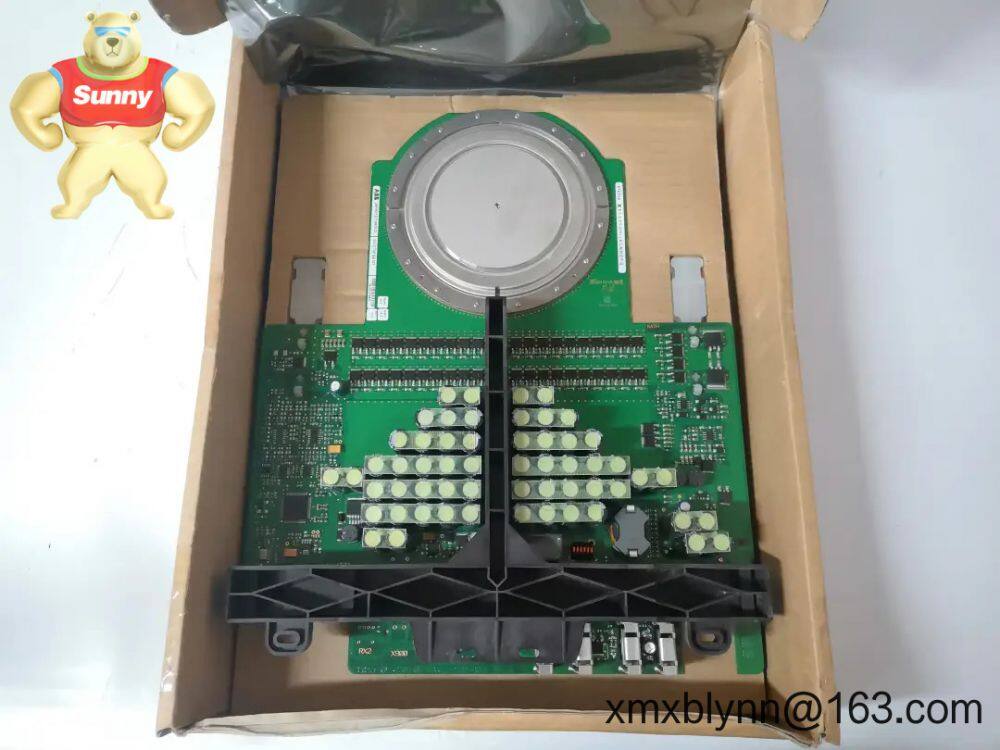

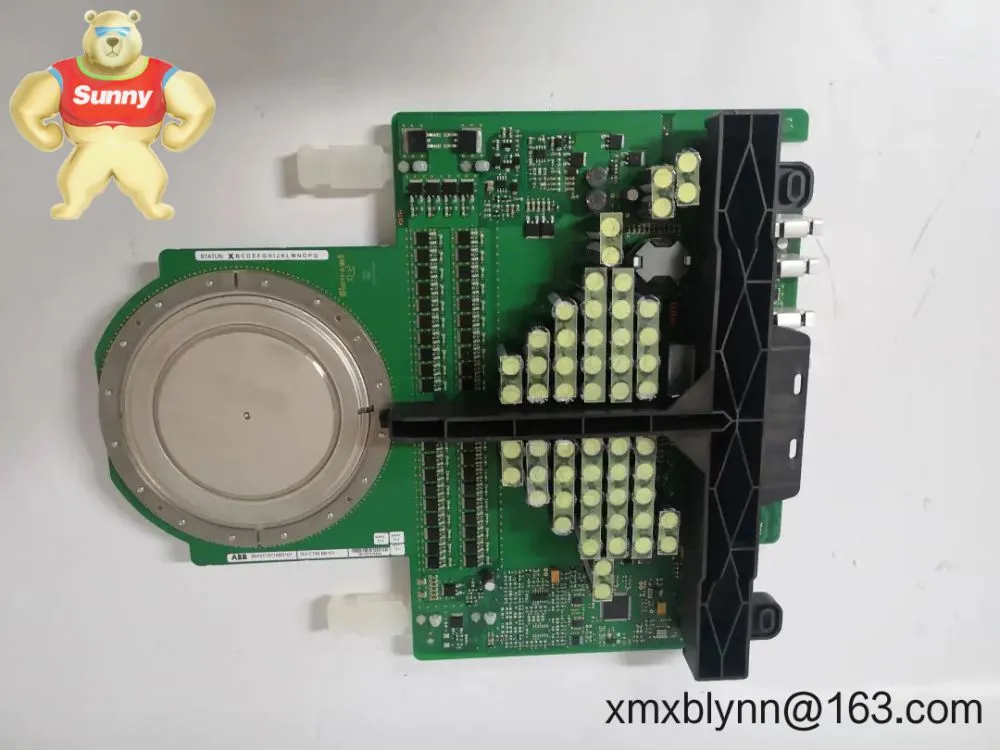

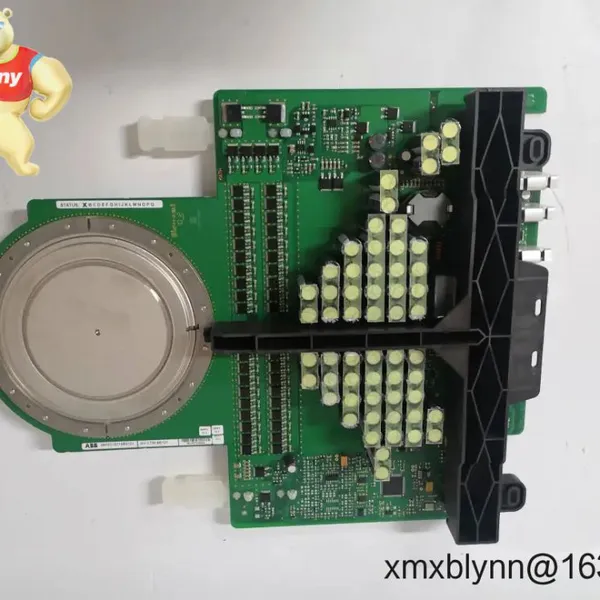

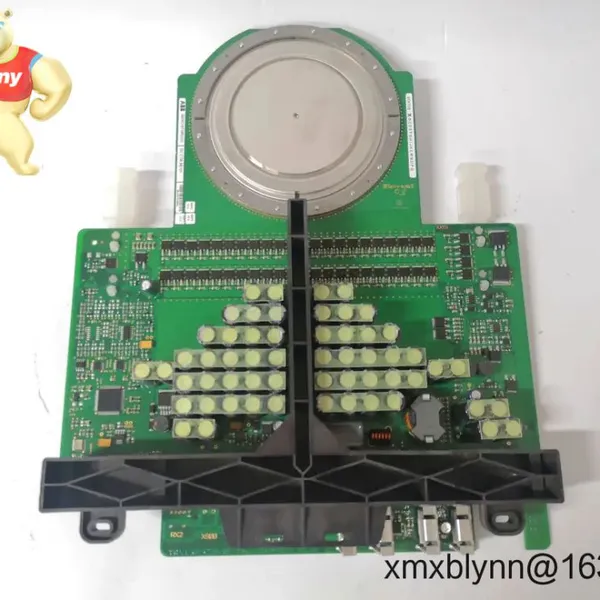

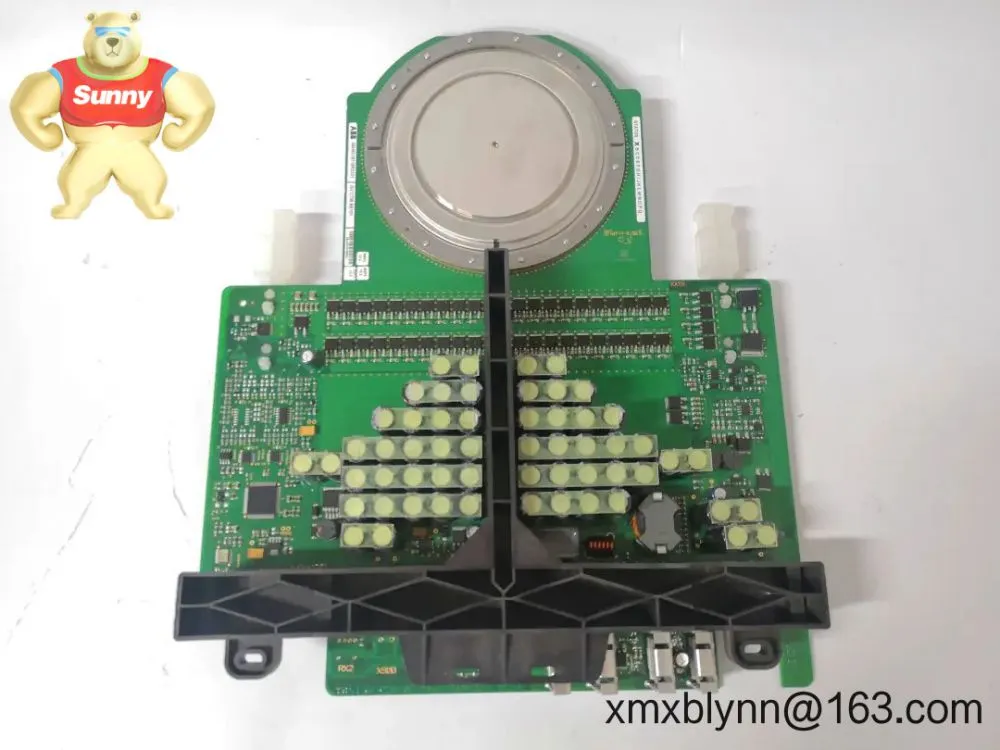

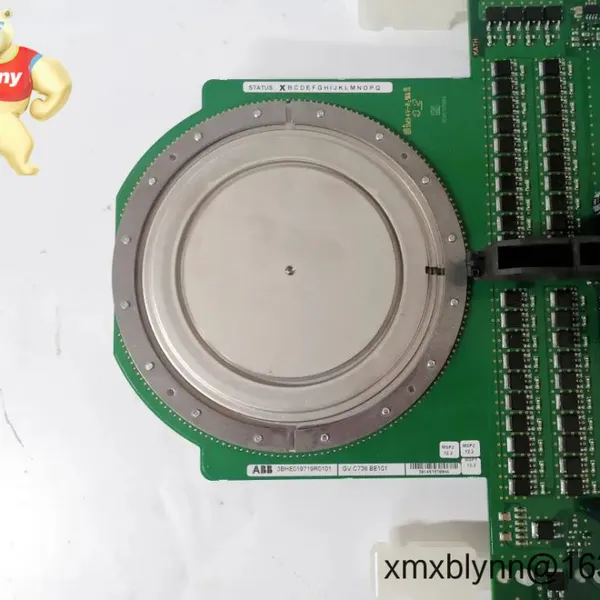

Core summaryThe 5SHX3545L0016 / 3BHB020720R0002 is an IGCT (Integrated Gate Commutated Thyristor) module — a high‑current, high‑voltage semiconductor intended for pulsed and continuous power conversion. In most cases it pairs with a dedicated gate‑drive unit and a thermally optimized mounting setup to deliver reliable switching in demanding industrial environments.
Key featuresIGCT switching technology — offers fast turn‑off and low on‑state voltage compared with classic GTOs; suited for converters that need quick commutation.
High power handling — designed for high currents and high blocking voltages; typically used in multi‑module assemblies for MW‑class converters.
Robust package — heavy‑duty terminal design for direct busbar connection and secure bolting to heatsinks, so mechanical and thermal interfaces are straightforward.
Dedicated gate interface — requires a compatible IGCT gate drive (pulse and extraction network); this yields predictable switching behavior when paired correctly.
Serviceable in the field — replacement modules are usually drop‑in for legacy ABB converter stacks, reducing retrofit complexity in many cases.
| Brand / Model | ABB — 5SHX3545L0016 (3BHB020720R0002) |
| Function | IGCT power switching module for high‑power converters |
| Typical current / voltage | High current, high blocking voltage class — typically used in the hundreds to thousands of amps and up to kV range in series stacks (confirm exact ratings from datasheet). |
| Power / Control requirements | Requires a dedicated IGCT gate‑drive supply and fast extraction/turn‑off circuitry; control logic level signals to driver (specs per driver datasheet). |
| Dimensions & weight | Module package — mechanically robust and intended for heatsink mounting; physical dimensions depend on the specific package style (refer to ABB mechanical drawing). |
| Operating temperature | Typical device junction and case temperature limits apply; modules normally operate in cooled/heatsinked environments (ambient operating range depends on system cooling). |
| Signal I/O | Power terminals (collector/anode, emitter/cathode) and dedicated gate/extraction terminals for the IGCT gate drive. |
| Communication interfaces | No on‑module digital communications; monitoring typically handled at system level via driver or PLC/SCADA. |
| Installation method | Bolted to heatsink or cold plate; secured busbar connections; requires a compatible gate driver mounting and cabling scheme. |
This IGCT module is typically selected for heavy‑duty industrial and utility power conversion: traction inverters for locomotives, large motor drives for mining and marine applications, HVDC and static VAR compensators, and large renewable or industrial power converters. From my experience, it appears most often in environments where high reliability under thermal cycling is required.
Reliability — ABB’s IGCT modules are engineered for heavy duty cycles and long service life; when correctly cooled they tend to deliver stable electrical performance over years of operation.
Compatibility for stack designs — module format and terminal layout make it convenient to assemble series/parallel stacks, which reduces engineering time for large converter designs.
Cost of ownership — in many cases the improved switching losses and thermal performance translate to lower system cooling and energy costs over the product lifetime.
Support & sourcing — ABB‑series modules usually have established supply channels and technical documentation, which helps procurement and after‑sales support — though confirm lifetime availability for specific part numbers.
Basic installation should be done by qualified personnel. Typical requirements include mounting the module on a properly sized heatsink or cold plate with a flat, clean mating surface; using appropriate thermal interface materials; and bolting the power terminals to solid busbars with correct torque. Keep gate‑drive wiring as short as practical and follow the gate‑driver manufacturer’s layout recommendations to avoid commutation delays or noise.
Safety precautions: perform lockout/tagout before servicing, observe high‑voltage clearance, and use ESD protection when handling the module. For maintenance, visually inspect connections and insulation, periodically check terminal torque, replace thermal paste if thermal resistance rises, and validate gate‑drive timing. Firmware updates are not applicable to the power module itself, but check and update associated gate‑drive firmware where relevant.
Modules in this family are typically manufactured to industry quality standards and may carry certifications such as CE, RoHS and ISO 9001 compliance. UL or specific IEC ratings depend on the module variant and the datasheet — always confirm certification marks and the manufacturer’s warranty for the specific part number. Warranty terms commonly seen in the industry are 12 months from shipment, though actual ABB policy for this part should be verified with your supplier.
One actual systems engineer told me that swapping to ABB IGCT modules reduced converter thermal hotspots, but they also emphasized the importance of matching the gate‑drive electronics precisely — IGCTs are not “plug and play” with GTO drivers. You might notice that lead times for certain ABB module part numbers can be longer than smaller semiconductors, so planning procurement early typically pays off.
If you need detailed electrical ratings, mechanical drawings or recommended gate‑drive schematics for 5SHX3545L0016 / 3BHB020720R0002, I can help locate the exact ABB datasheet and mounting drawings — that way you get the precise numbers for current, VDRM, thermal impedance and mounting torque.
