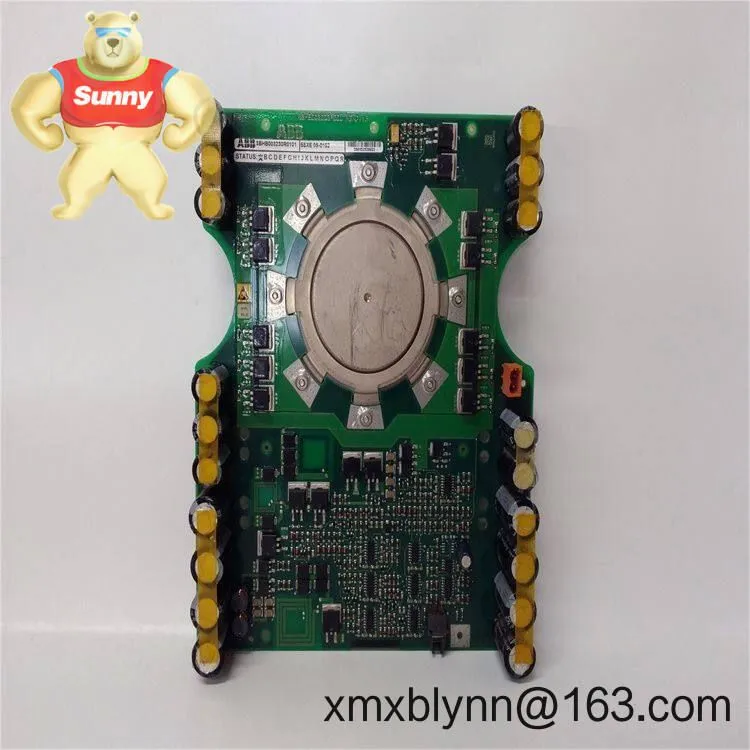

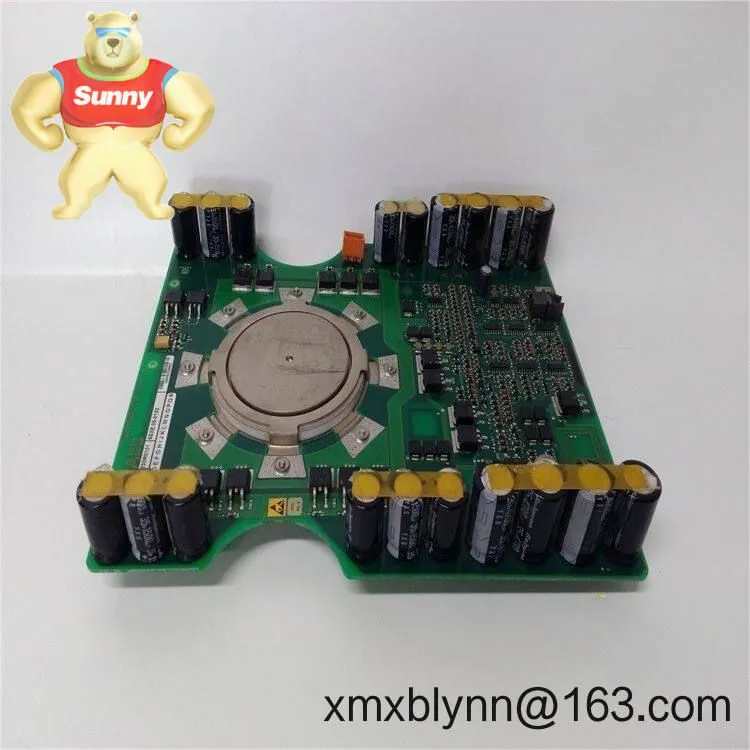

The ABB 5SGY35L4510 is a dedicated IGCT gate unit engineered to operate with the ABB 5SHY 35L4510 press-pack IGCT. In medium-voltage drives and grid converters, it typically provides the high peak gate current, fast turn-off control, and built-in protection needed to keep switching events clean and repeatable. From my experience, it’s chosen as an original spare or drop-in replacement to shorten downtime and maintain OEM performance.
Purpose-built for ABB 5SHY 35L4510 IGCT – Ensures the correct gate drive profile and negative gate bias for reliable turn-off.
High peak gate-drive capability – Delivers the surge gate current IGCTs need for low switching losses and consistent dv/dt control.
Integrated protection functions – Typically includes undervoltage lockout, desaturation/overcurrent detection, and safe turn-off routines.
Fiber‑optic interface – Noise-immune command and status links suited to MV cabinets and long cable runs.
Robust insulation and isolation – Helps maintain creepage/clearance in high-voltage stacks and reduces common-mode issues.
Service-friendly layout – You might notice that connectors, indicators, and mounting points are positioned for quick replacement in the field.
| Brand / Model | ABB 5SGY35L4510 |
| Product Type | IGCT Gate Unit (for press-pack device) |
| Compatible Device | Typically paired with ABB 5SHY 35L4510 IGCT |
| Power Requirements | 24 VDC nominal (industrial control supply); use within ABB-specified limits |
| Signal I/O Types | Fiber‑optic receive/transmit for firing and status; local connectors for enable/fault and sensor inputs (varies by revision) |
| Communication Interfaces | Fiber‑optic links (noise‑immune, galvanically isolated) |
| Operating Temperature | Typically cabinet ambient 0…+50 °C; maintain within manufacturer limits |
| Installation Method | Direct mounting on the IGCT/stack with specified clamp hardware; connections via fiber‑optic and low-voltage harness |
| Dimensions & Weight | Compact gate‑unit footprint for disc IGCT stacks; check the exact revision datasheet for values |
The 5SGY35L4510 shows up in many cases where medium-voltage, high-power switching is needed:
Medium-voltage drives for compressors, pumps, and marine propulsion
FACTS equipment such as STATCOM/SVC where fast, coordinated switching is required
Traction and industrial converters with IGCT-based inverter bridges
High-power test benches and engineered power supplies using press‑pack stacks
Reliability in the stack – Matching gate drive for the 5SHY 35L4510 helps minimize false trips and thermal stress.
Compatibility – A like-for-like replacement maintains existing timings and fiber‑optic topology, saving requalification effort.
Lower downtime – From my experience, swapping the gate unit restores healthy switching behavior faster than reworking control code.
Supportability – Backed by ABB’s documentation and service practice; easier to integrate with OEM diagnostics.
“We replaced two 5SGY units during a planned outage on a 6 kV drive. Fiber links and clamp checks took longer than the actual swap, which says a lot about serviceability.” — Maintenance Lead, cement plant
Installation & MaintenanceCabinet environment – Install in a clean, ventilated MV cabinet; maintain airflow around power stacks and keep ambient within spec.
Mounting & clamp force – Follow the specified IGCT clamp force; torque sequence matters to avoid uneven pressure on the disc device.
Wiring & optics – Route fiber‑optic cables with proper bend radius and dust caps. Separate low‑voltage harnesses from high‑dv/dt busbars.
Safety precautions – De‑energize and lockout. Discharge snubbers. Observe ESD handling; the gate unit and sensors can be sensitive.
Routine checks – Periodically inspect fiber connectors, verify power‑supply health (24 VDC stability), and confirm fault/status indicators.
Calibration/updates – Some revisions may require parameter verification after replacement; match hardware revisions across phases when possible.
Manufactured under ISO 9001 quality systems
Designed to meet CE and RoHS requirements for industrial equipment
Typical manufacturer warranty: 12 months from delivery (varies by region and project terms)
If you’re replacing a failed drive phase or planning a preventative swap, it seems to be best practice to confirm gate‑unit revision compatibility with the installed 5SHY devices and any companion free‑wheel diodes/snubbers. Send over your existing part markings and cabinet details, and I’ll help validate a like-for-like fit.
