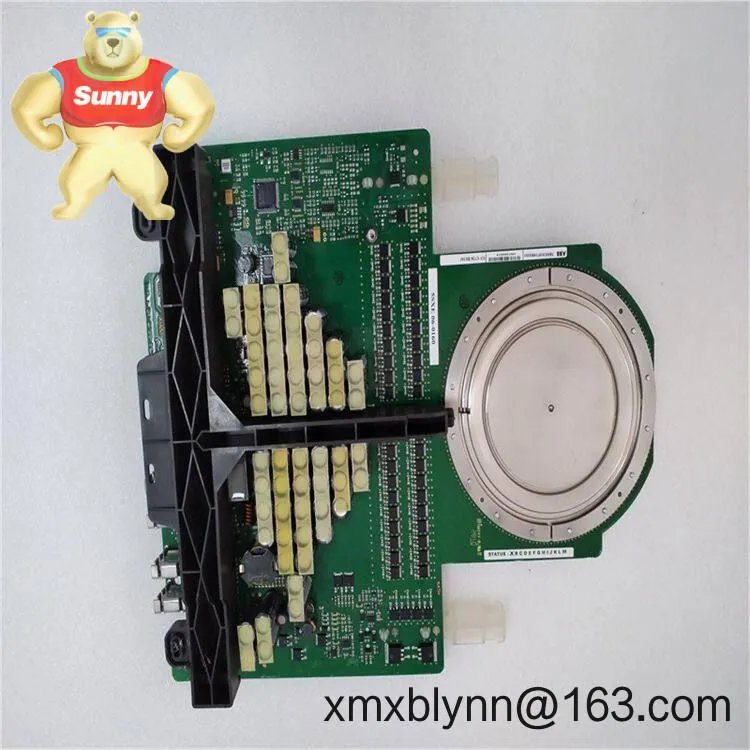

The ABB 5SHY3545L0001 is an asymmetric IGCT (Integrated Gate-Commutated Thyristor) designed for high-power, high-reliability converter applications. It typically sits in medium-voltage traction and industrial-drive systems where fast turn-off, low conduction loss and robust dV/dt tolerance are required. From my experience, these devices are chosen when a balance of ruggedness and switching performance is needed in heavy-duty converters.
In many cases the 5SHY3545L0001 is paired with a dedicated IGCT gate unit and a matched heat-sink or water-cooled flange to form the heart of a rectifier/inverter leg. One thing I appreciate is its practical form factor and the fact that it appears to integrate well into legacy ABB power modules — reducing adaptation work during upgrades.
Key featuresIGCT topology (asymmetric): Fast turn-off capability and low on-state voltage drop for efficient high-power switching.
High dV/dt immunity: Designed to withstand rapid voltage transients common in converter applications.
Robust mechanical package: Industrial-grade flange/stud packaging for reliable mounting and heat-sink attachment.
Gate-driven control: Requires a dedicated IGCT gate unit — this provides precise pulse shaping and protection features.
Collector/anode and cathode interfaces: Clear terminalization for integration into multi-device modules and paralleled stacks.
Long service life potential: When installed and cooled correctly, IGCTs like this one typically deliver extended operational intervals between interventions.
| Brand / Model | ABB 5SHY3545L0001 — Asymmetric IGCT (thyristor class) |
| Device type | Integrated Gate-Commutated Thyristor (IGCT), asymmetric |
| Typical blocking voltage | Indicative range: 2.5 kV – 4.5 kV (model variants in this family commonly fall in medium-voltage classes) |
| Typical current capability | Pulsed/peak currents in the kA-range for short durations; continuous/conduction ratings typically up to several kA depending on cooling and system design |
| Power / Gate requirements | Requires a dedicated IGCT gate unit & DC supply for gate power; gate pulse characteristics depend on gate unit specification |
| Signal I/O types | Anode/Collector, Cathode/Emitter and Gate terminals; some systems include gate-monitor connections |
| Communication interfaces | None built-in — control and monitoring via the gate unit and external PLC/RTU |
| Dimensions & weight | Package and weight vary by variant; typically a compact flange/stud package sized for direct heatsink mounting |
| Operating temperature | Junction and case limits per data sheet; typical ambient range for installed device: -20°C to +60°C (cooling required under high load) |
| Installation method | Flange/stud mounting to heatsink or water-cooled cold plate; bolted electrical terminals, torque per manufacturer guidance |
This IGCT is typically used in heavy industrial and transport power electronics: traction inverters/rectifiers, large motor drives, rolling-mill and metallurgical converters, HV/MV static frequency converters and certain types of grid-tied power conversion. In many cases it replaces older high-power thyristors when faster switching and faster turn-off are required.
Advantages & valueReliability: ABB family devices are built for continuous industrial operation — typical lifetime is driven by thermal cycling and cooling strategy.
Compatibility: Fits into common IGCT gate-unit workflows; in many retrofit projects the 5SHY family integrates with existing converter assemblies with minimal mechanical redesign.
Operational savings: Lower conduction losses and faster switching often reduce cooling and energy costs across a fleet of converters.
Technical support and spares: ABB’s global service network typically simplifies sourcing gate units, snubbers and other matched components — helpful when minimizing downtime.
From my experience, pay as much attention to the gate unit and cooling system as to the device itself. The following practical points usually save time and failures:
Cabinet & ventilation: Install in a ventilated cabinet meeting the site's IP and thermal requirements; active cooling or water-cooled cold plates are common for sustained high-current operation.
Wiring & grounding: Use short, low-inductance bus bars, follow torque specs for power terminals, and ensure a single-point grounding strategy to avoid circulating currents.
Gate unit integration: Match the IGCT to a certified gate unit and follow the gate-unit manufacturer's settings for pulse amplitude and timing.
Safety precautions: Observe lock-out/tag-out, discharge capacitors, and verify absence of voltage before work. IGCTs can retain charge in snubber networks.
Routine maintenance: Periodic visual inspections, cleaning of insulators and cooling surfaces, verification of gate-circuit components, and firmware updates for gate controllers where applicable. Re-test protective interlocks after any replacement.
ABB power semiconductors typically carry CE and RoHS compliance, and are produced under ISO quality systems. It appears that individual product shipments are supplied with manufacturer test records and a limited warranty — typically a 12-month warranty from date of shipment, though final terms depend on purchase contracts and regional support agreements.
Real-world noteA contact in traction maintenance once told me that swapping to a matched IGCT and gate set cut their converter downtime by nearly half — mostly because failures were easier to diagnose and the gate units provided better monitoring. Your mileage may vary, but careful system-level design typically pays off.
