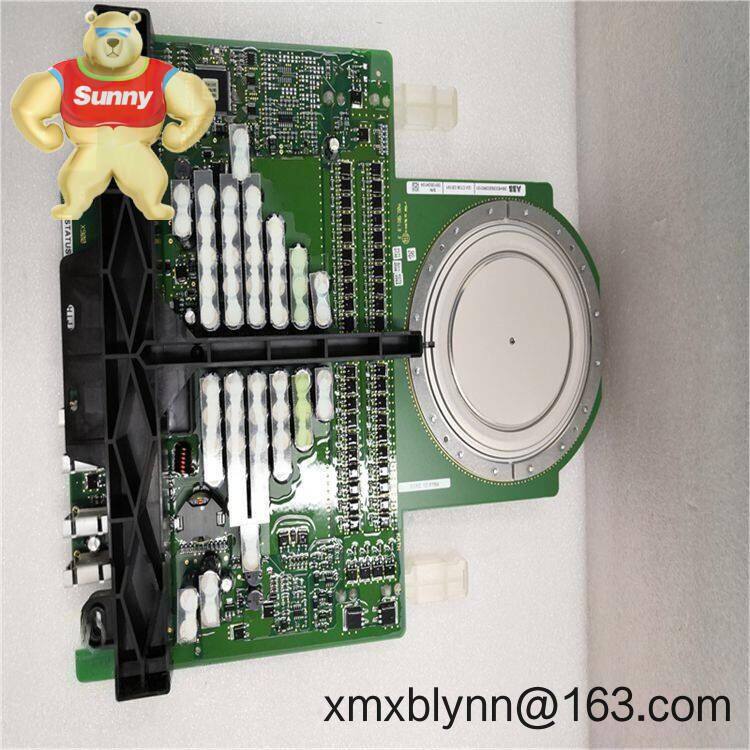

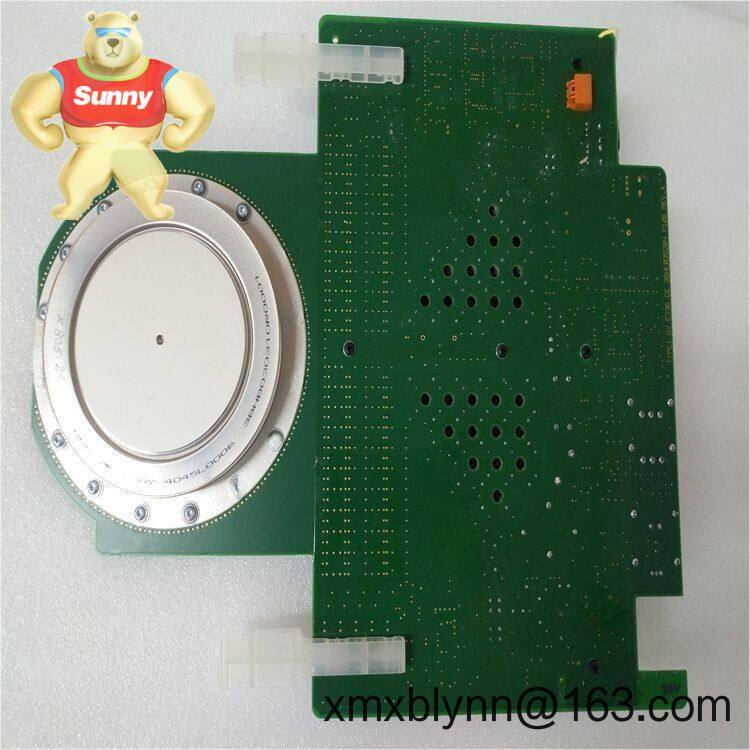

This ABB 5SHX0845F0001 (also referenced as 5SXE05-0151) is an IGCT (Integrated Gate-Commutated Thyristor) module intended for demanding power conversion and motor-drive applications. It typically serves as the high-current switching element in traction drives, industrial converters, and HVDC/pulse-power systems, offering robust switching behavior and predictable thermal performance. From my experience, these modules are chosen when system reliability and ease of integration with existing gate units matter more than pushing price to the absolute minimum.
Integrated IGCT topology — Combines high current capability with fast turn-off for improved converter control.
Robust heat-sink mounting — Module is designed for bolted/heatsink installation, which simplifies mechanical integration in cabineted systems.
Gate-drive compatibility — Works with industry-standard gate units; typically requires a low-voltage DC gate supply and an auxiliary supply for control electronics.
High immunity to thermal cycling — In many cases these modules tolerate repeated thermal stress better than discrete assemblies, reducing downtime.
Integrated sensing points — Often includes terminals for temperature or emitter monitoring to aid protection and diagnostics (confirm on your specific datasheet).
| Parameter | Value / Note |
|---|---|
| Brand / Model | ABB 5SHX0845F0001 (cross ref 5SXE05-0151) |
| Main function | IGCT power switching module for medium-/high-power converters |
| Typical voltage class | kV-class (medium-voltage converter use). Exact blocking voltage: refer to ABB datasheet for the part number. |
| Typical current class | High-current (kA-range peak switching capability). Use factory curves for steady-state vs. pulsed ratings. |
| Power / gate-drive requirements | Low-voltage gate-drive supply and auxiliary DC supply required (typical: auxiliary 24 V DC; gate drives often ±15 V or manufacturer-specified levels). Confirm with gate unit manual. |
| Signal input / output | Gate control terminals, main anode/cathode power terminals, monitoring/temperature sensor terminals (if fitted). |
| Communication interfaces | None integrated — communicates via external gate unit / converter controller; incorporate standard control wiring. |
| Installation method | Bolted to heatsink or busbar frame with spring/bolt mounting; requires careful torque specification and flatness/parallelism. |
| Operating ambient temperature | Typical ambient range: -25°C to +70°C (module junction limits and cooling method determine final limits). Refer to datasheet for derating curves. |
| Dimensions & weight | Part-specific — consult the ABB mechanical datasheet for exact footprint, mounting hole pattern and mass. |
These IGCT modules are typically found in heavy industrial and transportation applications: traction inverters for locomotives and metros, large motor drives in steel, cement and mining plants, medium-voltage STATCOMs and HVDC/pulse-power converter stations. You might notice that systems requiring high short-circuit withstand and robust thermal management choose IGCT modules over discrete IGBT stacks in many cases.
Reliability in harsh duty cycles — IGCTs are built for repetitive high-power switching and are typically less prone to certain failure modes that affect discrete solutions.
Compatibility with ABB gate systems — Reduces integration effort when replacing or upgrading modules in ABB-based converters.
Lifecycle cost benefits — From my experience, fewer spare parts and longer mean time between failures translate to lower total cost of ownership in large installations.
Technical support and documentation — ABB provides field-proven application notes and thermal/mechanical drawings; useful when estimating cooling and mounting needs.
Install this IGCT in a cabinet or frame that provides secure bolting to a flat heatsink surface. Ventilation and forced cooling (liquid or air with large heat-sink area) are commonly required; you should size the cooling system using ABB thermal curves. One thing I appreciate is that mechanical mounting tends to be straightforward, but you must follow recommended torque values and maintain clean, plated contact surfaces to avoid hot spots.
Routine checks typically include visual inspection of busbar connections, torque re-check after initial thermal cycles, cleaning of the cooling interfaces, and verifying temperature sensor/monitoring telemetry. Calibration isn't usually needed for the power module itself, but verify gate-unit firmware and settings after replacement. From my experience, keeping a small stock of pre-tested modules and spare gate connectors reduces downtime significantly.
Quality & CertificationsABB power modules are commonly supplied under quality systems certified to ISO 9001 and meet RoHS requirements. Many modules carry CE marking and have UL recognition for component use; final system certification depends on the assembled converter. Warranty terms vary by ordering agreement but are typically provided for a fixed period (commonly 12 months from delivery or per commissioning terms). I recommend confirming certification documents and warranty specifics with the supplier prior to purchase.
Practical notes & user feedbackSimulated customer feedback: "We swapped to ABB IGCT modules in our rolling-stock converters and saw fewer thermal-related trips over two years." Another common note from field teams is the importance of matching the gate unit exactly — mismatched drive characteristics typically cause more trouble than the module itself. If you need help matching gate units, wiring diagrams, or cooling specs, it's a sensible next step to request the ABB datasheet and application note for 5SHX0845F0001.
Note: Some specific electrical ratings (blocking voltage, continuous current, and pulse capability) depend on the exact part revision and production batch. It appears that this model is intended for medium-voltage, high-current duties—please refer to the ABB technical datasheet or contact your authorized distributor for full electrical curves and mechanical drawings before design or procurement.
