Research-grade Inverted Biological Microscope MIX60
US$ 1
≥1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Description
The inverted microscope MIX60 is a research-grade biological microscope with high imaging performance, function similar to Olympus CKX53. Its intelligent use, clear observation details, flat image field without field curvature, ultra-long working distance condenser, supports bright field and phase contrast observation, and can be upgraded to expand fluorescence observation; equipped with OLED digital display screen and voice broadcast function can display light intensity and objective lens magnification in real time.
Feature
Digital intelligent module, more considerate design

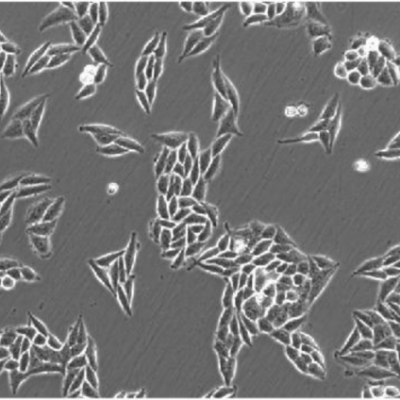

Supports phase contrast observation at multiple magnifications
Flexible adaptation to different culture containers to meet diverse needs
Specifications
| Item | Specifications |
| Host | 200mm infinity optical system, the body is equipped with ECO light-off function and can draw power |
| Eyepiece | WF10X/22 plan eyepiece, high eye point, adjustable diopter |
| WF10X/23 plan eyepiece, high eye point, adjustable diopter | |
| Centering telescope | |
| Eyepiece tube | Inclination angle 45°, interpupillary distance 50-70mm, body split ratio = 100:0 or 0:100 |
| Nosepiece | Quintuple nosepiece,ball bearing with anti fungus device |
| Stage | Fixed stage size: 267.4mm×271.4mm |
| XY stage moving ruler, mechanical movement, movement range: 110mm×75mm | |
| With stage expansion board | |
| Universal sample holder | Match slides and different petri dish sizes |
| Drip board | Round transparent drip board: φ118mm |
| Condenser | Numerical aperture N.A.: 0.3, working distance WD: 72mm |
| Compatible Objective Magnifications4X, 10X, 20X, 40X, 60X | |
| Detachable condenser, container height ≥19cm can be placed on the stage | |
| Phase ring plate | 10X ring, 20X/ 40X ring |
| Focusing mechanism | Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. |
| Transmitted illumination system | 3W full spectrum white LED, brightness continuously adjustable |
| The filter holder can be inserted into φ34mm color filters (blue, green, yellow, etc.) and is removable | |
| With aperture diaphragm, aperture blades, manual control switch | |

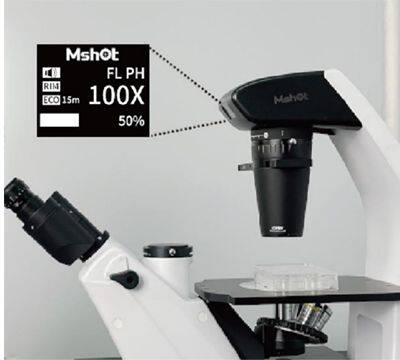

| Digital display screen | Displays the current working status, including ECO, voice function, objective lens multiple and brightness, etc., and can perform voice broadcast of the current objective lens multiple. |
| Objective lens | Long working distance 4X plan objective (M) |
| Long working distance Plan Phase Contrast Objectives 10XPH/20XPH/40XPH |
