Description

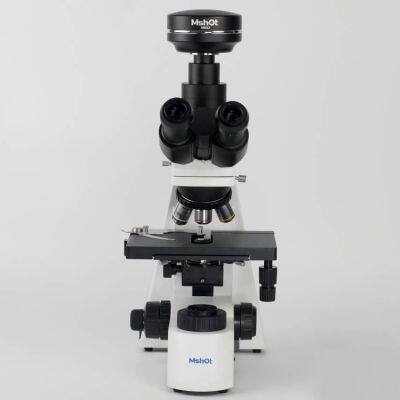

Biological microscope ML11 is a basic optical microscope equipped with plan achromatic objectives and wide field eyepiece, featured with clear view, wide field and easy operation. It is quite popular for teachers and students to achieve interactive teaching on biology science. The biological microscope is widely used in the fields of biology, agriculture and it is an ideal instrument for education departments.
Feature
Large field of view high eye point eyepieces:
The large field of view eyepieces provide a flat and wide field of view, reducing eye fatigue caused by long working hours; the high eye point design allows observation without taking off glasses.
Area of application：
■Biology slides
■Education
■Entry level pathology
■Plant
■Bacteria
■Veterinary
LED light source Kohler lighting:
Long-life, high-brightness LED light source, stable and uniform, continuously adjustable, keeps the field of view image in the best state; standard Kohler lighting, low-magnification imaging is sharper and more maintainable.
Specification
| Parts | Specification | Standard | Optional |
| Eyepiece | WF10X/20mm | • | |
| WF10X/18 (with eyepiece pointer) | • | ||
| Observation tube | 30°inclination,hinged trinocular observation head, interpupillary distance 50mm-75mm，single type diopter adjustable, fix light division R:T:80:20 | • | |
| Nosepiece Objectives | Quadruple nosepiece with inward tilt | • | |
| Achromat objective 4X/0.10, W.D.: 37.5mm | • | ||
| Achromat objective 10X/0.25,W.D：6.55mm | • | ||
| Achromat objective 40X/0.65,W.D：0.669mm | • | ||
| Achromat objective 100X/1.25, W.D：0.198mm | • | ||
| ACH 20X | • | ||
| Focus system | Low position hand wheel coaxial coarse and fine adjustment with limit stopper and lock device | • | |
| Stage height movement (coarse movement stroke: 25mm) | • | ||
| Fine focusing accuracy 0.002mm | • | ||
| Stage | 155mmx142mm double layer compound mechanical moving stage, moving range 76mmX50mm , accuracy 0.1mm | • | |
| Transmitted illumination system | 3W LED，Pre-set lamp center, brightness continues adjustable | • | |
| Abbe condenser,N.A.1.25，with changeable aperture diaphragm | • | ||
| Camera adapter | 1X C-mount | • | |
| 0.5X C-mount | • | ||
| Accessories | Allen driver | • | |
| Dust cover | • | ||
| Fluorescence light shield | • |
