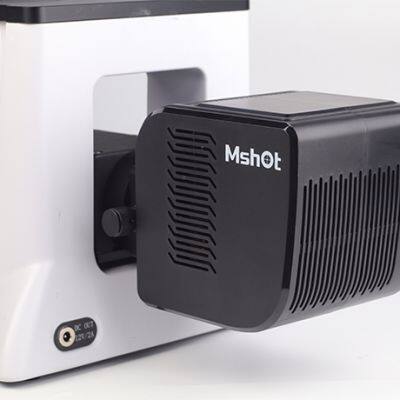

Help CenterInverted Metallurgical Microscope MJX60
Related Products
Description
The inverted metallographic microscope MJX60 adopts a mature infinity optical system, high-quality LED epi-illumination, ultra-long-life full-spectrum white light, and stable color temperature to achieve bright field and polarized light observation, which is suitable for observing large-sized metal samples.
Feature
Research-grade inverted metallographic microscope:
Magnification 50X-1000X, ultra-wide 23-view digital microscope optional, standard EPI high numerical aperture long working distance metallographic objective lens, imaging details are clear.
Ergonomic design：
High degree of digitalization, easy to use and operate, equipped with coded objective turntable, brightness memory function, upgradeable voice broadcast and ECO function.
Flexible configuration：
Adapt to the observation of samples of different materials. Various choices of eyepieces and objective lenses; High-brightness LED light source, large-stroke mechanical moving platform, standard bright field polarized light observation mode.
Specifications
| Item | Specification |
| Main Frame | 200mm infinity-corrected optical system, with ECO automatic light-off and voice-controlled system |

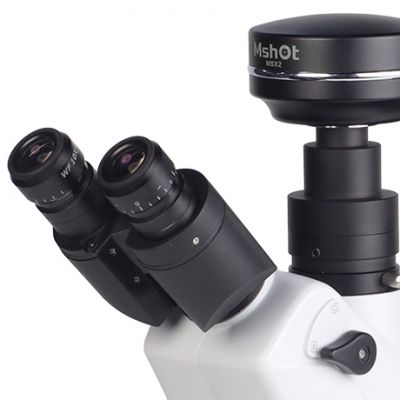

| Eyepiece | WF10X/22 flat-field eyepiece, high eyepoint, diopter adjustable |
| Eyepiece Tube | Fixed binocular tube, 45° inclination Pupil distance: 50-75mm Optical path: eyepiece/camera port = 100/0 : 0/100 |
| Objective Turret | Five-hole internal positioning turret, ball bearing internal positioning, with anti-fungal device |
| Stage | XY metallographic stage |
| Metallographic water drop plate | |
| Focusing Mechanism | Coaxial coarse and fine adjustment, with limit device and locking device, low-position coaxial focusing knobs, fine-tuning knob grid value: 2μm |
| Incident Illumination System | 3W full-spectrum white LED, continuously adjustable brightness |
| Polarizer and analyzer insertion plates for polarized light observation | |
| Incident illumination optical path with aperture diaphragm, field diaphragm, and filter holder | |
| Adapter | 12V2A |
| Dust Cover | MSHOT special dust cover |
| Objectives | Long working distance plan objective L Plan5X/0.12 Working distance: 23.6mm |
| Long working distance plan objective L Plan 10X/0.25 Working distance: 17.7mm | |
| Long working distance plan objective L Plan 20X/0.40 Working distance: 10.4mm | |
| Long working distance plan objective L Plan 50X/0.55 Working distance: 7mm |
