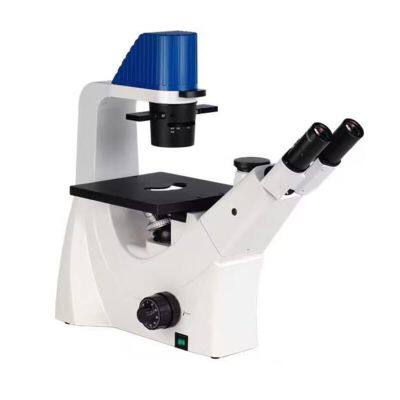

The inverted microscope MI40 adopts excellent infinity optical system to provide excellent optical performance. The streamlined design concept and compact and stable high-rigidity body fully reflect the shock-proof requirements of microscopic operations. The ultra-long working distance focusing system can conduct contamination-free observation of cultured cells in tall petri dishes or cylindrical flasks. The lighting system fully considers heat dissipation and safety. The ergonomic design concept makes the operation more convenient, comfortable and safe, and the space is free. broad. A phase contrast device can be added to the optical path to achieve phase contrast microscopy.
Feature
Phase contrast device can be added to the optical path to achieve phase contrast microscopic observation.
Specification
| ltem | Specification |

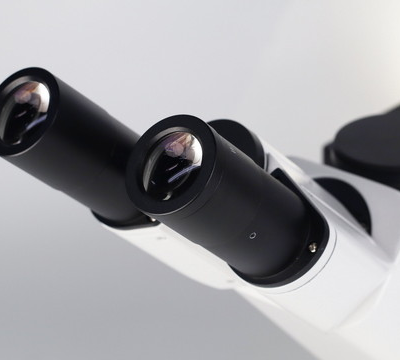

| Eyepiece | Flat field eyepiece WF10X/20mm(1 adjustable diopter) |
| Observation head | 45°tilt,binocular interpupillary distance adjustment range:55-75mm,50-50 light beam |
| Nosepiece | Quintuple nosepiece,ball bearing with anti-fungus device |
| Focusing mechanism | Coarse and fine motion coaxial,micro motion grid value:2um,coarse motion tightness adjustable |
| with locking and limiting device,effective focusing stroke 11mm | |
| Objectives | Long working distance plan objective lens LWD Plan4X/0.1 WD:11.98mm |
| Long working distance plan objective lens LWD Plan40X/0.6 WD:3.76mm | |
| Long working distance plan objective lens LWD Plan10X PHP/0.25 WD:10.6mm | |
| Long working distance plan objective lens LWD Plan20xPHP/0.4 WD:7.97mm | |
| Condenser | Long working distance condenser,working distance 70mm,with plug-in phase contrast device |

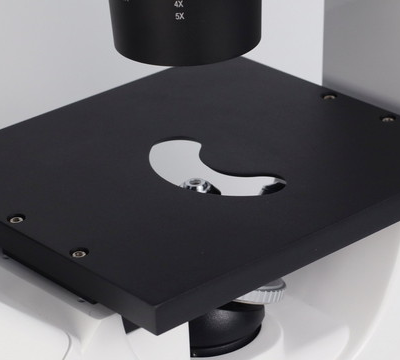

| Stage | Flat stage,208*225mm |

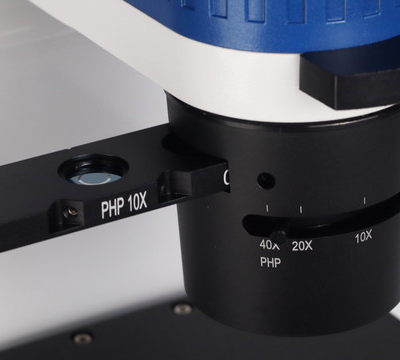

| Phase contrast system | Pull plate type phase contrast condenser,the center of the phase contrast ring is adjustable |
| illumination system | 9W LED,brightness adjustable |
