Description
MZ62 series zoom stereo microscope has high-quality optical system design, showing excellent resolution and true color, body and parts are ergonomic and durable. It has transmitted light and reflected light with LED illumination, the reflected lighting angle can be moved by user needs. High eyepoint eyepiece with ±5° adjustable is comfortable for long time observation, head support 50%/50% light division to achieve view image on PC and eyepiece synchronise. The microscope is ideal for high-precision 3D observation of stereoscopic objects such as electronic components, plant, insect, sand and other small objects, it is widely used for routine biomedical tests, scientific research and industrial inspections.
Feature

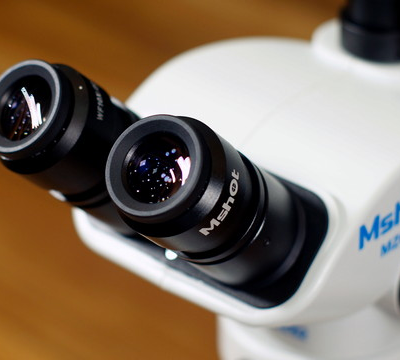

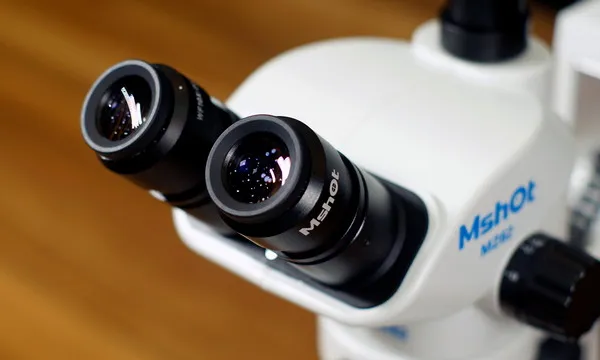

Standard large-field eyepieces provide a flat and wide field of view to reduce eye fatigue; high eye point design allows observation without taking off glasses; adjustable diopter ensures synchronized clarity under binoculars.
Specification
| Parts | Specification | Standard | Optional |
| Eyepiece | WF10X/22mm high eye-point , large field of view, both eyepiece diopter adjusting range ±5° | • | |
| WF10X/22mm reticle eyepiece | • | ||
| WF20X/12 | • | ||

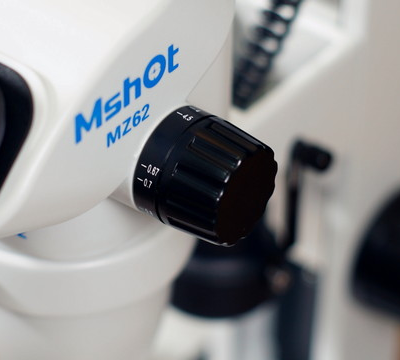

| Observation tube | 45°inclined hinged trinocular observation tube, light path selector: 50%/50% Pupil distance adjusting range: 54-75mm Zoom range：0.67X～4.5X Zoom ratio：6.7:1 Working distance:105mm |
• | |
| Camera adapter | 0.5X C-mount adapter | ||
| 1X C-mount adapter | • | ||
| Focus system | Focusing frame and wheel tension adjustable focus adjustment Lifting distance 50mm. |
• | |
| Base | L slope type vertical arm base, vertical arm adjustment, stroke 106mm | • | |
| Board | φ95mm frosted glass work board | • | |
| Lighting system | Up/down LED light source lighting | • | |
| Objectives | 2X auxiliary objective | • | |
| 0.5X auxiliary objective | • | ||
| 0.75X auxiliary objective | • | ||
| Galss plate and white board | Frosted glass plate (double-sided frosted) | • | |
| Black and white board | • | ||
| Translucent whiteboard | • |
