Description

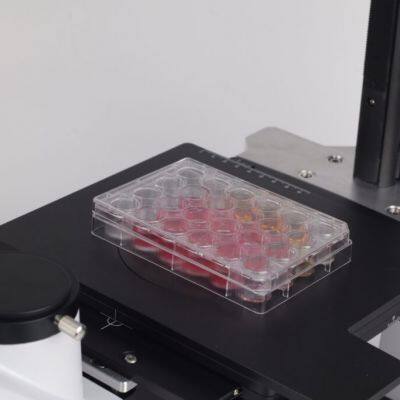

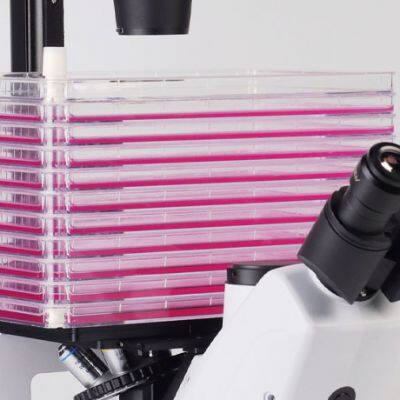

MIX60-CF adopts an excellent infinity optical system and multi-state imaging: it integrates multiple observation modes such as phase contrast and bright field, and is equipped with a long working distance objective lens to clearly capture key dynamic processes such as cell adhesion growth and metabolite distribution. It can observe non-contamination cell culture in high culture dishes, cylindrical flasks, and cell factories. It can be widely used in scientific research institutes, colleges and universities, medical and health, biomedicine, inspection and quarantine, agriculture, animal husbandry, dairy industry and other departments.
Feature
It has strong expandability and is suitable for cell experiments in different scenarios. There are various choices of eyepieces and objectives. The brightfield and phase contrast observation modes are standard, and it can be upgraded to LED digital display fluorescence observation.
Specification
| Items | Specification |
| Host | 200mm infinity-corrected optical system, ECO light-off and voice announcement |
| Eyepiece | WF10X/22 wide-field eyepiece, high eyepoint, diopter adjustable |
| Eyepiece tube | Fixed binocular tube, 45-degree inclination, interpupillary distance 50mm-75mm, eyepiece/camera port ratio = 100/0 : 0/100 |
| Centering telescope | Centering telescope |
| Nosepiece | Quintuple nosepiece,ball bearing with anti fungus device |

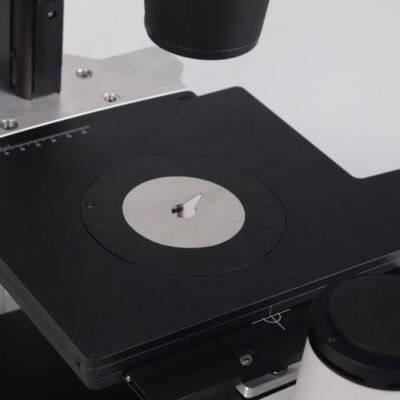

| Stage | XY axis stage |
| Drip board | |
| Phase contrast ring plate | 10X ring, 20X/ 40X ring |

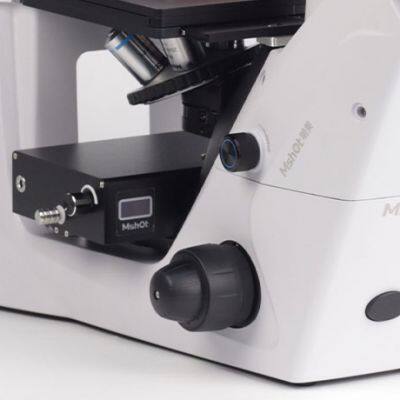

| Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. |
| Lighting system | 3W full-spectrum white LED with continuously adjustable brightness |
| Sliding plate phase contrast condenser, working distance 50mm-400mm | |
| Adapter | 12V2A |
| Dust cover | MSHOT dust cover |
| Objective lens | Long working distance 4X plan objective (M) |
| Long working distance 10X plan phase contrast objective (PH) | |
| Long working distance 20X plan phase contrast objective (PH) | |
| Long working distance 40X plan phase contrast objective (PH) |
