Home > Instruments & Meters > Optical Lens & Instrument > Microscope > Research Grade Biological Microscope ML51-N
US$ 1
≥1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Description
The biological microscope ML51-N uses infinity independent achromatic optics to observe samples with true clarity and bright colors. The standard plan-field semi-apochromatic objective lens provides a high-quality and high-performance imaging solution for digital imaging. It is widely used in medical testing, disease prevention, biological research, teaching and scientific research and other fields.
Feature
Wide field of view eyepiece in high eyepoint:
The large field of view eyepiece can support up to 23mm field of view in bright field. The flat and bright field of view greatly reduces fatigue and improves work efficiency. The trinocular observation head supports simultaneous imaging of the eyepiece and camera.

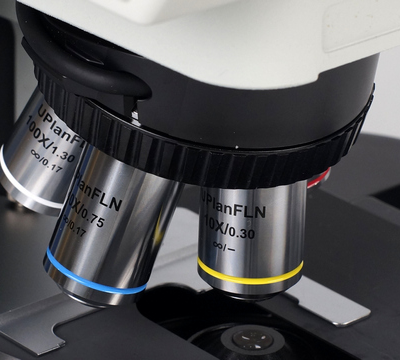

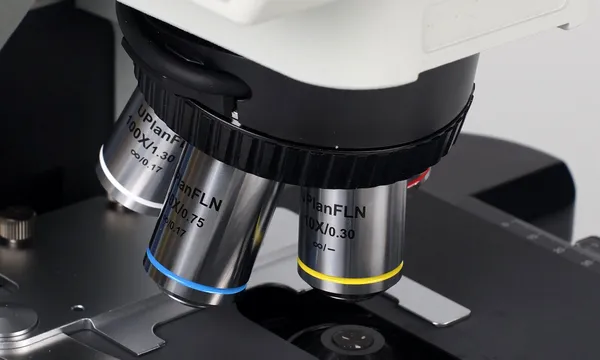

Semi-apochromatic objectives:
The standard semi-apochromatic objective lens has high numerical aperture and higher light transmittance. In addition to better resolution and clarity in high-magnification scenes such as 100X, it can also achieve better results in special observations such as fluorescence.

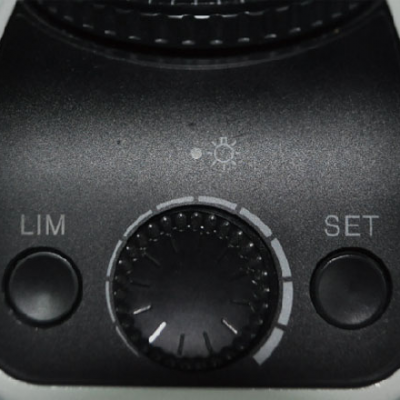

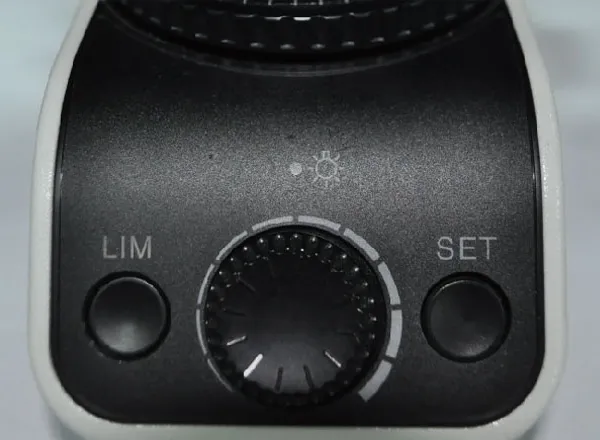

Light intensity manager:
Built-in coded nosepiece and light intensity manager, the light intensity automatically adjusts as the objective lens switches, ensuring consistent light intensity at different magnifications, improving work efficiency and reducing eye fatigue.
Specifications
| Parts | Specification | Standard | Optional |
| Eyepiece | Wide field eyepiece 10X, FN25,diopter is adjustable | • | |
| Wide field eyepiece 10X, FN23 | • | ||
| Observation tube | Hinged type trinocular observation tube, high eyepoint,30° inclination, Pupillary distance adjustment 50-75mm | • | |
| Trinocular split ratio 100:0 or 20:80 or 0:100 | • | ||
| Nosepiece | Quintuple nosepiece,ball bearing with anti fungus device | • | |
| Coded quintuple nosepiece with prism slot | • | ||
| Interchangeable reversed six hole nosepiece | • | ||
| Objectives | Plan semi-apochromatic objective 4X/10X/40X/100X | • | |
| Plan achromatic phase contrast objective 10X/20X/40X/100X PH | • | ||
| Plan Achromatic DIC Objective | • | ||
| Focus system | 25 mm stage stroke with coarse adjustment limit stopper, torque adjustment for coarse adjustment knobs, stage mounting position variable, minimum adjustment gradations: 1 µm | • | |
| Stage | High wear-resistant ceramic covered stage, travel distance 80×50 mm, 1mm per scale, accuracy 0.1mm | • | |
| Transmitted illumination system | Abbe condenser, N.A. 1.1 | • | |
| Rotary disk phase contrast condenser | • | ||
| DIC condenser with polarizer and prism slot | • | ||
| Camera adapter | 1X C-mount adapter | • | |
| 0.5X C-mount adapter | • |
