Description

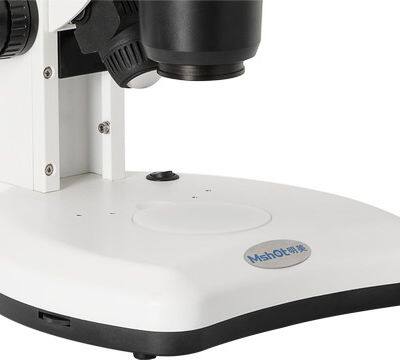

Stereo microscope MZ101 has the advantages of long working distance and large magnification range, which can meet the observation needs of different magnification rates. The stereo microscope is easy to operate in the process of use with the ergonomic design, so that the operator has a very comfortable operating experience. Lighting by white LED for both of transmitted and reflected observation.
Feature

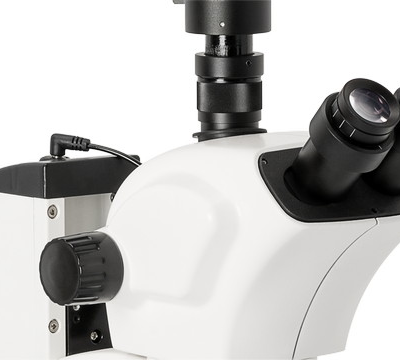

Adjustable diopter, interpupillary distance linkage, smooth lifting and lowering:
The left and right diopters of the eyepiece are adjustable. The interpupillary distance adjustment adopts left and right linkage method, which makes observation comfortable and easy to operate. The lifting and lowering mirror body adjustment mechanism adopts coarse motion speed change, cylindrical roller guide, smooth transmission and light weight.
High-brightness LED, three lighting controls, adjustable brightness:
Using high-bright white LED lighting, you can choose transmission, reflection, or transflective lighting methods. It is controlled by independent electrical appliances and the brightness can be adjusted at will.
Long-distance zoom, optional auxiliary lens, multiple times of observation:
The continuous zoom objective lens has a long working distance and a large zoom range. An auxiliary objective lens can be selected as needed to meet the requirements for observation at different magnifications.
Specification
| Parts | Specification | Standard | Optional |
| Eyepiece | Wide field WF10X ,FN:22mm | • | |
| WF16X | • | ||
| WF20X | • | ||
| 10X reticle eyepiece | • | ||
| Objectives | Continuous zoom | • | |
| Zoom range：0.7～6.3(Zoom radio：1:9) | • | ||
| Working distance：110mm | • | ||
| 2X auxiliary objective lens | • | ||
| 0.5X auxiliary objective lens | • | ||
| Field of view | Φ33.8～Φ3.49 | • | |
| Total magnification | 7X~63X | • | |
| Effective moving range | 220mm | • | |
| Basement size | 310mmX280mm | • | |
| Illumination | Reflected：3W high brightness LED | • | |
| Transmitted：5W high brightness LED | • | ||
| Camera adapter | 1X C-mount adapter | • | |
| 0.5X C-mount adapter | • | ||
| MZ101 simple polarizing attachment | • | ||
| MZ101 black and white board | • | ||
| MZ101 translucent plate | • | ||
| MZ101 transparent glass plate | • | ||
| MZ101 frosted glass plate | • | ||
