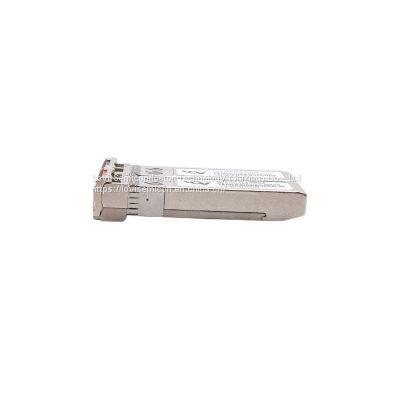

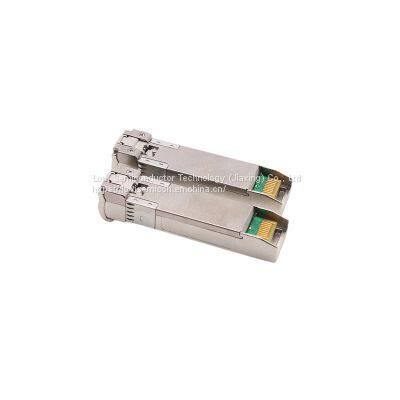

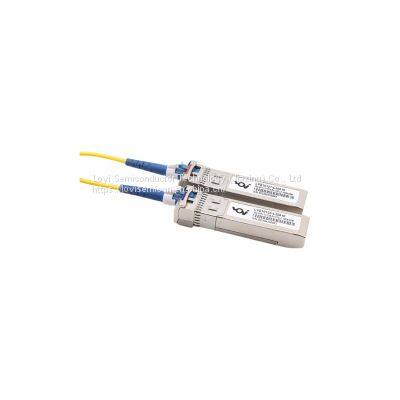

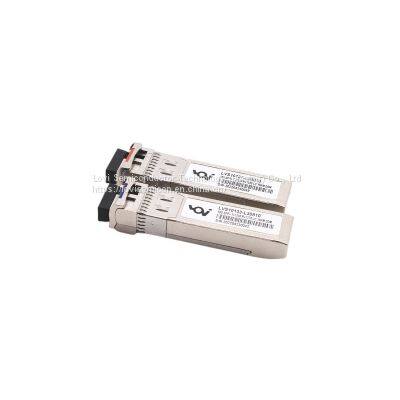

10Gbps SFP+ Bi-Directional Transceiver, 10km Reach 1330nm TX / 1270nm RX
Features:
The SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode Fiber.
Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Hot Pluggable
Maximum link length of 10Km on SMF
Low power consumption
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption
Information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
RoHS6 compliant (lead free)
Operating case temperature:
Commercial: -5ºC to +70°C
Extended: -20ºC to +80°C
Applications:
10GBASE-LR/LW 10G Ethernet
1200-SM-LL-L 10G Fibre Channel
10G SONET
Other optical links
Table 1 - Absolute Maximum Ratings
Table 2 - Recommended Operating Conditions
