2.5Gbps 1490nm DFB Laser Diode TO56 for PON

2.5Gbps 1490nm DFB Laser Diode TO56 for PON thumbnail-1
2.5Gbps 1490nm DFB Laser Diode TO56 for PON thumbnail-2
2.5Gbps 1490nm DFB Laser Diode TO56 for PON thumbnail-3
2.5Gbps 1490nm DFB Laser Diode TO56 for PON thumbnail-4
2.5Gbps 1490nm DFB Laser Diode TO56 for PON thumbnail-5
2.5Gbps 1490nm DFB Laser Diode TO56 for PON photo-1
2.5Gbps 1490nm DFB Laser Diode TO56 for PON photo-2
2.5Gbps 1490nm DFB Laser Diode TO56 for PON photo-3

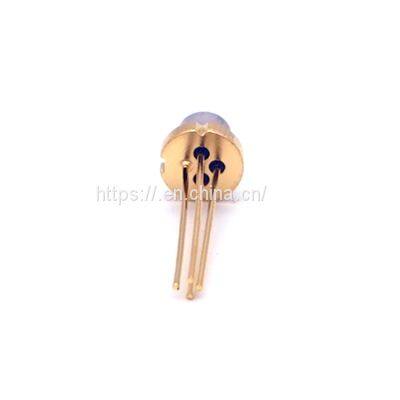

2.5Gbps 1490nm DFB Laser Diode TO56 for PON photo-4
2.5Gbps 1490nm DFB Laser Diode TO56 for PON photo-5
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOVI
Place of Origin:
China
Model Number:
LV02-DT49-5B11-CC
Contact Supplier Request Quote Chat Now
Lovi Semiconductor Technology (Jiaxing) Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LOVI
Place of Origin China
Model Number LV02-DT49-5B11-CC
Type Laser Diode
Package Type Other, TO56
2.5Gbps 1490nm DFB Laser TO56 for PON

Lovi 2.5Gbps 1490nm DFB Laser TO-Can is designed for high performance optical communication applications as well as PON applications.


Feature:

  • TO-56 packing (4 pins)

  • 6.5 mm focal length with 1.5mm ball lens cap

Table 1: Absolute Maximum Ratings

 Parameter  Symbol  Min.  Max.  Unit

Storage Temperature 		Tstorage -40 +85 °C

Operating Temperature 		Top -5 +75 °C

Solder Reflow Temperature 		STEM --- 260 °C

Laser Reverse Voltage 		Vr --- 2 V

Laser Forward Current 		If --- 100 mA

Photodiode Forward Current 		Ipd --- 10 mA

Photodiode Reverse Voltage 		Vr --- 20 V


 Table2: Electrical and Optical Characteristics (T=25°C, unless note)Note: Tc = Module Case temperature


 Parameter  Symbol  Conditions  Min.  Typ.  Max.  Unit


Threshold Current
Ith 		CW, Tc = 25°C --- 10 14
mA
CW, Tc = 75°C --- --- 30
Output Power Po CW, Ith + 20mA 6 7 --- mW

Forward Voltage  		Vf CW, Tc = 25°C,
Iop = 45mA 		--- --- 2 V

Slope Efficiency  		SE CW, Tc = 25°C,
Ith + 20mA 		0.3 ---
mW/mA
Side Mode Suppression Ratio
SMSR 		CW, Iop = Ith + 20mA, Tc = -5°C ~ 70°C
35
---
---
dB

Rise/Fall Time 		tr/tf Iop = Ith + 20mA, 20% ~ 80% --- --- 120 ps
Peak Wavelength λ CW, Iop = Ith + 20mA, Tc = 25°C 1480 1490 1500 nm
PD Dark Current Id Vr = 5V --- --- 100 nA
PD Monitor Current Im CW, Ith + 20mA 100 --- 1000 uA
PD Capacitance Cpd Vr = 5V@1MHz --- 5 10 pF

Note: Tc = Module Case temperature
