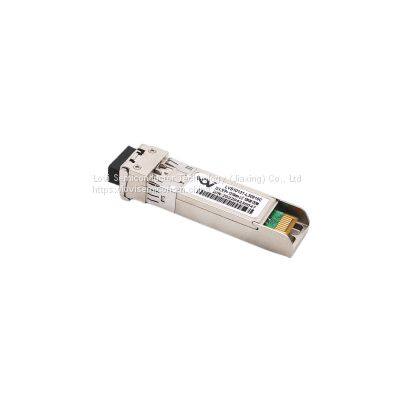

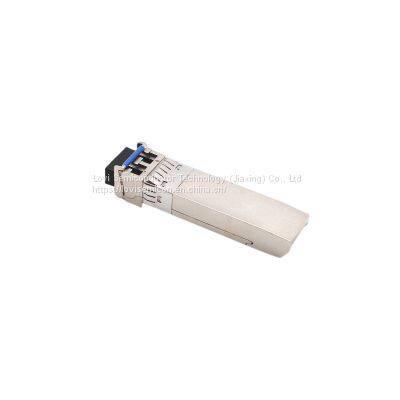

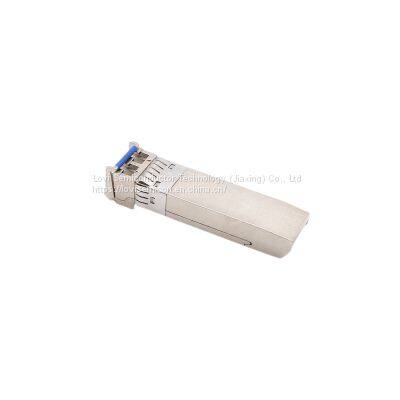

10km SFP+10G Duplex LC SFP+ Module Transceiver

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Payment TermsT/T PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

10Gbps SFP+ 1310nm Transceiver, 10km Reach

Features:

The SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode Fiber. The transceivers are compatible with SFP+ MSA and SFF-8472. For further information, please refer to SFP+ MSA and SFF-8472.

Up to 10.6Gbps data links
1310nm DFB laser and PIN photodetector
Up to 10km on 9/125um SMF
Duplex LC receptacle optical interface compliant
Hot pluggable
All-metal housing for superior EMI performance
RoHS6 compliant (lead free)
Operating case temperature:

Commercial: -5ºC to +70°C

Extended: -20ºC to +80°C

Industrial: -40ºC to +85°C

Applications:

10GBASE-LR/LW 10G Ethernet
10G Fibre Channel
10G SONET
Other optical links

Standards:

Compliant with SFP+ MSA
Compliant with SFF-8472
Compatible with IEEE802.3ae

Table 1 - Absolute Maximum Ratings

Parameter		Symbol	Min.	Max.	Unit
Supply Voltage		Vcc	-0.5	4.5	V
Storage Temperature		Ts	-40	+85	°C
Relative Humidity		RH	5	+85	%
RX Input Average Power		Pmax	---	1.5	dBm
Operating Case Temperature	Commercial	Top	-5	+70	°C
	Extended		-20	+80
	Industrial		-40	+85

Table 2 - Recommended Operating Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	Vcc	3.13	3.3	3.46	V
Power Supply Current	Icc	---	---	300	mA
Date Rate	---	---	10.3125	---	Gbps
