2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication

2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication thumbnail-1
2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication thumbnail-2
2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication thumbnail-3
2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication thumbnail-4
2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication thumbnail-5
2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication photo-1
2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication photo-2
2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication photo-3

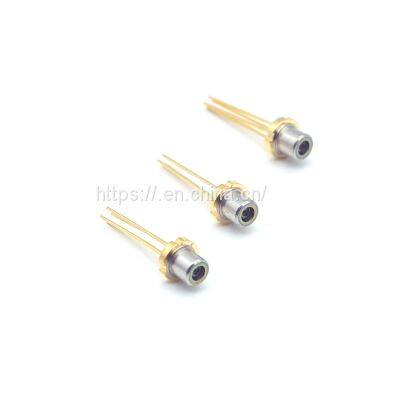

2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication photo-4
2.5G 1310nm DFB Laser Diode TO56 for Analog or Optical Communication photo-5
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOVI
Place of Origin:
China
Model Number:
LV02-DT31-5A42-I1
Contact Supplier Request Quote Chat Now
Lovi Semiconductor Technology (Jiaxing) Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LOVI
Place of Origin China
Model Number LV02-DT31-5A42-I1
Type Laser Diode
Package Type Other, TO56
2.5Gbps 1310nm DFB Laser TO

Lovi 2.5Gbps 1310nm DFB Laser TO-Can is designed for high performance optical communication applications.


Feature:

  • TO 56 packing (4 pins)

  • 7.5 mm focal length with 4X aspherical lens Cap

Table 1: Absolute Maximum Ratings


Parameter Symbol Min. Max. Unit
Storage Temperature Tstorage -40 +85 °C
Operating Temperature Top -40 +85 °C
Laser Reverse Voltage Vr --- 2 V
Laser Forward Current If --- 100 mA
Photodiode Forward Current Ifp --- 10 mA
Photodiode Reverse Voltage Vrp --- -20 V
Solder Reflow Temperature STEM 260/10 °C/S

Table 2: Electrical and Optical Characteristics (T=25°C, unless note)Note: Tc = Module Case temperature


Parameter Symbol Conditions Min. Typ. Max. Unit

Threshold Current
Ith 		CW, Tc = 25°C --- 10 14
mA
CW, Tc = 85°C --- 20 30
Output Power Po CW, Ith + 20mA 7.5 12 --- mW
Forward Voltage Vf CW, Tc = 25°C,
Iop = 50mA 		--- 1.2 1.6 V
Slope Efficiency SE CW, Tc = 25°C,
Po = 5mW 		0.35 --- --- mW/mA
Side Mode Suppression Ratio SMSR CW, Iop = Ith + 20mA, Tc = -5°C ~ 70°C 35
---
--- 		dB
Rise/Fall Time tr/tf Iop = Ith + 20mA,
20% ~ 80% 		--- 30 --- ps
Peak Wavelength λ CW, Iop = Ith + 20mA, Tc = 25°C 1300 1310 1320 nm
Bandwith BW
2.5 --- --- GHz
PD Dark Current Id Vr = 5V --- --- 100 nA
PD Monitor Current Im CW, Ith + 20mA 150 --- 950 uA
PD Capacitance Cpd Vr = 10V@1MHz --- 10 20 pF
Focal Length FL
7.3 7.5 7.7 mm

Note: Tc = Module Case temperature

Product Tags: Laser diode , Fiber Optic , TO56
