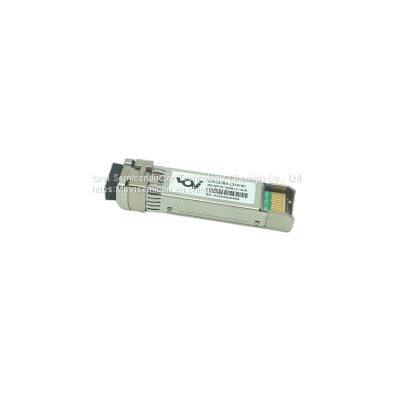

Optical Fiber Channels 25G SFP28 DWDM 10KM Transceiver photo-2

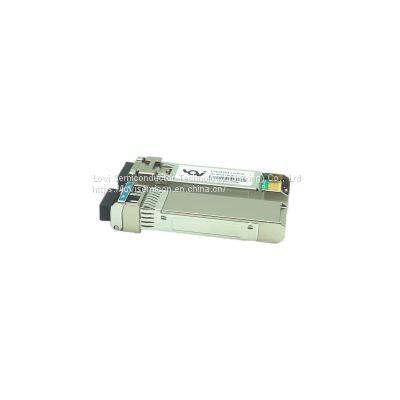

Optical Fiber Channels 25G SFP28 DWDM 10KM Transceiver photo-3

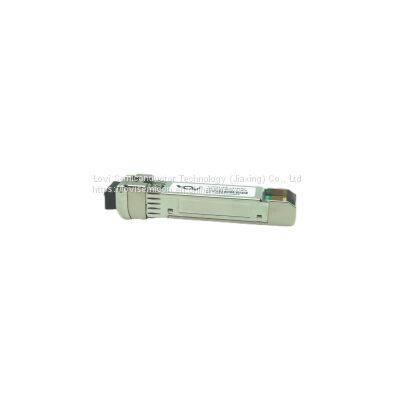

Optical Fiber Channels 25G SFP28 DWDM 10KM Transceiver photo-4

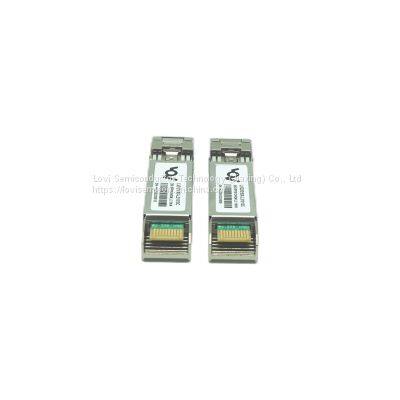

Optical Fiber Channels 25G SFP28 DWDM 10KM Transceiver photo-5
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2020
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

25Gb/s SFP28 DWDM 10km Optical Transceiver Module

Features:

  • Up to 25.78Gb/s data links

  • DWDM EML transmitter and PIN receiver

  • 100 GHz ITU channel spacing with integrated

  • wavelength locker

  • Up to 10km on 9/125um SMF

  • Hot-pluggable SFP28 footprint

  • Support Digital Diagnostic Monitoring interface

  • Duplex LC/UPC type pluggable optical interface

  • RoHS-10 compliant and lead-free

  • With CDR function

  • Single +3.3V power supply

  • Compliant with SFF+MSA and SFF-8472

  • Metal enclosure, for lower EMI

  • Meet ESD requirements, resist 8KV direct contact voltage

  • Case operating temperature

  • Commercial: 0 ~ +70ºC

  • Extended: -10 ~ +80ºC

  • Industrial: -40 ~ +85ºC

Applications:

  • High-speed storage area networks

  • Computer cluster cross-connect

  • Custom high-speed data pipes

  • Inter Rack Connection

  • Other Optical Links

Table 1 - Absolute Maximum Ratings

ParameterSymbolMin.Max.Unit
Storage TemperatureTs-4085ºC
Power Supply VoltageVcc-0.53.6V
Relative Humidity
(non-condensation)		RH595%
Damage ThresholdTHd3---dBm
Operating Case TemperatureTop070ºC
-1080
-4085


 Table 2 - Recommended Operating Conditions


ParameterSymbolMin.Typ.Max.UnitNotes
Power Supply VoltageVcc3.1353.33.465V
Date Rate------25.78---Gb/s
Control Input Voltage High---2---VccV
Control Input Voltage Low---0---0.8V
Link Distance (SMF)D------10km9/125um
