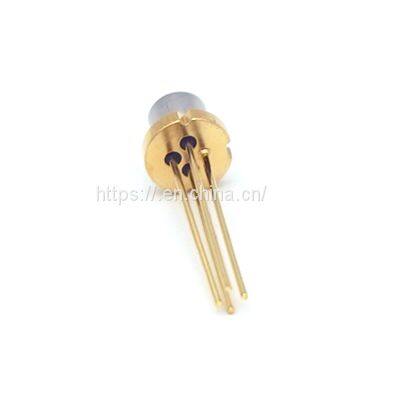

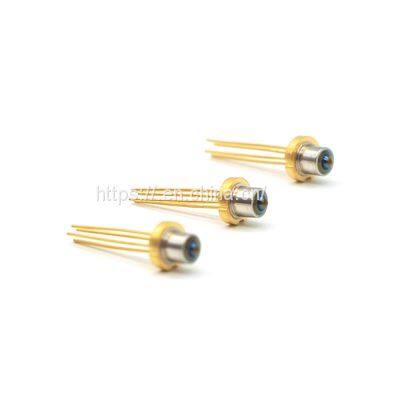

10Gbps 1310nm DFB Laser TO56 4PIN Header for SFP Module
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOVI
Place of Origin:
China
Model Number:
LV10-DT31-5H21-I1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10Gbps 1310nm DFB Laser Diode TO for SFP Optic TransceiverNegotiableMOQ: 100 Pieces -
High Reability 2.5Gbps 1490nm/1310nm GPON OLT C++ BOSANegotiableMOQ: 100 Pieces
-
2.5G InGaAs APD+TIA GPON ONU Triplexer BOSANegotiableMOQ: 100 Pieces
-
1.25Gbps Coaxial Pigtail SC EPON BOSA for Laser ModulesNegotiableMOQ: 100 Pieces
-
2.5Gbps 1310nm MQW-FP Laser EPON BOSA With PigtailNegotiableMOQ: 100 Pieces
Brand Name
LOVI
Place of Origin
China
Model Number
LV10-DT31-5H21-I1
Type
Laser Diode
Package Type
Other, TO-Can
10Gbps 1310nm DFB Laser TO 56 4pin Header for SFP Module
Lovi 10Gbps 1310nm DFB Laser TO-Can is designed for high performance optical communication applications as well as supports performance up to 10 Gb/sec bit rate, can extend to -40~85ºC operating temperature for GPON, SONET/SDH, Fiber Channel and Gigabit Ethernet applications.
Feature:
TO-56 packing (4 pins)
6.5 mm focal length with 2mm high index ball lens cap
Table 1: Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstorage | -40 | +85 | °C |
| Operating Temperature | Top | -40 | +75 | °C |
| Laser Reverse Voltage | Vr | --- | 2 | V |
| Laser Forward Current | If | --- | 150 | mA |
| Photodiode Forward Current | Ipd | --- | 10 | mA |
| Photodiode Reverse Voltage | Vr | --- | 15 | V |
Table2: Electrical and Optical Characteristics (T=25°C, unless note)Note: Tc = Module Case temperature
| Parameter | Symbol | Conditions | Min. | Typ. | Max. | Unit |
|
Threshold Current |
Ith |
CW, Tc = 25°C | --- | 8 | 15 |
mA |
| CW, Tc = 85°C | --- | 23 | 40 | |||
|
Output Power |
Po | CW, Ith + 20mA | 5 | 7 | --- | mW |
|
Forward Voltage |
Vf |
CW, Tc = 25°C, Iop = 45mA |
--- | 1.2 | 1.6 | V |
|
Slope Efficiency |
SE | CW, Ith + 20mA | 0.3 | 0.35 | --- | mW/mA |
| Side Mode Suppression Ratio |
SMSR |
CW, Iop = Ith + 20mA, Tc = 0°C ~ +85°C |
35 |
--- |
--- |
dB |
|
Peak Wavelength |
λ | CW, Iop = Ith + 20mA, Tc = 25°C | 1300 | 1310 | 1320 | nm |
|
PD Dark Current |
Id | Vr = 5V | --- | --- | 100 | nA |
| PD Monitor Current | Im | CW, Ith + 20mA | 100 | --- | 100 | uA |
Note: Tc = Module Case temperature
