2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON

Lovi Semiconductor Technology (Jiaxing) Co., Ltd
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON thumbnail-1
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON thumbnail-2
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON thumbnail-3
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON thumbnail-4
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON thumbnail-5
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON photo-1
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON photo-2
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON photo-3

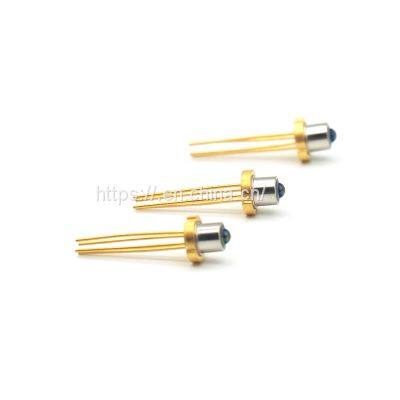

2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON photo-4

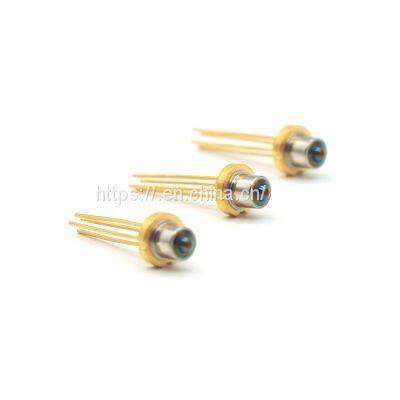

2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON photo-5
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOVI
Place of Origin:
China
Model Number:
LV02-DT55-5H21-I1
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LOVI
Place of Origin China
Model Number LV02-DT55-5H21-I1
Type Laser Diode
Package Type Other, TO-Can
2.5Gbps 1550nm DFB Laser TO

Lovi 2.5Gbps 1550nm DFB Laser TO-Can is designed for high performance optical communication applications as well as P to P applications.


Feature:

TO-56 packing (4 pins)
6.5 mm focal length with 2mm high index ball lens cap


Table 1: Absolute Maximum Ratings

Parameter Symbol Min. Max.Unit

Storage Temperature		Tstorage-40+85°C

Operating Temperature		Top-40+85°C

Solder Reflow Temperature		STEM---260°C

Laser Reverse Voltage		Vr---2V

Laser Forward Current		If---100mA

Photodiode Forward Current		Ipd---10mA

Photodiode Reverse Voltage		Vr---20V

Table 2: Electrical and Optical Characteristics (T=25°C, unless note)Note: Tc = Module Case temperature


 ParameterSymbolConditionsMin.Typ. Max. Unit

Threshold Current
Ith		CW, Tc = 25°C---1015
mA
CW, Tc = 85°C---2335
Output Power PoCW, Ith + 20mA5------mW
Forward VoltageVfCW, Tc = 25°C,
Iop = 45mA		------2V
Slope Efficiency SECW, Tc = 25°C,
Ith +20mA		0.25------mW/mA
Side Mode Suppression Ratio
SMSR		CW, Iop = Ith + 20mA, Tc = -5°C ~ 85°C
35
---
---
dB
Peak WavelengthλCW, Iop = Ith + 20mA, Tc = 25°C154015501560nm
PD Dark CurrentIdVr = 5V------100nA
PD Monitor CurrentImCW, Ith + 20mA100---1000uA
PD Capacitance CpdVr = 5V@1MHz------10pF

Note: Tc = Module Case temperature
