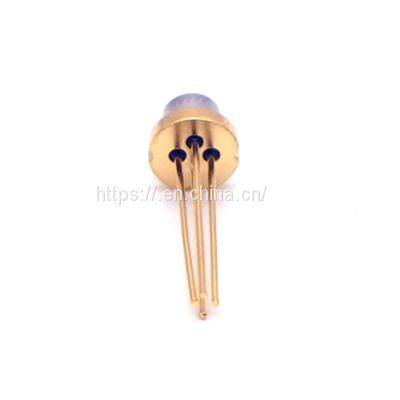

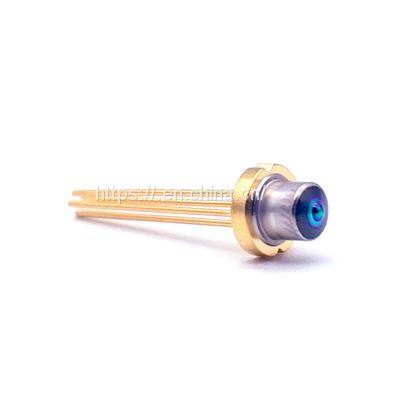

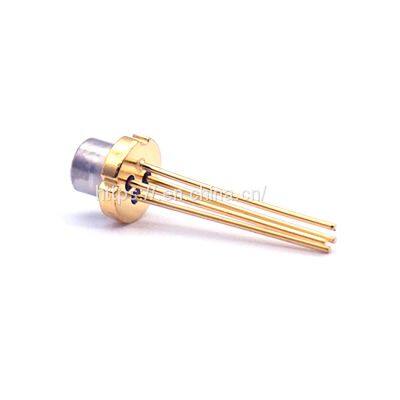

2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication

Lovi Semiconductor Technology (Jiaxing) Co., Ltd Business license
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication thumbnail-1
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication thumbnail-2
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication thumbnail-3
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication thumbnail-4
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication thumbnail-5
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication photo-1
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication photo-2
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication photo-3
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication photo-4
2.5Gbps 1550nm DFB Laser Diode TO 56 for Optical Communication photo-5
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOVI
Place of Origin:
China
Model Number:
LV02-DT55-5B11-E10
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LOVI
Place of Origin China
Model Number LV02-DT55-5B11-E10
2.5Gbps 1550nm DFB Laser TO 56 for optical communication
Lovi 2.5Gbps 1550nm DFB Laser TO-Can is designed for high performance optical communication applications as well as P to P applications.


Feature:

  • TO-56 packing (4 pins)

  • 6.5 mm focal length with 1.5mm Ball lens Cap


Table 1: Absolute Maximum Ratings


Parameter Symbol Min. Max.Unit
Storage TemperatureTstorage-40+85°C
Operating TemperatureTop-20+85°C
Solder Reflow TemperatureSTEM---260°C
Laser Reverse VoltageVr---2V
Laser Forward CurrentIf---100mA

Photodiode Forward Current		Ipd---10mA



Table2: Electrical and Optical Characteristics (T=25°C, unless note)Note: Tc = Module Case temperature


 Parameter Symbol Conditions Min. Typ. Max.Unit
Threshold Current
Ith		CW, Tc = 25°C---1015
mA
CW, Tc = 85°C---2335

Output Power 		PoCW, Ith + 20mA4.56---mW
Forward VoltageVfCW, Tc = 25°C,
Iop = 45mA		------2V
Slope Efficiency SECW, Tc = 25°C,
Ith +20mA		0.23------mW/mA
Side Mode Suppression Ratio
SMSR		CW, Iop = Ith + 20mA, Tc = -5°C ~ 85°C
35
---
---
dB
Peak WavelengthλCW, Iop = Ith + 20mA, Tc = 25°C154515501555nm

Note: Tc = Module Case temperature

Product Tags: Fiber Optic , Laser diode , TO56
