2.5Gbps 1310nm DFB Laser Diode TO56

Lovi Semiconductor Technology (Jiaxing) Co., Ltd Verified Business License
2.5Gbps 1310nm DFB Laser Diode TO56 thumbnail-1
2.5Gbps 1310nm DFB Laser Diode TO56 thumbnail-2
2.5Gbps 1310nm DFB Laser Diode TO56 thumbnail-3
2.5Gbps 1310nm DFB Laser Diode TO56 thumbnail-4
2.5Gbps 1310nm DFB Laser Diode TO56 thumbnail-5

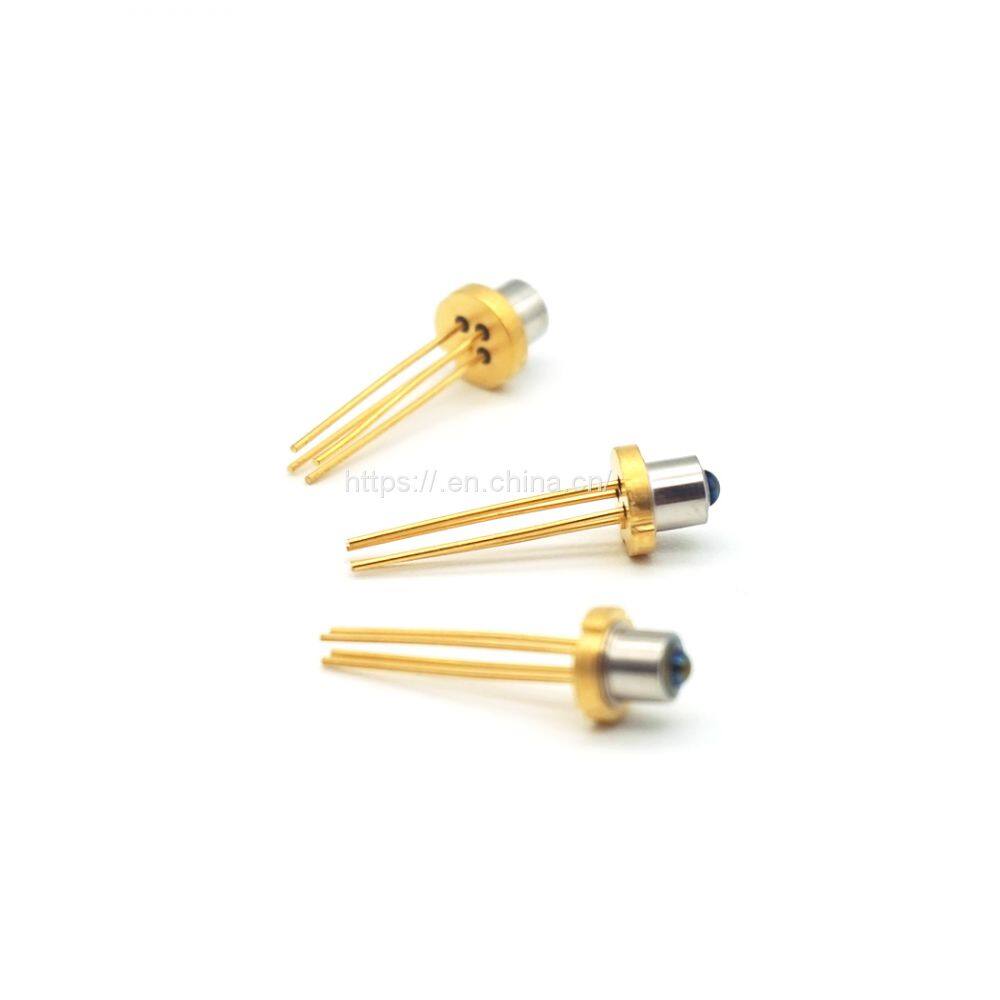

2.5Gbps 1310nm DFB Laser Diode TO56 photo-1

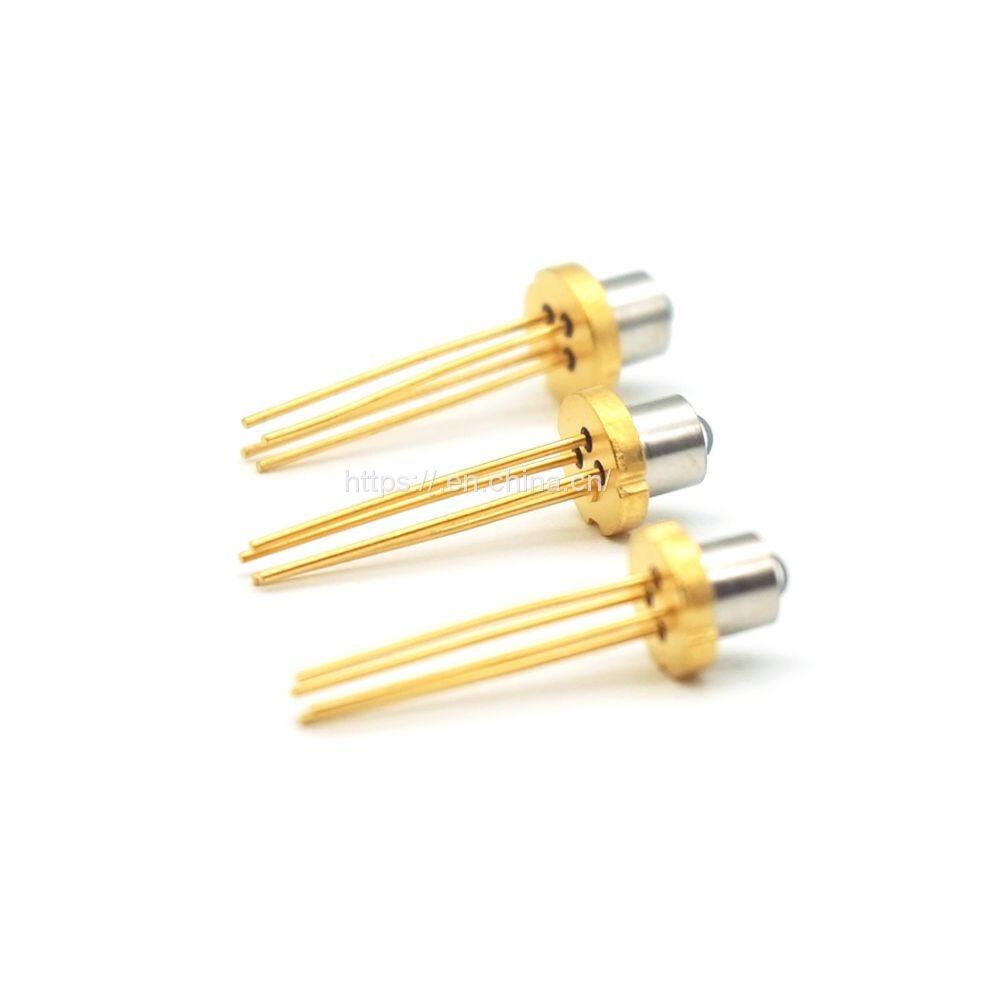

2.5Gbps 1310nm DFB Laser Diode TO56 photo-2
2.5Gbps 1310nm DFB Laser Diode TO56 photo-3
2.5Gbps 1310nm DFB Laser Diode TO56 photo-4

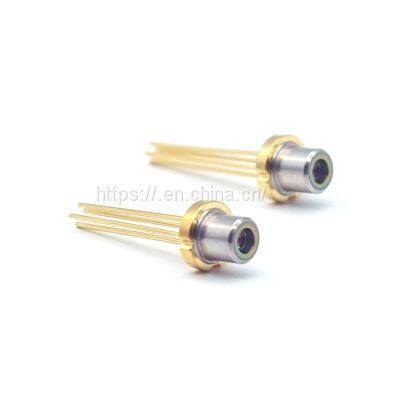

2.5Gbps 1310nm DFB Laser Diode TO56 photo-5
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOVI
Place of Origin:
China
Model Number:
LV02-DT31-5H21-C2
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LOVI
Place of Origin China
Model Number LV02-DT31-5H21-C2
Type Laser Diode
Package Type Other, TO56
2.5Gbps 1310nm DFB Laser TO56 4pin header for SFP module

Lovi 2.5Gbps 1310nm DFB Laser TO-Can is designed for high performance optical communication applications as well as GPON applications.


Feature:

  • TO-56 packing (4 pins)

  • 6.5 mm focal length with 2mm High Index Ball lens Cap

Table 1: Absolute Maximum Ratings


 ParameterSymbol Min.Max. Unit
Storage TemperatureTstorage-40+85°C
Operating TemperatureTop0+70°C
Solder Reflow TemperatureSTEM---260°C
Laser Reverse VoltageVr---2V
Laser Forward CurrentIf---100mA
Photodiode Forward CurrentIpd---2mA
Photodiode Reverse VoltageVr---20V


Table2: Electrical and Optical Characteristics (T=25°C, unless note)Note: Tc = Module Case temperature


 Parameter Symbol Conditions Min. Typ. Max. Unit


Threshold Current
Ith		CW, Tc = 25°C---714
mA
CW, Tc = 70°C---1525
Output PowerPoCW, Ith + 20mA79---mW
Forward Voltage VfCW, Tc = 25°C,
Iop = 45mA		------2V
Slope EfficiencySECW, Tc = 25°C,
Ith + 5mA to Ith + 35mA		0.35------mW/mA

Side Mode Suppression Ratio
SMSR		CW, Iop = Ith + 20mA, Tc = -5°C ~ 70°C
35
---
---
dB

Resistance		RsIop = Ith + 20mA---9.5---Ω

Peak Wavelength 		λCW, Iop = Ith + 20mA, Tc = 25°C130013101320nm

PD Dark Current		IdVr = 5V------100nA

PD Monitor Current		ImCW, Ith + 20mA150---950uA

PD Capacitance		CpdVr = 5V@1MHz------15pF

Note: Tc = Module Case temperature
