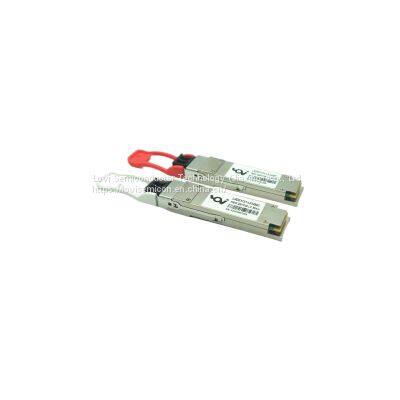

Optical Fiber RoHS Compliant 100G QSFP28 ER4 40km Transceiver

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Payment TermsT/T PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

100Gb/s QSFP28 ER4 Transceiver

Description

LVDG1131-L31240x2 optical Transceiver is a 100Gb/s transceiver module designed for optical communication applications compliant to Ethernet 100GBASE-ER4 standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

Features

Compliant to Ethernet 100GBASE-ER4
Supports 103.125Gb/s aggregate bit rate
Transmitter: cooled 4x25Gb/s LAN WDM
TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s APD ROSA
Up to 40km reach for G.652 SMF
Built-in 4-channel Clock and Data Recovery

(CDR) in TX and RX

Duplex LC optical receptacle
4x25G electrical interface (OIFCEI-28G-VSR)
RoHS-10 compliant and lead-free
Single +3.3V power supply
Maximum power consumption 4.5W
Operating case temperature

Commercial: 0 ~ +70ºC
Extended: -5 ~ +85ºC
Industrial: -40 ~ +85ºC

Applications

100GBASE-ER4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections

Table 1 - Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	Ts	-40	85	ºC
Power Supply Voltage	Vcc	-0.3	4.0	V
Relative Humidity (non-condensation)	RH	0	85	%
Damage Threshold	THd	-3.0	---	dBm
Operating Case Temperature	Top	0	70	ºC
		-5	85
		-40	85

Table 2 - Recommended Operating Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit	Notes
Power Supply Voltage	V_cc	3.135	3.3	3.465	V
Date Rate	---	---	25.78125	---	Gb/s
Control Input Voltage High	---	2	---	Vcc	V
Control Input Voltage Low	---	0	---	0.8	V
Link Distance (SMF)	D	---	---	40	km	1
