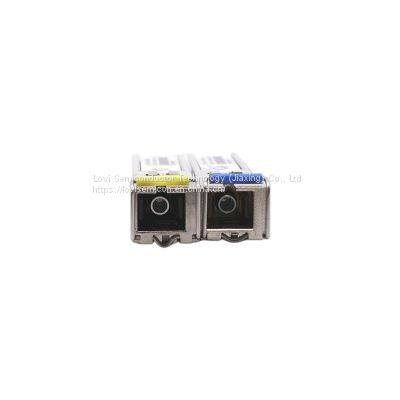

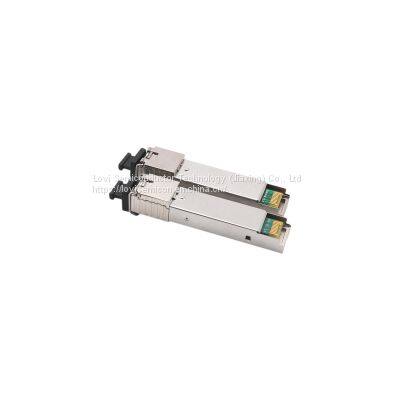

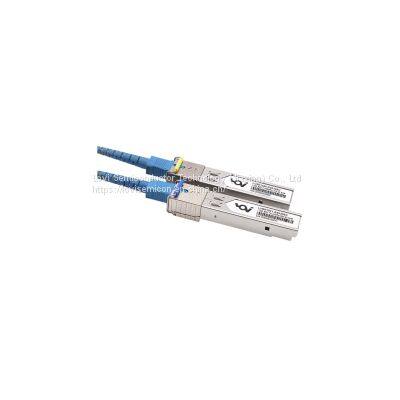

1.25Gbps SFP BiDi Transceiver 5km Reach
1550nm TX / 1310nm RX
Features:
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 2km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Dual data-rate of 1.25Gbps/1.063Gbps operation
1550nm FP laser and PIN photodetector for 5km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature: Standard: 0 to +70°C
Applications:
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Table 1 - Absolute Maximum Ratings
Table 2 - Recommended Operating Conditions
