10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module

10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module thumbnail-1
10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module thumbnail-2
10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module thumbnail-3
10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module thumbnail-4
10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module thumbnail-5
10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module photo-1
10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module photo-2

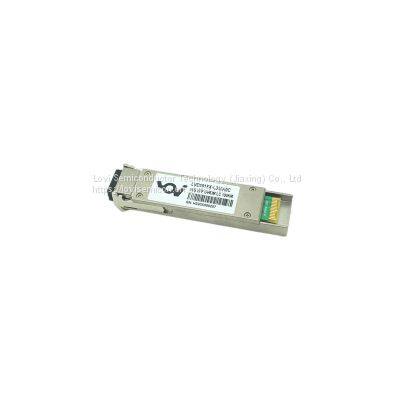

10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module photo-3

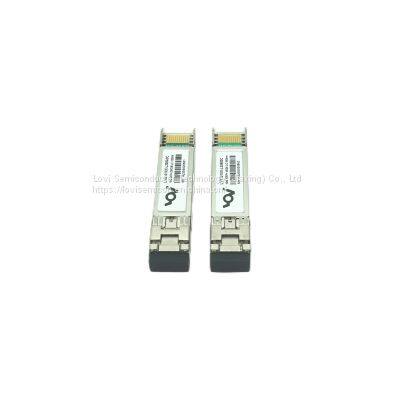

10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module photo-4

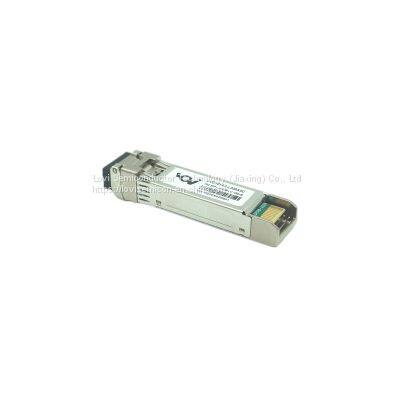

10Gb/s SFP+ DWDM 100km SFP Transceiver Fiber Optical Module photo-5
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2020
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Lovi Semiconductor Technology (Jiaxing) Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

10Gb/s SFP+ DWDM 100km Optical Transceiver Module

Features:

  • Up to 11.3Gb/s data links

  • DWDM EML transmitter and APD receiver

  • 100 GHz ITU channel spacing with integrated wavelength locker

  • Up to 100km on 9/125µm SMF

  • Hot-pluggable SFP+ footprint

  • Duplex LC/UPC type pluggable optical interface

  • RoHS-10 compliant and lead-free

  • Support Digital Diagnostic Monitoring interface

  • Single +3.3V power supply

  • Compliant with SFF+MSA and SFF-8472

  • Metal enclosure, for lower EMI

  • Meet ESD requirements, resist 8KV direct contact voltage

  • Case operating temperature

  • Commercial: 0 ~ +70ºC

  • Extended: -10 ~ +80ºC

  • Industrial: -40 ~ +85ºC

Applications:

  • 10GBASE-ZR/ZW & 10G Ethernet

  • SDH STM64

  • Other Optical Links

Table 1 - Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit
Supply Voltage Vcc -0.5 3.6 V
Storage Temperature Ts -40 +85 °C
Relative Humidity
(non-condensation) 		RH 5 +95 %
Damage Threshold THd 0 --- dBm
Operating Case Temperature Top 0 70 °C
-10 80
-40 85


 Table 2 - Recommended Operating Conditions


Parameter Symbol Min. Typ. Max. Unit Notes
Power Supply Voltage Vcc 3.135 3.3 3.465 V
Date Rate --- --- 10.315 --- Gbps
Control Input Voltage High --- 2 --- Vcc V
Control Input Voltage Low --- 0 --- 0.8 V
Link Distance (SMF) D --- --- 100 km 9/125um
