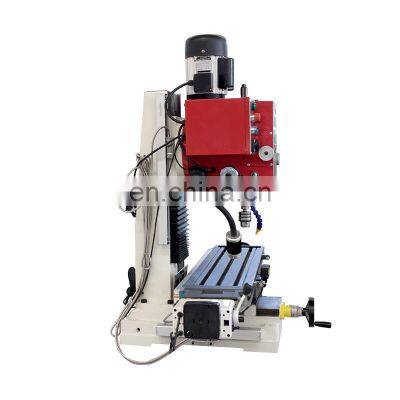

ZAY7045FG-1 Swivel Head Manual Milling Machine With Auto Feeding Function.
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7045FG 1 Drilling and Milling Machine ManufacturersNegotiableMOQ: 1 -
Z3050x16 Heavy Duty Hydraulic Radial Drilling Machine With Supporting ColumnNegotiableMOQ: 1
-
ZAY7013V Drilling and Milling for Hobby User From ChinaNegotiableMOQ: 1
-
ZAY7045V-1 Z Axis Auto-feeding Table Milling Machine Mini With Variable SpeedNegotiableMOQ: 1
-
ZAY7040V Variable Speed Gear Driven Drilling MachineNegotiableMOQ: 1
Manual Milling Machine ZAY7045FG-1
Spindle Auto-feedMilling ,drilling, tapping,boring,reaming; Head swivels ±90°verticaly; Spindle micro feed precision; Adjustable gibs on table precision;
Accurate position ,strong rigidity , powerful cutting;
Gear-driven type and square column.
Accurate position ,strong rigidity , powerful cutting;
Gear-driven type and square column.
Specification | ZAY7032FG/1 | ZAY7040FG/1 | ZAY7045FG/1 | ZAY7045M | |||
Drilling capacity | Φ32mm | Φ40mm | Φ45mm | Φ45mm | |||
Face milling capacity | Φ63mm | Φ80mm | Φ80mm | Φ80mm | |||
End milling capacity | Φ20mm | Φ32mm | Φ32mm | Φ32mm | |||
Distance from spindle nose to table | 450mm | 450mm | 450mm | 420mm | |||
Min.distance from spindle axis to column | 260mm | ||||||
Spindle travel | 130mm | ||||||
Spindle taper | MT3 MT4 or R8 | ||||||
Auto-feeding Step of spindle | 6 steps | ||||||
Auto-feeding amount of spindle | 0.06-0.30mm/r | ||||||
Range of spindle speed 50Hz | 80-1250 r.p.m | ||||||
60Hz | 95-1500 r.p.m | ||||||
Swivel angle of headstock (vertical) | ±45° | ||||||
Table size | 800×240mm | ||||||
Forward and backward travel of table | 175mm | ||||||
Left and right travel of table | 500mm | ||||||
Motor Power | 1.5kw | ||||||
N.W/G.W | 320/370kgs | ||||||
Packing size | 770×880×1160mm | ||||||
