Home > Products > DRILL/MILL/BORING/TAPPING > ZAY7045V-1 Z axis auto-feeding table milling machine mini with variable speed

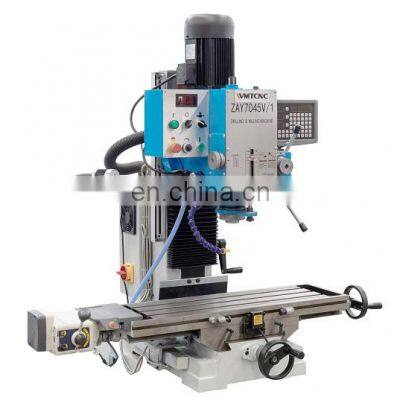

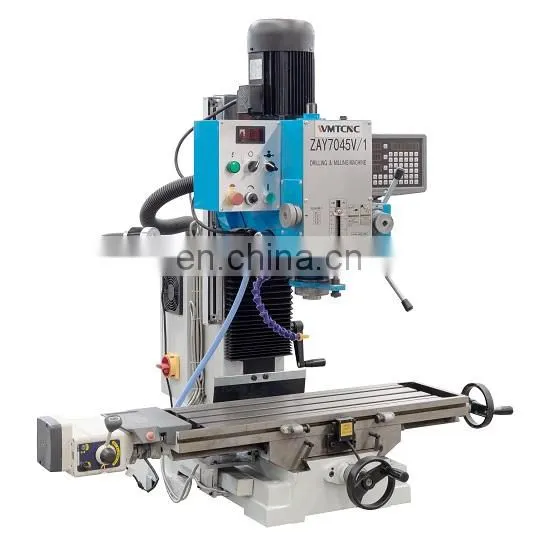

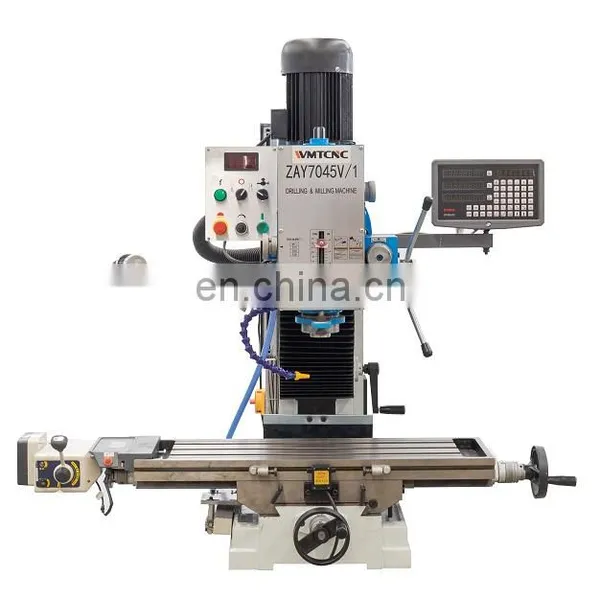

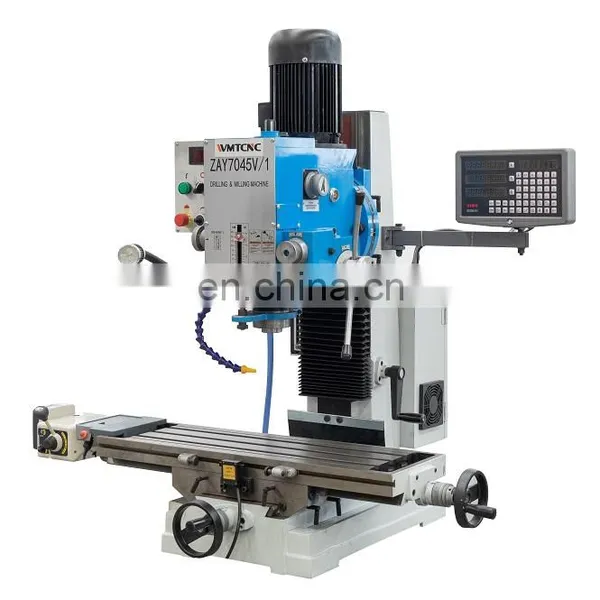

ZAY7045V-1 Z axis auto-feeding table milling machine mini with variable speed
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
ZAY7040V Variable speed gear driven drilling machine
-
ZAY7045G round column gear driven manual drilling and milling machine
-
ZAY7020VL vertical mini manual drilling and milling machine with longer worktable
-
ZAY7025V variable speed small milling and drilling machine for metal working
-
ZX7550ZW universal milling machine with CE
-
ZX7550CW Universal milling machinery cheap milling drilling machine with CE
Product Description
Product Description
Milling and Drilling Machine Main Features:
1. Variable speed;
2. Milling, drilling, tapping, boring and reaming;
3. Head swivels ±45°vertically;
4. Micro feed precision;

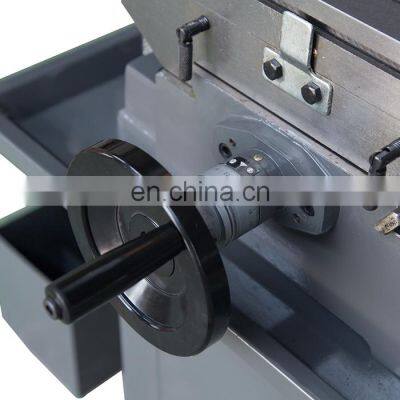

5. Adjustable gibs on table;
6. Strong rigidity, powerful cutting and precise positioning.
Specification | ZAY7032V/1 | ZAY7040V/1 | ZAY7045V/1 | ||
Max.Drilling capacity | 32mm | 40mm | 45mm | ||
Max. face mill capacity | 63mm | 63mm | 80mm | ||
Max. end mill capacity | 20mm | 20mm | 32mm | ||
Distance from spindle nose to table | 450mm | ||||
Min. distance from spindle axis to column | 260mm | ||||
Spindle travel | 130mm | ||||
Spindle taper | MT3 or R8 | MT3 or R8 | MT4 or R8 | ||
Range of spindle speed(2 steps) | 100-530, 530-2800rpm | ||||
Auto-feeding steps of spindle | 6 steps | ||||
Auto-feeding amount of spindle | 0.06-0.30mm/r | ||||
Swivel angle of headstock(perpendicular) | ±90° | ||||
Table size | 800×240mm | ||||
Forward and backward travel of table | 175mm | ||||
Left and right travel of table | 500mm | ||||
Motor power(DC) | 1.1kw | 1.1kw | 1.5kw | ||
N.W/G.W | 320/370kgs | 320/370kgs | 325/375kgs | ||
Packing size(L*W*H) | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm | ||
Loading amount/20" container | 36pcs | ||||

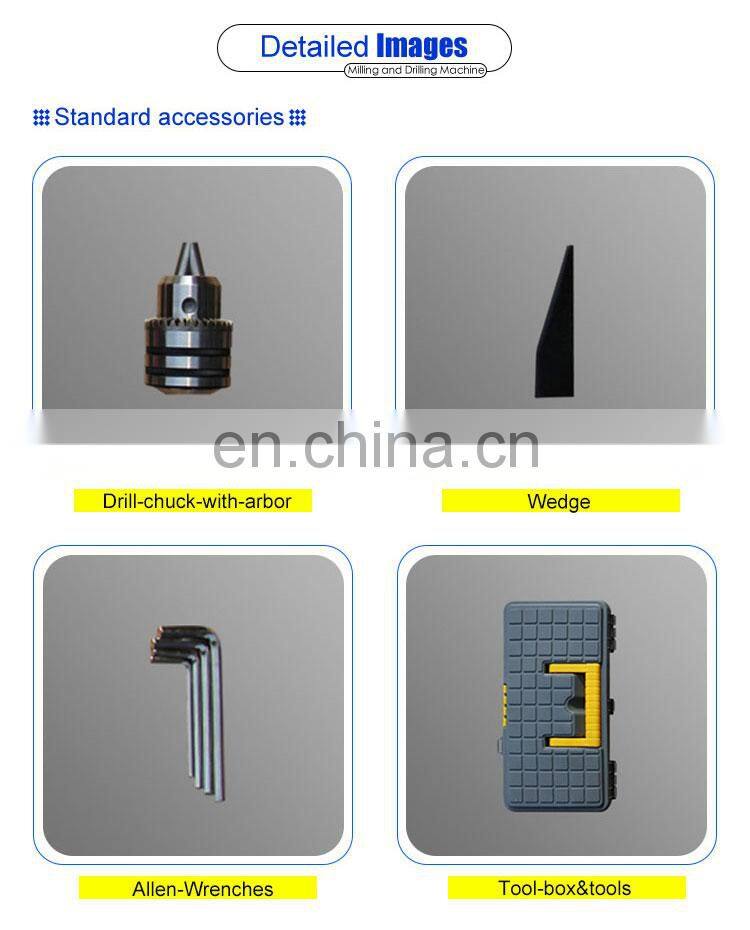

Standrad accessories:
1. Drill chuck 1-13mm/B16;
2. Draw bar;
3. Allen wrenchs;
4. Wedge;
5. Tie rod
Optional accessories:
1. Steel stand and chip tray ;
2. Halogen lamp;
3. Coolant system;
4. 58pcs clamping kits;
5. Face milling cutter diameter 63mm; 6. Milling chuck(8pcs/set);
7. DRO(2-axis or 3-axis)(for FG and FG-1 serials) ; 8. H/V precision rotary table HV-150mm
9. Table power feed X axis (Except for belt driven type); 10. Double speed motor

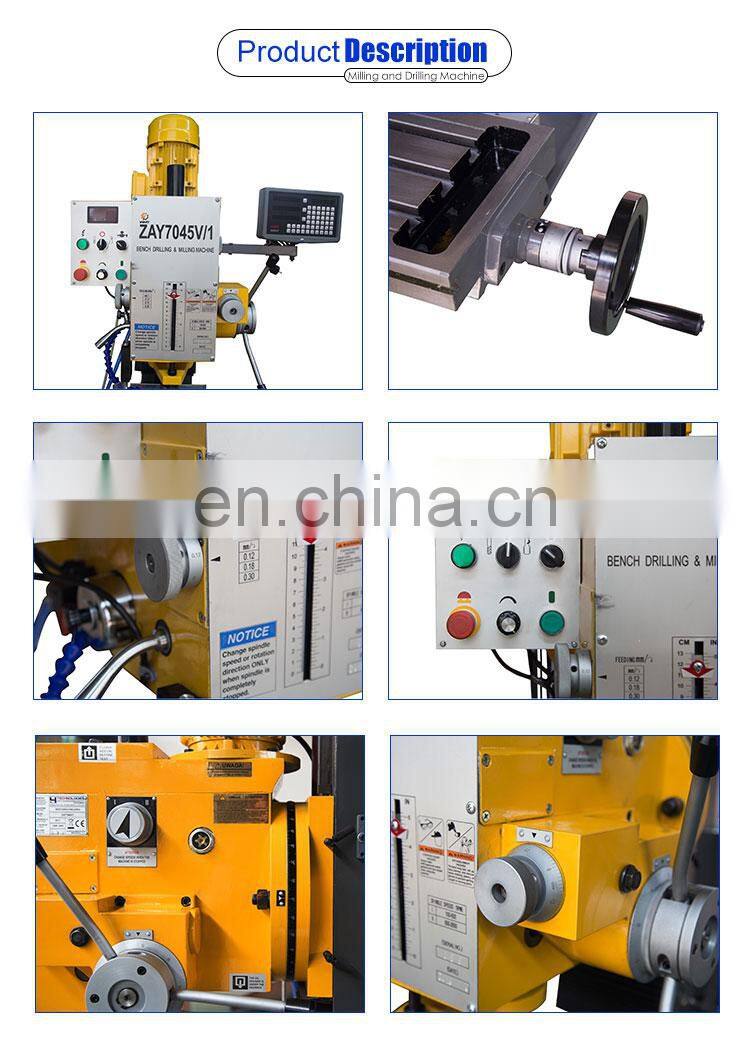

Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
