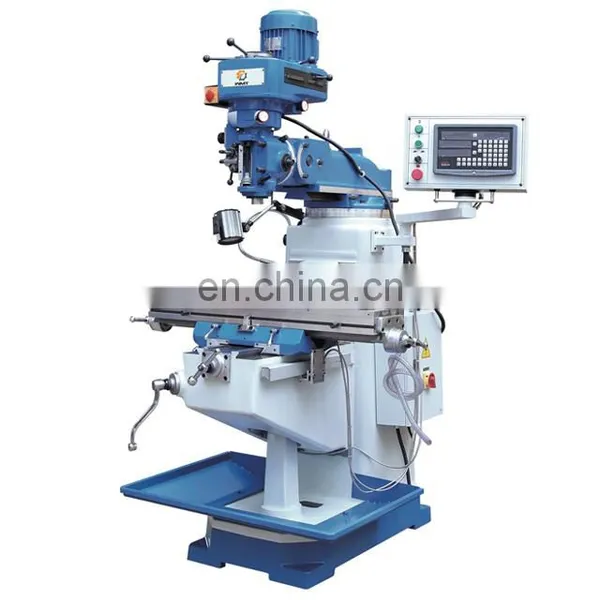

Table Milling Machine Metal Universal Vertical Turret Milling Machine X6323 With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manual Mills Mini Universal Milling Machine ZX6350ZA With X/Y/Z Axis Auto-feedingNegotiableMOQ: 1 -
ZX6350ZA Manual Universal Milling Machines Made in China for Metal Milling FunctionNegotiableMOQ: 1
-
ZX50C Dia.50mm Hot Sales Combination Lathe Milling Drilling Machines Milling for MetalworkingNegotiableMOQ: 1
-
High Precision XL5032 Drill Press Machine Vertical for Metal WorkingNegotiableMOQ: 1
-
XL6436CL High Rigid Metal Universal Milling MachineNegotiableMOQ: 1
Products Description
Main features：
Rectangular guideway on Y and Z axis makes the machine stable and rigid.
The guideway on saddle is lined with TF wearable material.
Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
The guideway on saddle is lined with TF wearable material.
Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
Specificaiton |
X6323 |
X6325 |
X6330 |
||
Table size |
1067×230mm (Optional:1270×230mm) |
1270×254mm (Optional:1370×254mm) |
1370×305mm |
||
T-slotes (No./Width/Pitch) |
3/16/63mm |
3/16/65mm |
3/16/65mm |
||
Table travel (X/Y/Z) |
600×320×400mm |
800×400×400mm |
850×400×450mm |
||
Distance between spindle nose and table surface |
60-460mm |
0-460mm |
|||
Spindle speed |
66-4540rpm |
||||
Main motor power |
3HP |
5HP |
|||
Spindle taper |
R8 or NT30 |
NT40 |
|||
Travel of spindle sleeve |
127mm |
||||
Arm travel |
300mm |
400mm |
500mm |
||
Feed of spindle sleeve |
0.04/0.08/0.15mm/r |
||||
Milling head rotation |
swivel:45° tiltle:90° |
||||
Machine overall size (L*W*H) |
1500×1400×2150mm |
1700×1600×2150mm |
1750×1650×2150mm |
||
NW/GW |
950kgs |
1200kgs |
1350kgs |
||
Company profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
