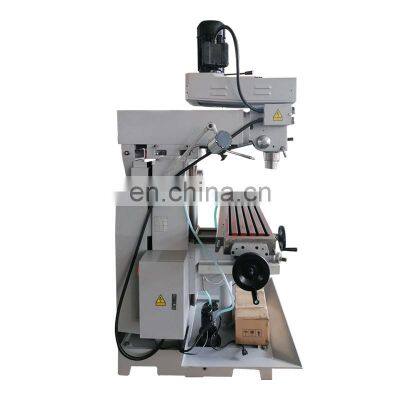

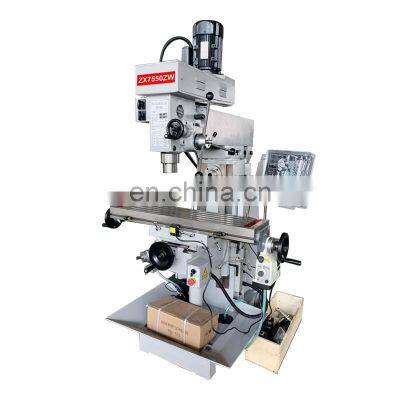

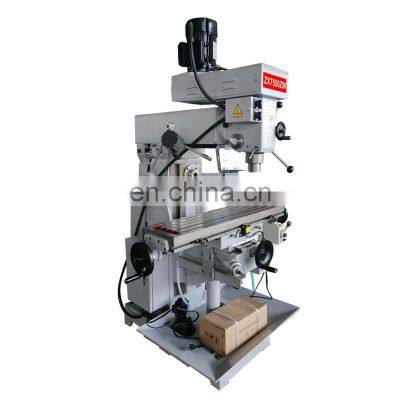

Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > ZX7550ZW Universal Milling Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZX7550CW Universal Milling Machinery Cheap Milling Drilling Machine With CENegotiableMOQ: 1 -
XA7150 Bed-type Conventional Vertical Universal Bench Milling MachineNegotiableMOQ: 1
-
Table Milling Machine Metal Universal Vertical Turret Milling Machine X6323 With CENegotiableMOQ: 1
-
Manual Mills Mini Universal Milling Machine ZX6350ZA With X/Y/Z Axis Auto-feedingNegotiableMOQ: 1
-
ZX6350ZA Manual Universal Milling Machines Made in China for Metal Milling FunctionNegotiableMOQ: 1
ZX7550CW Vertical Milling Machine Feature:
1.Rectanger guide way,better stbility
2.Headstocck swivels ±90ºWorktable turns ±45º
Easily changing from vertical milling to horizontal milling
3.Worktable can be automatically feed in X axis ,and equipped with "quick-reverse"unit to realize high efficiency in working
4.ZX5325C Vertical milling is gear-driven
5.ZX7550CW Vertical milling is gear-driven ;Horizontal milling is belt-driven.
6.ZX7550ZW Vertical milling spindle can be auto feeding based on ZX7550CW
Specification | ZX7550CW | ZX7550ZW | ||
Max.drilling dia | Φ50mm | Φ50mm | ||
Max.horizontal milling dia. | Φ100 | Φ100 | ||
Max.vertical milling dia. | Φ25mm | Φ25mm | ||
Max.boring dia. | Φ120mm | Φ120mm | ||
Spindle taper | ISO30, R8, MT4 | |||
Spindle speeds range) | V:115- 1750rpm(8) H:60-1350(8) | V:60-1500rpm(8) H:60-1350(8) | ||
Spindle travel | 120mm | 120mm | ||
Table size | 240×1000mm | 240×1000mm | ||
Table travel | 400×230×350mm | 400×230×350mm | ||
Main motor power (V/H) | V:0.85/1.5 H:2.2mm | V:1.5kw H:1.5kw | ||
Packing size | 1140×1120×2220(1 unit/PKG) 1140×1220×2220(2 units/PKG) | 1140×1120×2220(1 unit/PKG) 1140×1220×2220(2 units/PKG) | ||
N.W/G.W | 850kg/1000kg | 900kg/1050kg | ||
Standard Accessories:
160mm machine vice,Reduction sleeve, Wrenches, Milling chuck and Drill chuck
