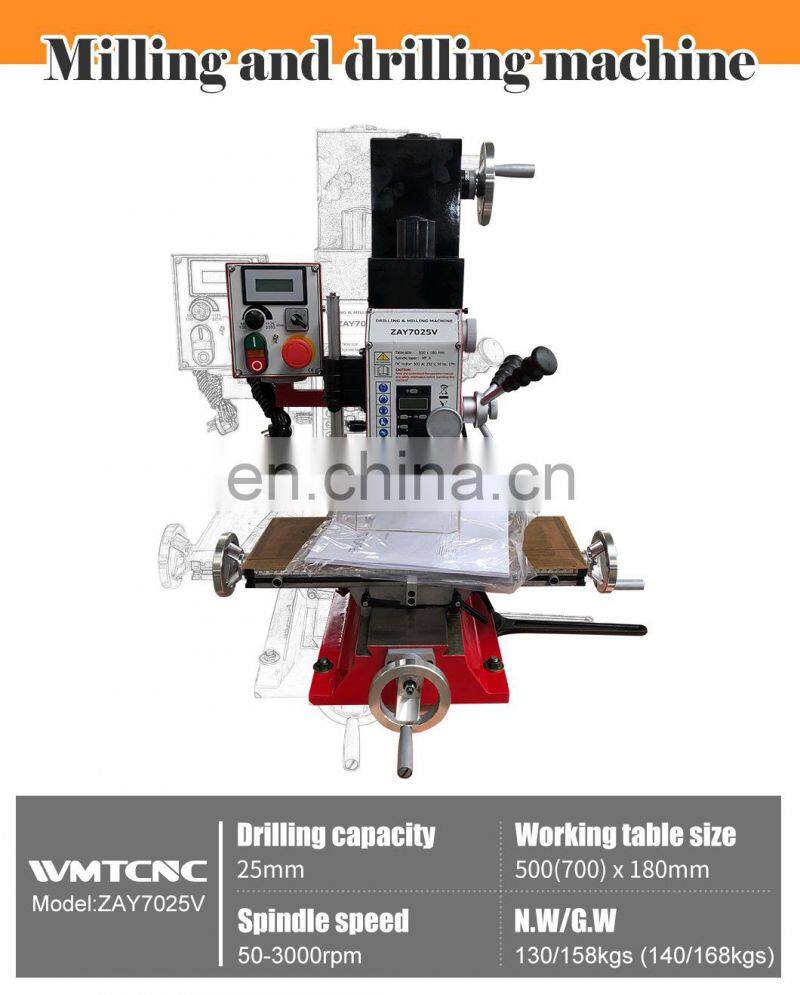

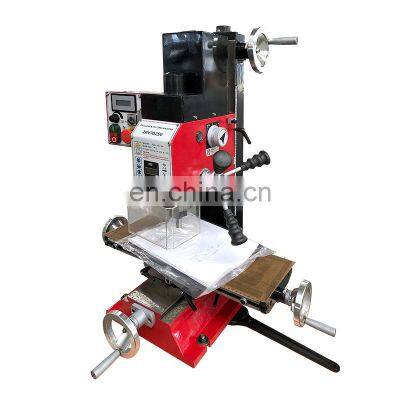

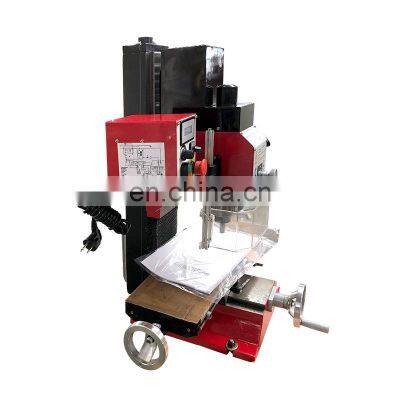

ZAY7025V Variable Speed Small Milling and Drilling Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZX7550ZW Universal Milling Machine With CENegotiableMOQ: 1 -
ZX7550CW Universal Milling Machinery Cheap Milling Drilling Machine With CENegotiableMOQ: 1
-
XA7150 Bed-type Conventional Vertical Universal Bench Milling MachineNegotiableMOQ: 1
-
Table Milling Machine Metal Universal Vertical Turret Milling Machine X6323 With CENegotiableMOQ: 1
-
Manual Mills Mini Universal Milling Machine ZX6350ZA With X/Y/Z Axis Auto-feedingNegotiableMOQ: 1
Product Description
Main Features:
High precision bored and honed milling head.
Precision ground worktable.
Tilting and swiveling head.
With Mirco-feed handwheel and lever down feed.
Adjustable gibs and stops on table.
Accurate position, strong rigidity, strong cutting power.
Gear drive, lower noise.
Specification:
Specification | ZAY7020V | ZAY7025V |
Drilling capacity | 20mm | 25mm |
Max. face mill capacity | 63mm | 80mm |
Max. end mill capacity | 20mm | 25mm |
Max. distance spindle to table | 355mm | 355mm |
Working table size | 500(700) x 180mm | 500(700) x 180mm |
Spindle rotary angle | ±45° | ±45° |
Spindle taper | MT2 | MT3 |
Spindle speed | 50-2250rpm | 50-3000rpm |
Sleeve stroke | 50mm | 50mm |
X-axis travel | 290/490mm | 290/490mm |
Y-axis travel | 180mm | 180mm |
Z-axis travel | 380mm | 360mm |
Motor power | 600w | 750w |
N.W/G.W | 118/138kgs (130/160kgs) | 130/158kgs (140/168kgs) |
Packing size (LxWxH) | 610(810)×560×880 mm | 620(770)×720×910mm |
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
