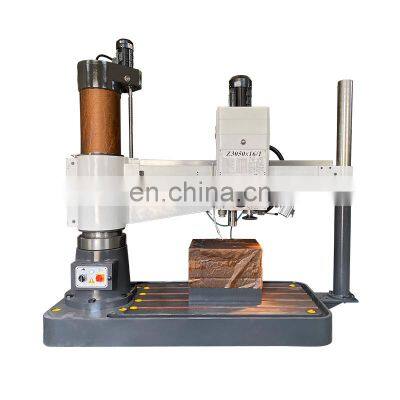

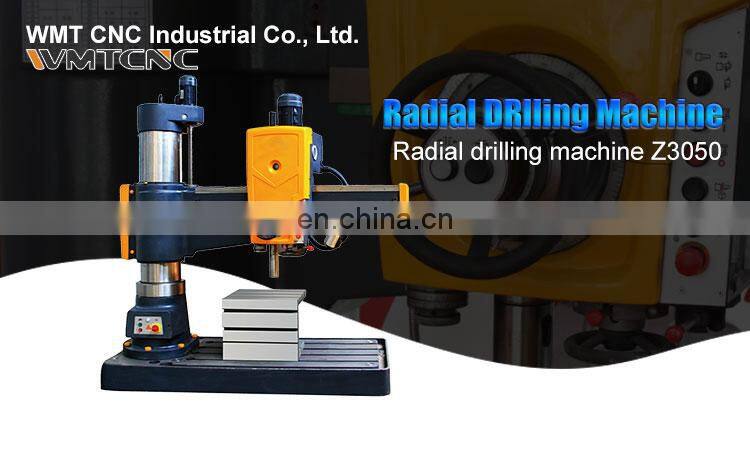

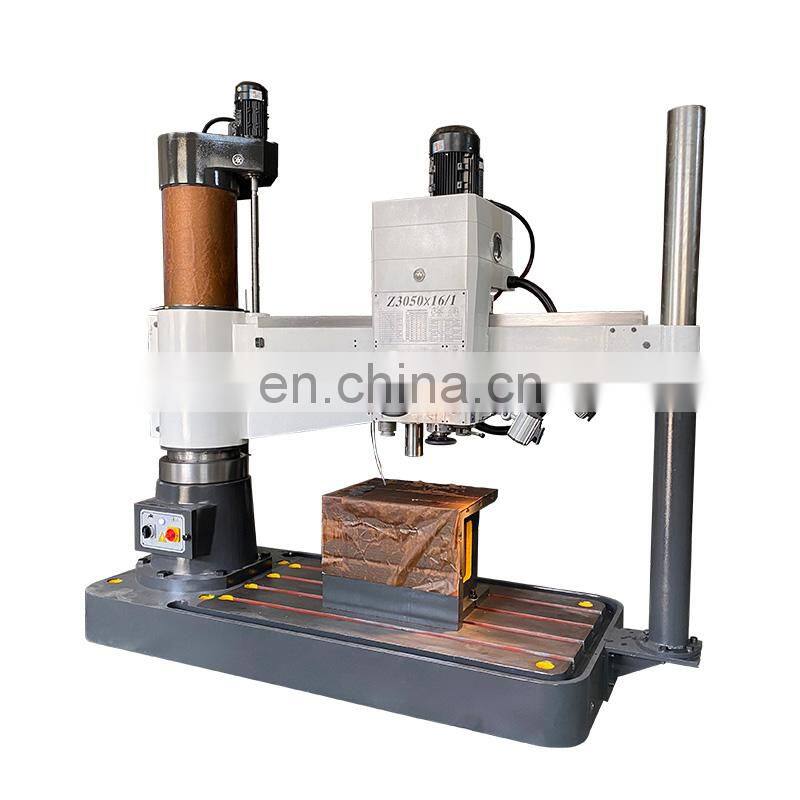

Z3050x16 Heavy Duty Hydraulic Radial Drilling Machine With Supporting Column
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7013V Drilling and Milling for Hobby User From ChinaNegotiableMOQ: 1 -
ZAY7045V-1 Z Axis Auto-feeding Table Milling Machine Mini With Variable SpeedNegotiableMOQ: 1
-
ZAY7040V Variable Speed Gear Driven Drilling MachineNegotiableMOQ: 1
-
ZAY7045G Round Column Gear Driven Manual Drilling and Milling MachineNegotiableMOQ: 1
-
ZAY7020VL Vertical Mini Manual Drilling and Milling Machine With Longer WorktableNegotiableMOQ: 1
Features:
1.Radial drilling machine
2.Transmission:Mechanical transmission
3.Max. drilling diameter:50mm
4.Spindle taper:Morse 5
5.Spindle travel:300mm
Specification | Unit | Z3050×16 |
Max. drilling diameter | mm | 50 |
Distance between spindle axis and column | mm | 350-1600 |
Distance spindle nose and work surface of base | mm | 320-1220 |
Rocker arm lifting distance | mm | 580 |
Rocker arm lifting speed | m/s | 0.02 |
Spindle travel | mm | 315 |
Spindle taper | Morse | 5 |
Range of spindle speeds | r/min | 25-2000 |
Number of spindle speeds | step | 16 |
Range of spindle feeds | mm/r | 0.04-3.20 |
Number of spindle feeds | step | 16 |
The maximum torque of the spindle | N.M | 500 |
Spindle maximum feed resistance | N | 18000 |
Table size | mm | 630×500 |
The spindle box of horizontal moving distance | mm | 1250 |
Spindle motor power | kw | 4 |
Hydraulic clamping motor power | kw | 0.75 |
Cooling pump motor power | kw | 0.09 |
Arm lift motor power | kw | 1.5 |
Machine weight | kg | 3500 |
Overall dimension | mm | 2500×1070×2840 |
