ZX50C Dia.50mm Hot Sales Combination Lathe Milling Drilling Machines Milling for Metalworking
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Precision XL5032 Drill Press Machine Vertical for Metal Working
-
XL6436CL High Rigid Metal Universal Milling Machine
-
ZX32G 32mm Manual Milling Machine for Metal Working
-
Vertical Drill Machines Z5032 Z5040 Z5045 With CE
-
Model 5-16A Electrical Tapping Machine
-
Manual Mills ZAY7013V Small Bench Top Milling Machine Troncatrice per Ferro 220v
Product Description
Related Products
Product Description

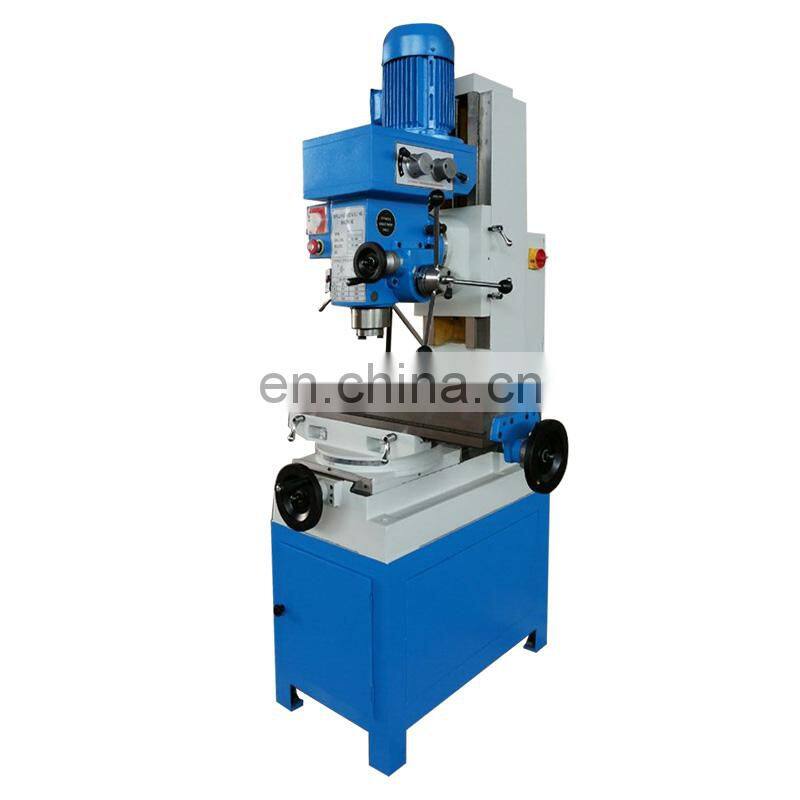

Drilling/Milling Machine ZX50C Features
1. Milling drilling,tapping boring,reaming.
2. Head swivels±90°verticaly.
3. Accurate position,strong rigidity,powerful cutting.
Specifications | ZX50C |
Max.drilling dia. | 50mm |
Max. end milling capacity | 100mm |
Max. face milling capacity | 32mm |
Spindle taper | MT4/R8 |
Spindle speeds range | (8step)115-1750rpm |
Spindle travel | 120mm |
Max.distance from spindle nose to worktable | 380mm |
Dia. of column | square |
Table size | 800*240mm |
Table travel | 400*230mm |
Main motor power | 1.5kw |
N.W./G.W. | 470kg/550kg |
Packing size(mm)1set | 1050*1050*1850 |
Packing size(mm)2sets | 1100*1150*1850 |

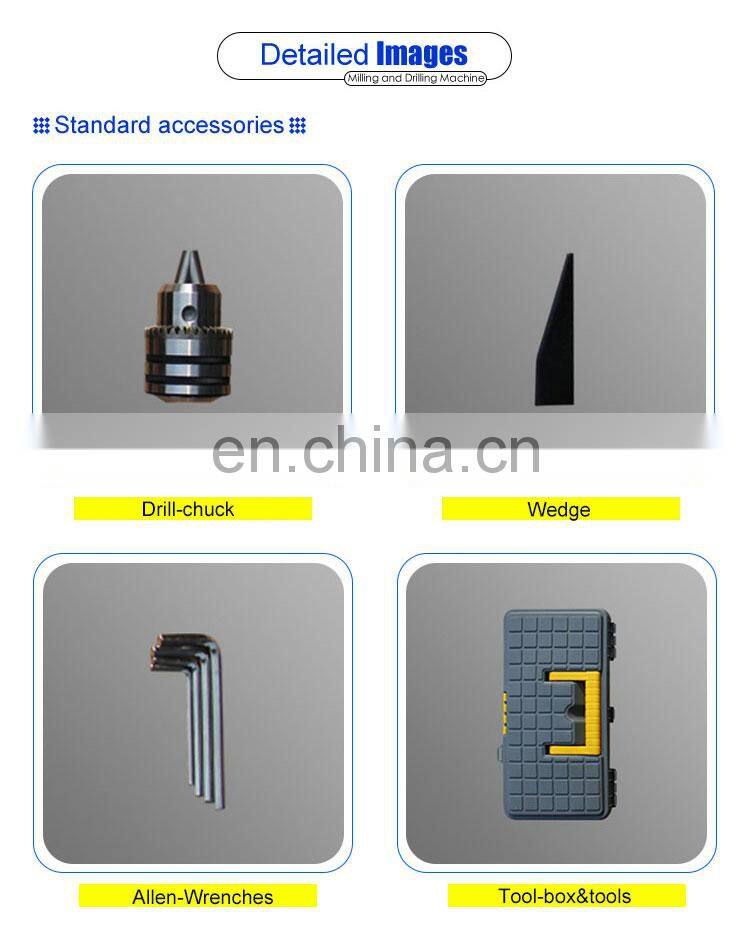

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
