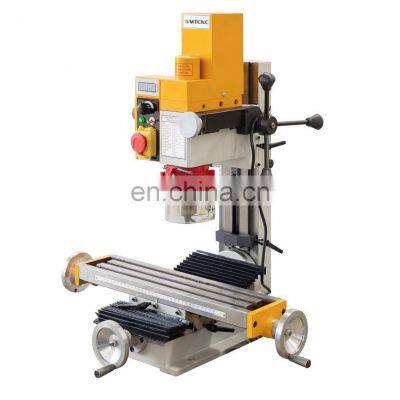

Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > ZAY7013V Drilling and Milling for Hobby User From China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7045V-1 Z Axis Auto-feeding Table Milling Machine Mini With Variable SpeedNegotiableMOQ: 1 -
ZAY7040V Variable Speed Gear Driven Drilling MachineNegotiableMOQ: 1
-
ZAY7045G Round Column Gear Driven Manual Drilling and Milling MachineNegotiableMOQ: 1
-
ZAY7020VL Vertical Mini Manual Drilling and Milling Machine With Longer WorktableNegotiableMOQ: 1
-
ZAY7025V Variable Speed Small Milling and Drilling Machine for Metal WorkingNegotiableMOQ: 1
Features:
Variable speed
Spindle micro feed
DC motor
Positive spindle lock
Imported speed control unit
XJ9512 MINI milling machine | ||
Technical spec. | ZAY7013V | |
Max. Drilling capacity | 13mm | |
Max face mill capacity | 16mm | |
Max end mill capacity | 30mm | |
Max. distance from spindle to table | 300mm | |
Working table size | 460x110mm | |
Swivel angle of headstock | +_45 degree | |
Spindle taper | MT3/R8 | |
Spindle speed | L:50-1100RPM;H:120-2500RPM | |
X-axis travel | 300mm | |
Y-axis travel | 130mm | |
Z-axis travel | 220mm | |
Motor power | 550W/brushless motor | |
N.W./G.W. | 65/85KGS | |
Packing size(LXWXH) | 570x550x850mm | |
