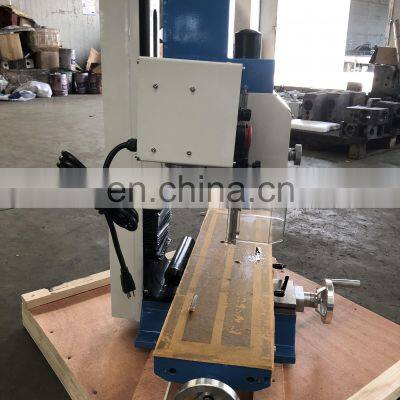

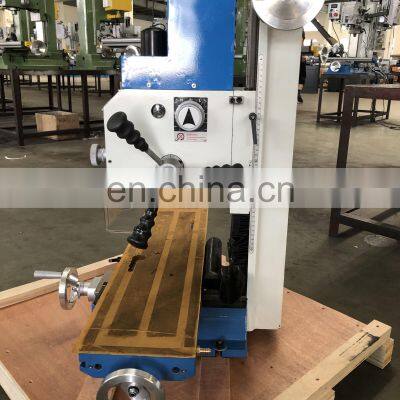

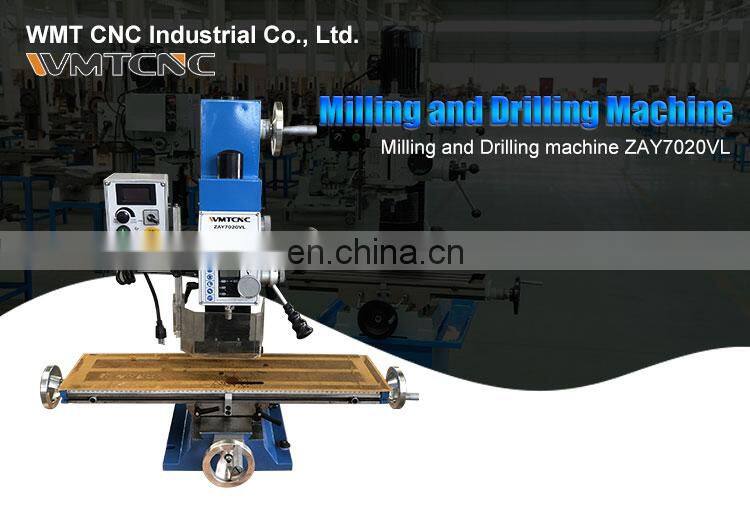

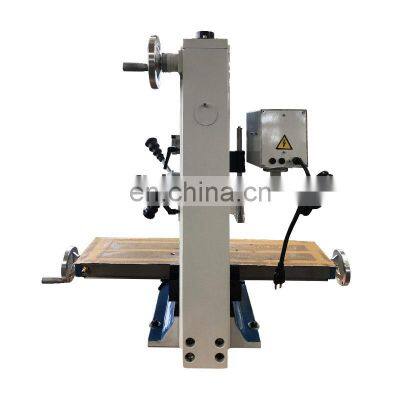

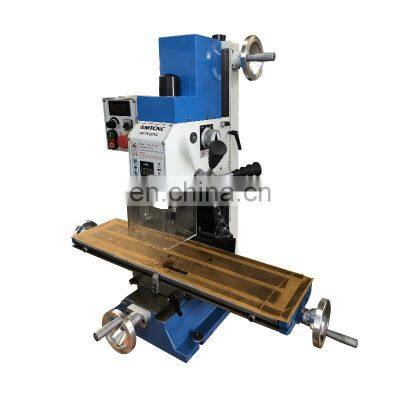

ZAY7020VL Vertical Mini Manual Drilling and Milling Machine With Longer Worktable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7025V Variable Speed Small Milling and Drilling Machine for Metal WorkingNegotiableMOQ: 1 -
ZX7550ZW Universal Milling Machine With CENegotiableMOQ: 1
-
ZX7550CW Universal Milling Machinery Cheap Milling Drilling Machine With CENegotiableMOQ: 1
-
XA7150 Bed-type Conventional Vertical Universal Bench Milling MachineNegotiableMOQ: 1
-
Table Milling Machine Metal Universal Vertical Turret Milling Machine X6323 With CENegotiableMOQ: 1
Specification:
Model |
ZAY7020VL |
Drilling capacity |
20mm |
Face milling capacity |
63mm |
End milling capacity |
20mm |
Distance from spindle nose to table |
355mm |
Min.distance from spindle axis to column |
181.5mm |
Spindle stroke |
50 mm |
Spindle taper |
M.T.2 |
Step of spindle speed |
12 |
Range of spindle speed 50Hz |
50-2250 r.p.m |
Swivel angleof headstock (horizontally) |
360° |
Table size |
700X180 mm |
Forward and backward travel of table |
140mm |
Left and right travel of table |
490mm |
Motor Power |
0.85KW |
Net weight/gross weight |
130KGS/160KGS |
Packing size |
810×560×880 mm |
