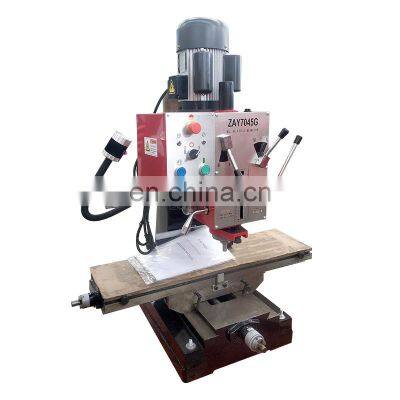

ZAY7045G Round Column Gear Driven Manual Drilling and Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7020VL Vertical Mini Manual Drilling and Milling Machine With Longer WorktableNegotiableMOQ: 1 -
ZAY7025V Variable Speed Small Milling and Drilling Machine for Metal WorkingNegotiableMOQ: 1
-
ZX7550ZW Universal Milling Machine With CENegotiableMOQ: 1
-
ZX7550CW Universal Milling Machinery Cheap Milling Drilling Machine With CENegotiableMOQ: 1
-
XA7150 Bed-type Conventional Vertical Universal Bench Milling MachineNegotiableMOQ: 1
Specification | ZAY7032G | ZAY7040G | ZAY7045G | ||||||
Drilling capacity | Φ32mm | Φ40mm | Φ45mm | ||||||
Face milling capacity | Φ63mm | Φ80mm | Φ80mm | ||||||
End milling capacity | Φ20mm | Φ32mm | Φ32mm | ||||||
Distance from spindle nose to table | 440mm(optional 670mm) | ||||||||
Min.distance from spindle axis to column | 272.5mm | ||||||||
Spindle travel | 130mm | ||||||||
Spindle taper | MT3 or R8 | MT4 or R8 | |||||||
Step of spindle speed | 6 steps | ||||||||
Range of spindle speed 50Hz | 80-1250 r.p.m | ||||||||
60Hz | 95-1500 r.p.m | ||||||||
Swivel angle of headstock (horizontal) | 360° | ||||||||
(vertical) | ±90° | ||||||||
Table size | 800×240mm | ||||||||
Forward and backward travel of table | 175mm | ||||||||
Left and right travel of table | 500mm | ||||||||
Motor Power | 0.75kw | 1.1kw | 1.5kw | ||||||
N.W/G.W | 315/365kgs | 318/368kgs | |||||||
Packing size | 770×880×1160mm | ||||||||
Loading amount/20" container | 36pcs | ||||||||
