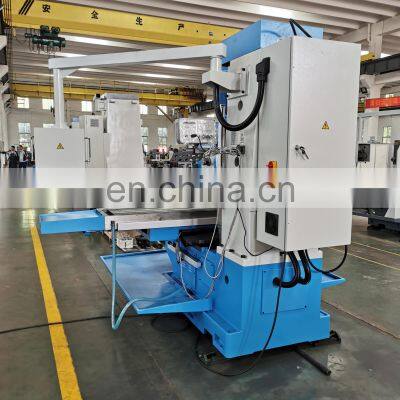

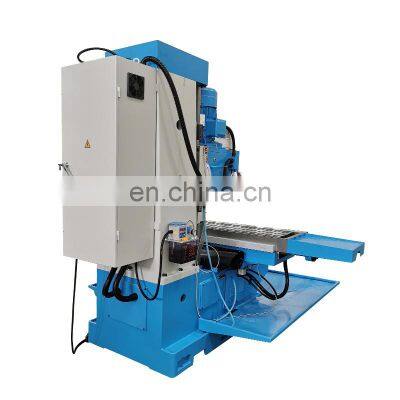

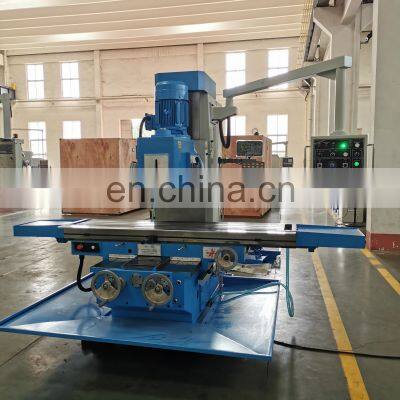

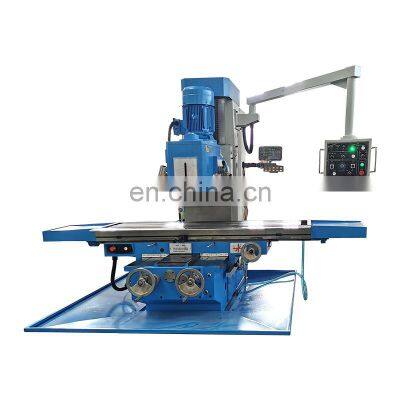

XA7150 bed-type conventional vertical universal bench milling machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
table milling machine Metal Universal Vertical Turret Milling Machine X6323 with CE
-
Manual Mills Mini Universal Milling Machine ZX6350ZA with X/Y/Z Axis Auto-feeding
-
ZX6350ZA Manual universal milling machines made in China for metal milling function
-
ZX50C Dia.50mm hot sales combination lathe milling drilling machines milling for metalworking
-
high precision XL5032 drill press machine vertical for metal working
-
XL6436CL high rigid metal universal milling machine
Product Description
Product Description
Machine Features of Milling Machine:
1)MEEHANITE cast-iron construction.
2)Rectangular guideways Y,Z axis with high rigidity.
3)Hardened and ground table surface.
4)Spindle is driven by gears.
5)12 steps spindle speed, the machine is applied to heavy cut.
6)Headstock swivels ±30°
Specification | XA7150 | ||
Table size | 2000×400 mm | ||
Table travel | 1500/620mm | ||
T-slot no/width | 3/18mm | ||
T-slot distance | 100mm | ||
Spindle taper | ISO50 | ||
Distance from spindle to table surface | 100mm~650mm | ||
Distance from spindle axis to column guideway | 600mm | ||
Spindle speed range | 66-1440r.p.m | ||
Headstock swivel | ±30° | ||
Spindle quill | 105mm | ||
Table feed | normal | 20-2000mm/min | |
rapid | 3100mm/min | ||
Main motor | 6.5/8KW | ||
Feed motor | 2.8KW,18N/m | ||
Coolant motor | 90W | ||
Overall dimension | 3000×2420×2340 | ||
Net weight | 4500kg | ||
Max. Load of table | 2000Kg | ||
