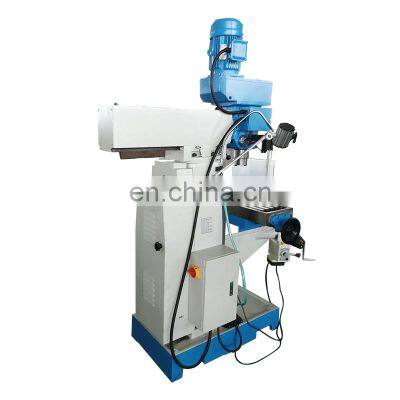

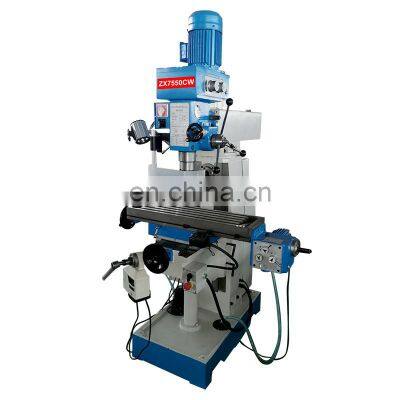

ZX7550CW Universal milling machinery cheap milling drilling machine with CE

Name: ZX7550CW Universal milling machinery cheap milling drilling machine with CE
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

ZX7550CW Features:

Rectanger guide way,better stbility Headstocck swivels ±90º Worktable turns ±45º Easily changing from vertical milling to horizontal milling Worktable can be automatically feed in X axis ,and equipped with "quick-reverse"unit to realize high efficiency in working ZX7550CW Vertical milling is gear-driven ;Horizontal milling is belt-driven.

ZX7550ZW Vertical milling spindle can be auto feeding based on ZX7550CW

Specification	ZX7550CW	ZX7550ZW	ZX5325C
Max.drilling dia	Φ50mm	Φ50mm	Φ50mm
Max.horizontal milling dia.	Φ100	Φ100	Φ100mm
Max.vertical milling dia.	Φ25mm	Φ25mm	Φ32mm
Max.boring dia.	Φ120mm	Φ120mm	Φ100mm
Spindle taper	ISO30, R8, MT4
Spindle speeds range)	V:115- 1750rpm(8) H:60-1350(8)	V:60-1500rpm(8) H:60-1350(8)	115-1750rpm
Spindle travel	120mm	120mm	125mm
Table size	240×1000mm	240×1000mm	260×1000mm
Table travel	400×230×350mm	400×230×350mm	600×280×380mm
Main motor power (V/H)	V:0.85/1.5 H:2.2mm	V:1.5kw H:1.5kw	0.85/1.5mm
Packing size	1140×1120×2220mm 1140×1220×2220	1140×1120×2220mm 1140×1220×2220mm	1140×1200×2220mm 1140×1450×2220mm
N.W/G.W	850kg/1000kg	900kg/1050kg	700kg/760kg

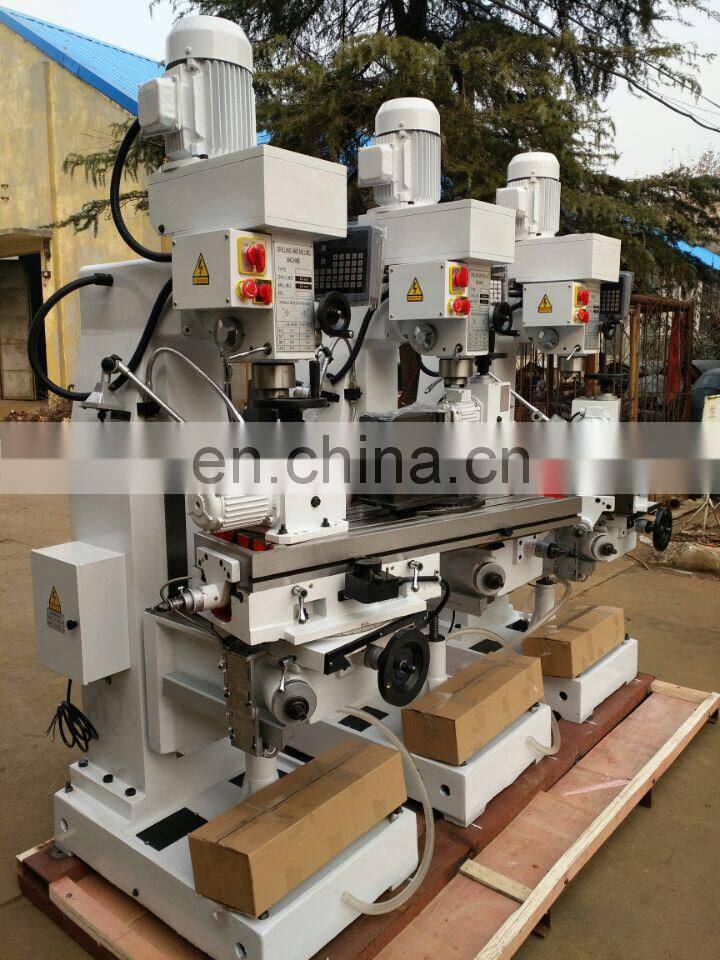

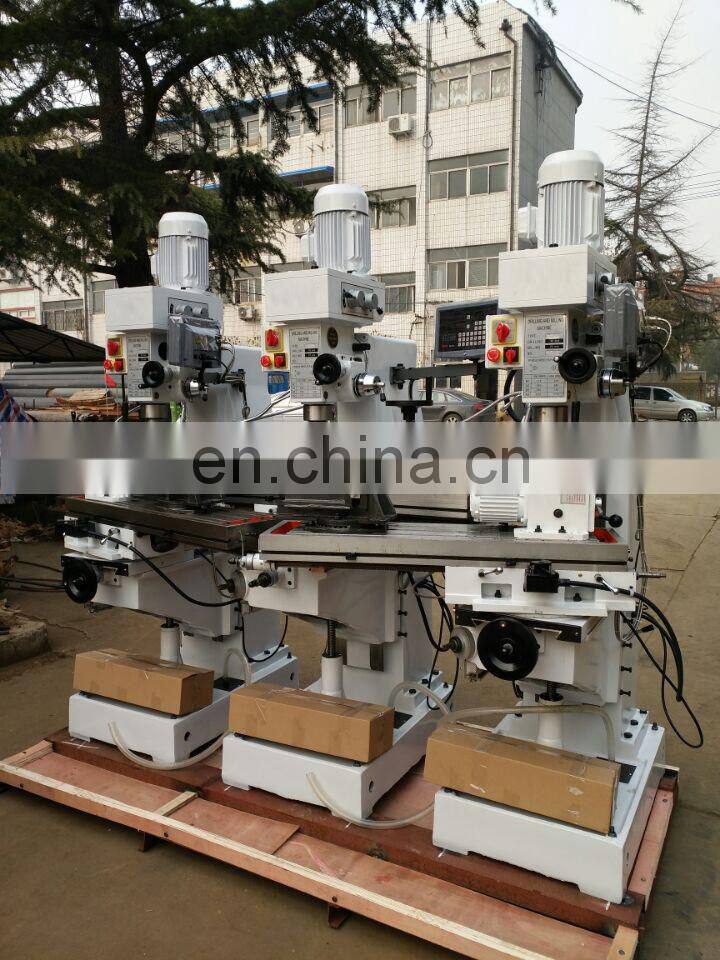

Machine Details
