Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > CD6260C Manual Lathe Machine Price Manufacturer for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CD6260C 1500mm Chinese Manual Metal Lathe Machine Price for SaleNegotiableMOQ: 1 -
CQ6280Cx3000 China Universal Manual Lathe Machine for Metal WorkNegotiableMOQ: 1
-
CS6266Cx1000 mm China Manual Lathe Machine Tools for Metal WorkNegotiableMOQ: 1
-
CS6266Cx3000 mm China Heavy Duty Manual Metal Lathe Machine for SaleNegotiableMOQ: 1
-
CS6266Cx2000 Conventional Manual Lathe Machine ManufacturerNegotiableMOQ: 1
Features:
Super voice frequency heated bedways cheap cnc lathe machine
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Main Technical Data
MODEL | CD6236B | CD6240B | CD6250B | CD6260B | |||
CD6236C | CD6240C | CD6250C | CD6260C | ||||
Max.swing over bed | 360mm(14") | 400mm(16") | 500mm(19-3/5") | 600mm(23-3/5") | |||
Max.swing over cross slide | 185mm(7-1/4") | 225mm(9") | 325mm(13") | 360mm(14") | |||
Max.swing over gap | 490mm(20") | 550mm(21-1/2") | 630mm(25") | 730mm(29") | |||
Effective length of gap | 260mm(10-1/4") | ||||||
Center Distance | 1000/1500/2000/3000mm(40"/60"/80"/120") | ||||||
Bed Width | 330mm(13") | ||||||
Spindle hole | 65mm(2-3/5")/80mm(3-3/5") | ||||||
Spindle nose | ISO-D8 | ||||||
Spindle speed(Number) | (15steps)24-1600/24-1600rpm(15steps) | ||||||
Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | ||||||
Cross feeds range | 66kinds 0.036-2.019mm/rev | ||||||
Metric threads range | 66kinds 0.5-28 | ||||||
Inch threads range | 66kinds 1-56inch | ||||||
Moudle threads range | 33kinds 0.5-3.5mπ | ||||||
Diametral threads range | 33kinds 8-56D.P | ||||||
Max.travel of top slide | 130mm(5") | ||||||
Max.travel of cross slide | 300mm(12") | ||||||
Max.size of toolshank | 20x20mm/25x25mm | ||||||
Dia.of tailstock sleeve | 65mm(2-1/2") | ||||||
Taper of tailstock sleeve | MT5 | ||||||
Max.travel of tailstock | 120mm(4-3/4") | ||||||
Main drive motor | 5.5kw | 7.5kw | |||||
Rapid traverse motor | 250w | ||||||
Coolant pump motor | 125w | ||||||
Center Distance(1000mm) | 2450x1150x17500mm(96x46x71") | ||||||
Center Distance(1500mm) | 2950x1150x17500mm(115x46x71") | ||||||
Center Distance(2000mm) | 3450x1150x17500mm(137x46x71") | ||||||
Center Distance(1000mm) | 1520/2170kg 1350/2000kg | 1560/2210kg 1640/2290kg | 1600/2250kg 1700/2350kg | 1640/2290kg 1800/2500kg | |||
Center Distance(1500mm) | 1750/2390kg 1850/2550kg | 1770/2410kg 1890/2590kg | 1830/2470kg 1910/2610kg | 1870/2530kg 2010/2760kg | |||
Center Distance(2000mm) | / 2090/2860kg | 2010/2780kg 2090/2860kg | 2070/2820kg 2150/2920kg | 2130/2860kg 2250/3070kg | |||

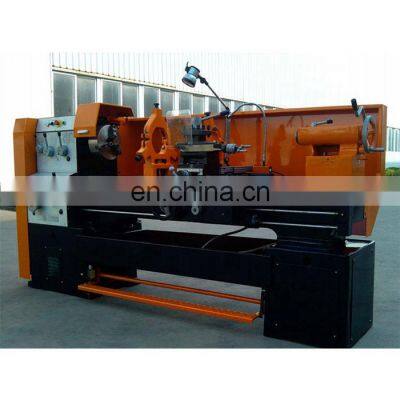

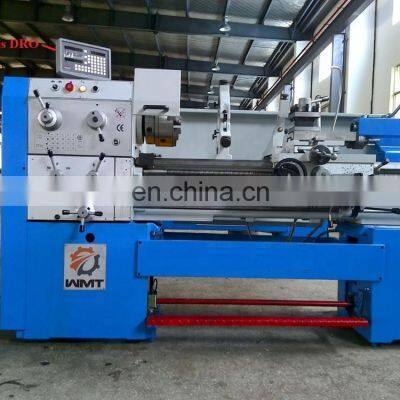

Details about the machine:
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
