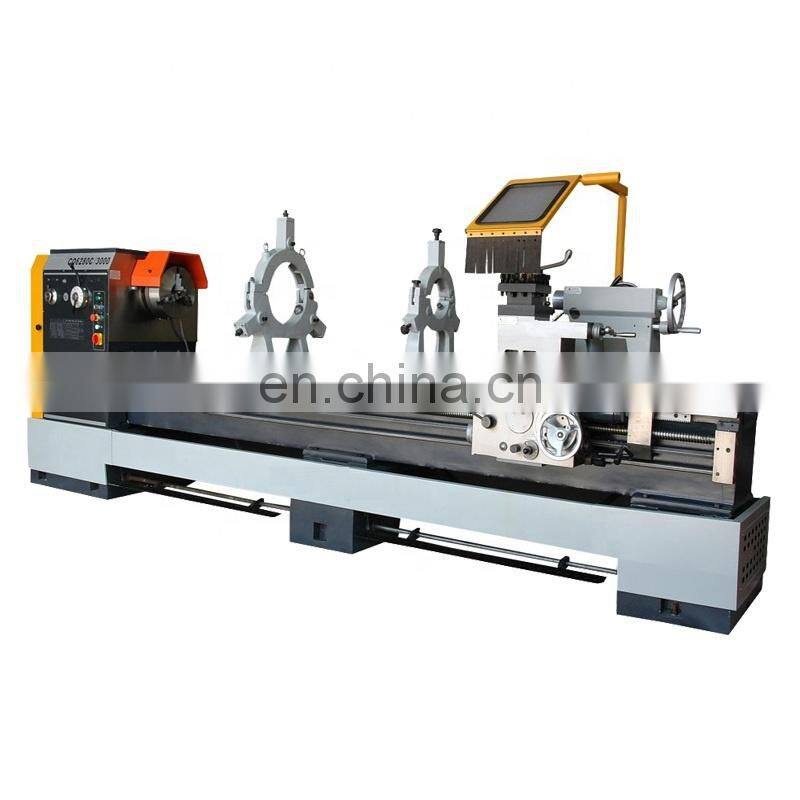

CQ6280B 800mm China Metal Lathe Machine Manufacturer for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C0636B Mini Metal Lathe Small Lathe Machine Horizontal Precision Metal Semi Automatic Lathe Machine With CENegotiableMOQ: 1 -
C0636B Mini Metal Lathe Small Lathe Machine Horizontal Precision Metal Semi Automatic Lathe Machine With CENegotiableMOQ: 1
-
WMT Mini HQ500 Multi-purpose Lathe Machine Combined Milling FunctionNegotiableMOQ: 1
-
DIY0816 DIY Mini Machine Price for Hobby UseNegotiableMOQ: 1
-
CS6240 China Small Manual Lathe Machine for Metal WorkNegotiableMOQ: 1
Product Description
Features:
Introduction:
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
Specification | CQ6280B | CQ6280C | ||
Capacity | Max. swing dia.over bed | Φ 800mm(32") | Φ 800mm(32") | |
Max. swing dia. in gap | 1000mm(40") | 1000mm(40") | ||
Max. swing dia. over slide | 560mm(22") | 560mm(22") | ||
Max. workpiece length | 2000/3000mm(80"/120") | 2000/3000mm(80"/120") | ||
Spindle | Spindle bore diameter | Φ 82mm(3") | Φ 105mm(4") | |
Type of spindle nose | ISO 702/ⅡNo.8 com-lock type | |||
Spindle speed | 24 steps | 12 steps | ||
9-1600rpm | 30-1400rpm | |||
Spindle motor power | 7.5kw | |||
Tailstock | Diameter of quill | Φ 90mm (3-1/2") | ||
Max. travel of quill | 150mm(6") | |||
Taper of quill(Morse) | MT5 | |||
Turret | Tool O.D. size | 25mm×25mm(1"×1") | ||
Feed | Max. X travel | 145mm(5-3/4") | ||
Max. Z travel | 320mm(13") | |||
X feed range | 93 kinds 0.028-6.43mm/r | 65 kinds 0.063-2.52mm/r | ||
Z feed range | 93 kinds 0.012-2.73 mm/r | 65 kinds 0.027-1.07mm/r | ||
Metric threads | 48 kinds 0.5-224mm | 22 kinds 1-14mm | ||
Inch threads | 48 kinds 72-1/4t.p.i | 25 kinds 28-2 t.p.i | ||
Module threads | 42 kinds 0.5-112πmm | 18 kinds 0.5-7πmm | ||
Diametric pitch threads | 42 kinds 56-1/4 t.p.i.π | 24 kinds 56-4 t.p.i.π | ||
Other | Length | 3365/4365mm | ||
Width | 1340mm | 1340mm | ||
Height | 1430mm | 1490mm | ||
N.W/ G.W | 3300/3700kgs | 3000/3200kgs | ||

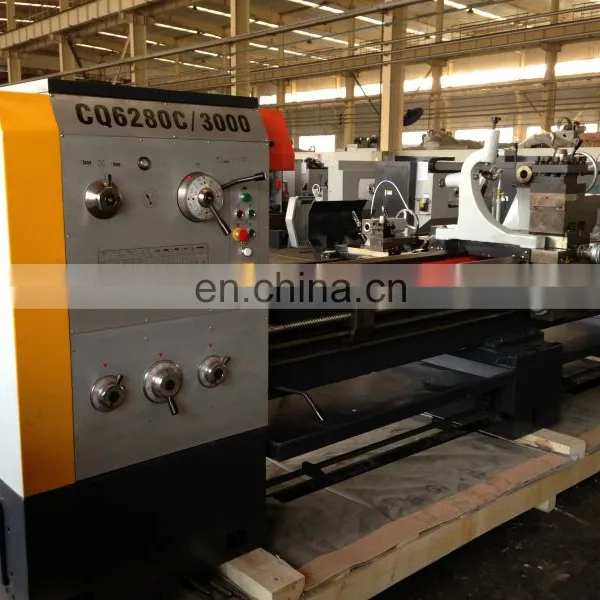

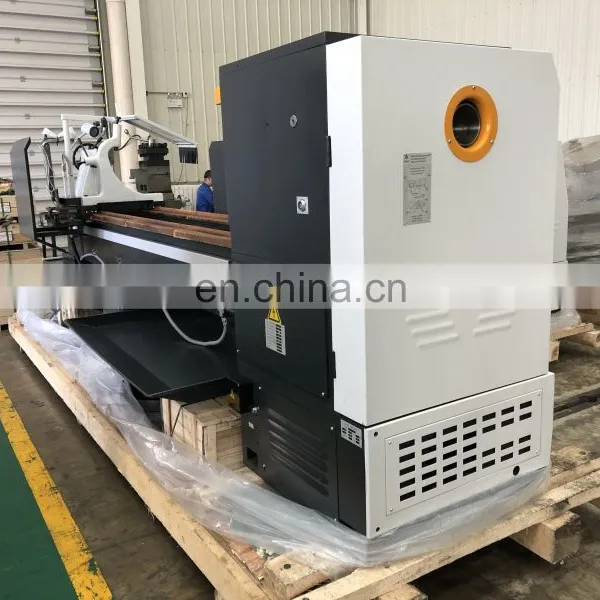

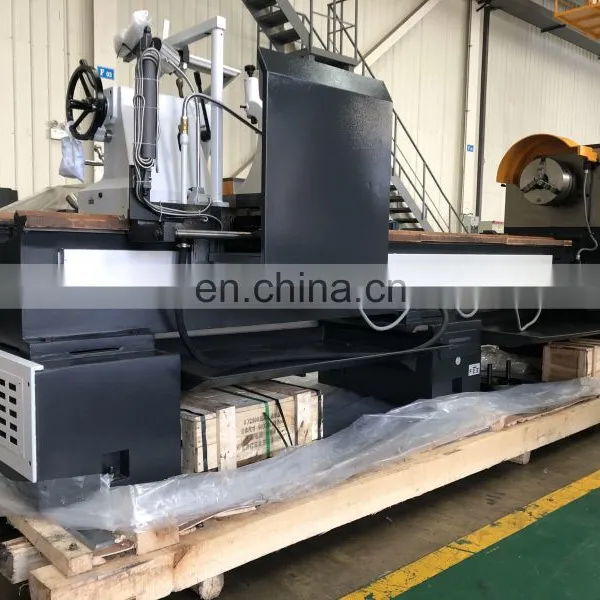

Machine details：
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
