WMT Mini HQ500 Multi-purpose Lathe Machine Combined Milling Function
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
DIY0816 DIY Mini Machine Price for Hobby Use
-
CS6240 China Small Manual Lathe Machine for Metal Work
-
CS6240 1000mm Length Small Manual Lathe Machine for Sale
-
CS6250B Manual Lathe Machine Price for Sale
-
CS6250Bx2000 mm Chinese Manual Lathe Machine Used for Metal Work
-
CS6250B 500 mm Max.swing Over Bed Manual Lathe Machine Metal for Sale
Product Description
Product Description
Combined Lathe Machine Main Features:
· Compact, versatile combination machine.
· Adjustable height drill/mill head increase capacity.
· Fine feed handle and clutch for precision milling.
· Headstock provides two step of feeds.
· Spindle is supported by high precision bearing.
· T-slot cross slide.
· Adjustable grids for the slideway.
· Power longitudinal feed allows threading.
· High precision chuck.
Specifications | ||
MODEL | MP500/ MP800(HQ500/HQ800) | |
TURNING | Swing over bed | 420mm(16-5/9") |
Distance between centers | 500mm/ 800mm(20"/31-1/2") | |
Max. longitudinal travel | 440mm/740mm(17-1/3"/29-1/8") | |
Max. cross travel | 200mm(7-7/8") | |
Taper of spindle | MT4 | |
Spindle hole | φ28mm(1-1/9") | |
Step of spindle speed | 7 steps | |
Range of spindle speed | 160-1360rpm | |
Barrel travel | 70mm(2-3/4") | |
Taper of center | MT3 | |
Metric thread range | 0.2-6mm | |
Inch thread range | 4-120T.P.I | |
Longitudinal range of automatic feeding | 0.05-0.35mm/ 0.002-0.014" | |
Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014" | |
DRILLING & MILLING | Max. drilling capacity | φ22mm(7/8") |
Worktable size (L×W) | 475×160mm(18/1-2"×6-2/7) | |
Max. end mill | φ28mm(1-1/9") | |
Max. face mill | φ80mm(3-1/7") | |
Distance between spindle center and column | 285mm(11-2/9") | |
Distance between spindle and worktable | 306mm(12") | |
Headstock travel of up and down | 110mm(4-1/3") | |
Spindle taper | MT3 | |
Step of spindle speed | 16steps | |
Range of spindle speed | 120-3000r.p.m | |
Swivel degree of headstock | ±360° | |
MOTOR | Motor power | 0.55kw |
SHIPMENT DATA | Packing size | 1130×580×1100mm |
N. weight/G .weight | 245kg/280kg | |
Loading amount | 40pcs/20’container |

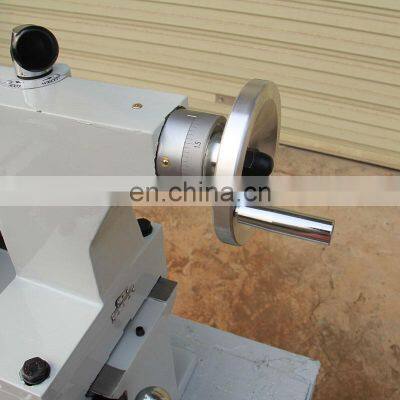

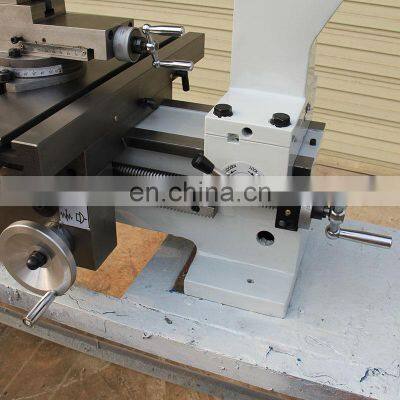

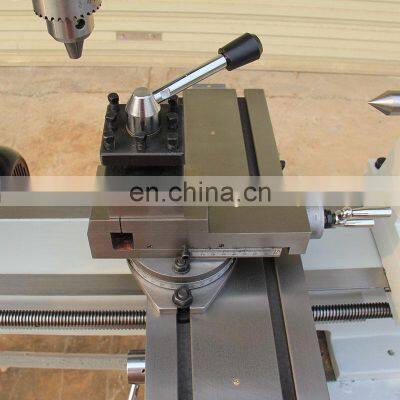

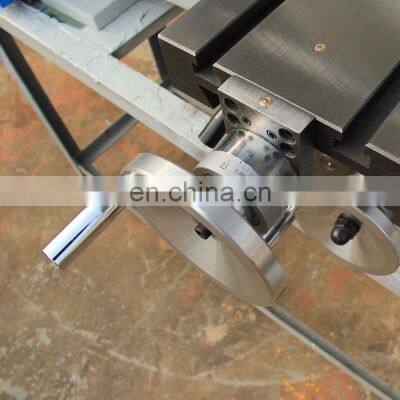

Detailed Images
You may like machines as below:
Manual milling machine
Small slotting machine
Surface grinding machine
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
