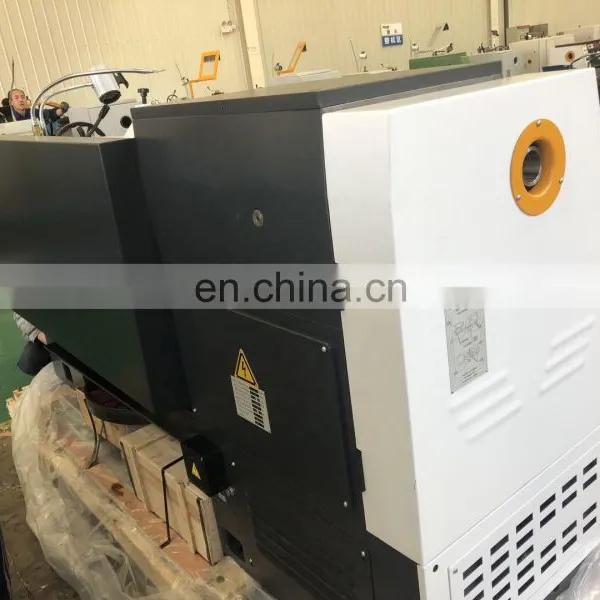

CS6240 1000mm Length Small Manual Lathe Machine for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CS6250B Manual Lathe Machine Price for SaleNegotiableMOQ: 1 -
CS6250Bx2000 mm Chinese Manual Lathe Machine Used for Metal WorkNegotiableMOQ: 1
-
CS6250B 500 mm Max.swing Over Bed Manual Lathe Machine Metal for SaleNegotiableMOQ: 1
-
CS6266B 1500 mm Heavy Duty Lathe Machine for SaleNegotiableMOQ: 1
-
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal WorkNegotiableMOQ: 1
Product Description
Lathe machine Features:
Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Main specification
Specification |
Unit |

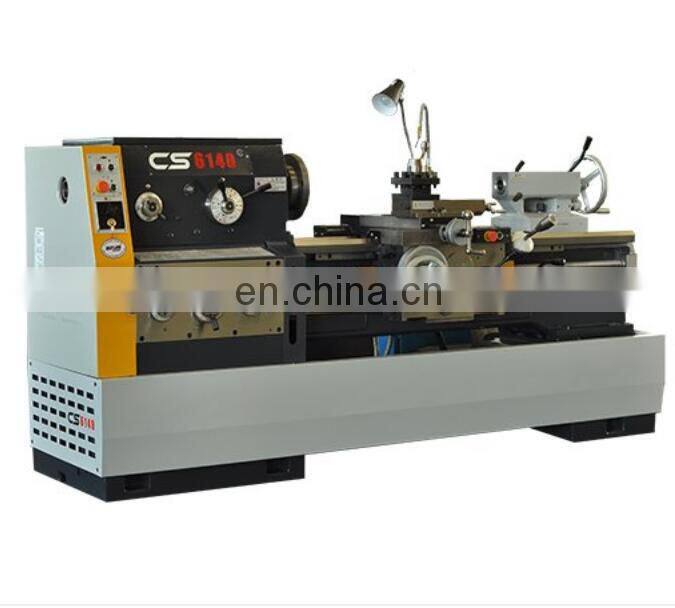

CS6140 /CS6240(with gap) |
Max swing over bed |
mm |
φ400 |
Max swing over slide |
mm |
φ220 |
Max workpiece length |
mm |
750/1000/1500/2000/3000 |
Spindle thru-hole |
mm |
φ52 |
Spindle nose |
CS6140:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type |
|
Spindle speed |
r/min |
24 step 9-1600 |
Spindle motor |
kW |
7.5 |
Quill dia./travel |
mm |
φ75/150 |
Taper of center |
MT |
5 |
Number of station/ |
4/25X25 |
|
Tool section |
4 |
|
Max X-axis travel |
mm |
145 |
Max Z-axis travel |
m/min |
320 |
X-axis feed |
mm/r |
93 sorts 0.028-6.43 |
Z-axis feed |
mm/r |
93 sorts 0.012-2.73 |
Metric thread |
mm |
48 sorts 0.5-224 |
Inch thread |
t.p.i |
48 sorts 72-1/4 |
Module thread |
πmm |
42 sorts 0.5-112 |
DP thread |
t.p.i.π |
42 sorts 56-1/4 |
Coolant pump motor |
kW |
0.06 |
Machine length |
mm |
2382/2632/3132/3632/4632 |
Machine width |
mm |
975 |
Machine height |
mm |
1230 |
Machine weight |
kg |
1795/2050/2250/2450/2850 |
